Product Description:

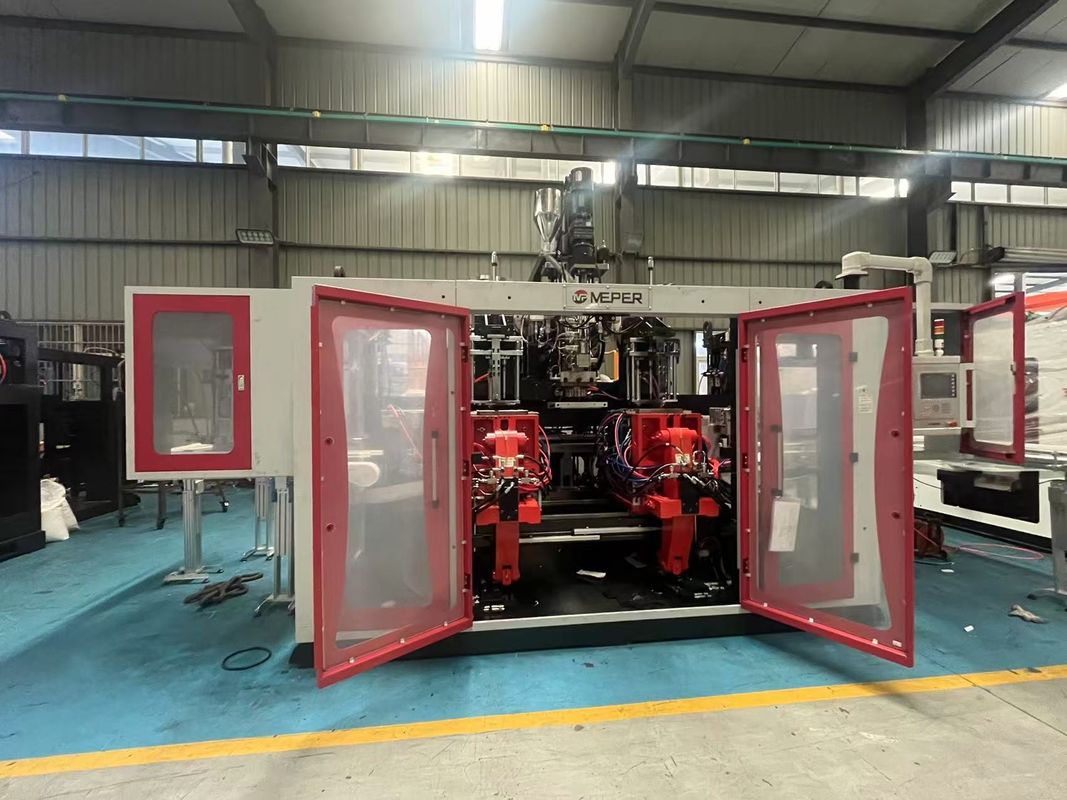

MP plastic blow molding machine is designed for processing a wide range of plastic hollow products made from high molecule materials. It is capable of producing hollow items in sizes ranging from 5 milliliters to 100 liters. The variety of products that can be manufactured using this machine includes bottles, pots, jars, barrels, toys, tool boxes, bed boards, desk boards, chairs, and auto parts, among others.
One of the key features of the MP plastic blow molding machine is its ability to work with different materials such as PE, PP, PVC, PA, PC, PS, and EVA. This versatility allows for greater flexibility in production, ensuring that various types of plastic products can be manufactured with precision and efficiency.
Additionally, the MP plastic blow molding machine is known for its reliable performance and its capability to deliver high-quality results. Whether you are producing small containers or large industrial parts, this machine can provide the perfect processing solution to meet your specific needs.
Features:
a) The extruding device employs a variable frequency motor to meet the needs of screw rotation adjustments during the blowing process. With a high slenderness ratio, the screw is capable of processing various materials efficiently, offering strong plasticizing ability, high production output, and low energy consumption. The barrel is equipped with a resistance heater that is computer-controlled, ensuring quick, stable, and uniform heating.
b) By fitting different heads in a combined extrusion system between two extrusion machines, products can be blown with a single view strip line or double layers.
c) The mould clamping device features a toggle type design and linear guider. With a double station setup, the mould platen moves faster and more stably.
d) The hydraulic oil loop has been improved with a design that prioritizes power saving, while achieving rapid and stable operation.
e) The installation and maintenance of hydraulic elements are made convenient on this machine, which includes a removable and mobile oil tank for easy access.
f) This entire machine is computer-controlled, with its hydraulic system employing double proportional control. It also includes fault automatic alarm, ensuring reliable operations, high automation levels, and the ability to store data for up to 40 sets of moulds.
g) Three operation modes - "Manual," "Semi Auto," and "Full Auto" - can be selected as needed.
h) The safety door is equipped with electric and mechanical safety devices to prevent mould closing when the door is open, enhancing overall safety and reliability during operations.
i) This machine offers two blowing functions: straight cutting and oblique cutting.
j) oblique blowing function
Technical Parameters:
| System |
Item |
Unit |
Basic Parameter |
|
Basic specifications
|
Applicable materials |
|
PE PP |
| Max product volume |
L |
10 |
| Number of heads |
SET |
3 |
|
Machine dimension
(LxWxH)
|
M |
3.5X5.6X2.65 |
| Machine weight |
TON |
13 |
| |
|
Mould clamping system
|
Mould clamping force |
KN |
150 |
| Platen opening strokes |
MM |
240-630 |
| Plate stroke |
MM |
600 |
| Max mould sizes(WxH) |
MM |
580x450 |
| |
|
Extrusion system
|
Screw diameter |
MM |
90 |
| Screw slenderness ratio |
L/D |
26 |
| Plasticizing ability (HDPE) |
KG/H |
140 |
| Screw heating stage/zone |
Zone |
4 |
| Screw heating power |
KW |
20 |
| Screw fan power |
KW |
0.56 |
| Extrusion motor power |
KW |
45 |
| |
|
|
Head
|
Head heating stage/zone |
Zone |
15 |
| Head heating power |
KW |
16.8 |
| |
|
Energy consumption
|
Total machine power |
KW |
117 |
| Oil motor power |
KW |
29 |
| Air pressure |
MPA |
0.6-1 |
| Compression air volume |
M3/min |
1.2 |
| Cooling water volume |
L/min |
1000 |
Applications:
Extrusion Molding Applications
Extrusion molding machines play a vital role in manufacturing by producing continuous profiles with a fixed cross-section. They find extensive use in various industries for different applications:
1. Plastic Industry
- Pipes & Tubes – PVC, HDPE, and PP pipes for plumbing, drainage, and electrical conduits.
- Sheets & Films – Packaging films, agricultural films, and thermoforming sheets.
- Profiles – Window frames, door seals, and decorative trims.
- Filaments & Fibers – Synthetic fibers for textiles, ropes, and 3D printing filaments.
- Cables & Wires – Insulation coating for electrical wires and cables.
2. Rubber Industry
- Tire Manufacturing – Rubber strips for tire treads and sidewalls.
- Seals & Gaskets – Automotive and industrial rubber seals.
- Hoses & Tubing – Fuel hoses, hydraulic tubes, and medical tubing.
3. Food Processing
- Extruded Snacks – Puffed cereals, pasta, and pet food.
- Confectionery – Licorice, chewing gum, and candy bars.
- Textured Protein – Plant-based meat alternatives.
Would you like more details on a specific type of extrusion application?
4. Pharmaceutical Industry
- Drug Delivery Systems – Extruded tablets and biodegradable implants.
- Medical Tubing – Catheters and IV tubes.
5. Construction & Building Materials
- Decking & Fencing – Composite wood-plastic profiles.
- Insulation Materials – Foam boards and weather stripping.
- Aluminum Extrusions – Structural frames, railings, and heat sinks.
6. Automotive & Aerospace
- Lightweight Components – Plastic and composite trim parts.
- Rubber & Plastic Seals – Door seals, gaskets, and vibration dampers.
- Fuel Lines & Ducts – High-temperature-resistant tubing.
7. Recycling & Sustainability
- Recycled Plastic Products – Turning post-consumer plastics into new profiles.
- Biodegradable Materials – Extruding PLA (polylactic acid) for eco-friendly packaging.
Advantages of Extrusion Molding
- High Efficiency – Continuous production with minimal downtime.
- Versatility – Ability to process various materials (plastics, rubber, food, etc.).
- Cost-Effective – Low waste and high-volume output.
Support and Services:
Our Product Technical Support and Services for the Extrusion Molding Machine include:
- Installation assistance
- Troubleshooting guidance
- Maintenance recommendations
- Upgrades and updates
- Training and user manuals
