Product Description:

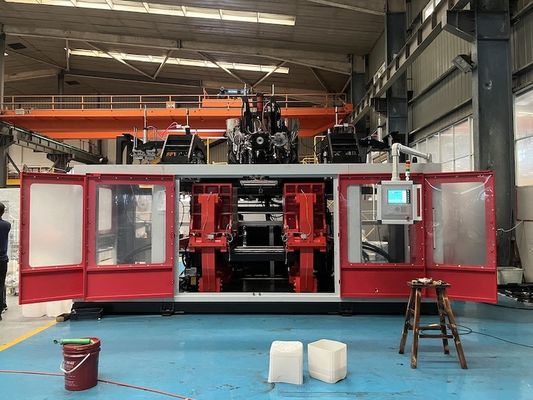

The MP Plastic Blow Molding Machine is designed for processing various plastic hollow products made from high molecular materials. This machine is capable of producing hollow items ranging in size from 5 milliliters to 100 liters. The wide array of products that can be manufactured includes bottles, pots, jars, barrels, toys, tool boxes, bed boards, desk boards, chairs, and auto parts, among others.
One of the key features of this machine is its ability to work with a variety of materials such as PE, PP, PVC, PA, PC, PS, and EVA. Whether you need to blow-mold different plastic materials, this machine can deliver outstanding results. It is known for providing a perfect manufacturing process with consistent quality output.
Features:
a) Extruding device adopts variable frequency motor which can satisfy the requirements of rotation change of screw during blowing process. Screw with big slenderness ratio can be used to process many kinds of materials and has strong plasticizing ability, high production and low energy consumption. The barrel adopts resistance heater which is controlled by computer and heats quickly, stably, and equably.
b) By installing different head in combined extrusion system between two extrusion machines, they can blow products with view strip line or double layers.
c) Mould clamping device adopts toggle type and linear guider. Double station, the speed of mould platen moving more quickly and stably.
d) Improved design of hydraulic oil loop. Power saving, rapid and stable.
e) Installation and maintenance of hydraulic elements are convenient. Equipped with removable and mobilizable oil tank.
f) The whole machine is controlled by computer. The hydraulic system adopts double proportional control. This machine has fault automatic alarm, reliable operation, high automation, and data memory of 40 sets of moulds.
g) Three operation modes-“Manual”, “Semi Auto”, “Full Auto”, are allowed to select.
h) Safety door adopts electric and mechanical safety devices (no mould closing happens when safety door opens) which make operation safe and reliable.
i) This machine has two blowing functions of straight cutting and oblique cutting.
j) Oblique blowing function.
Technical Parameters:
| System |
Item |
Unit |
Basic Parameter |
|
Basic specifications
|
Applicable materials |
|
PE PP |
| Max product volume |
L |
50 |
| Number of heads |
SET |
1 |
|
Machine dimension
(LxWxH)
|
M |
6X7X4 |
| Machine weight |
TON |
28 |
| |
|
Mould clamping system
|
Mould clamping force |
KN |
300 |
| Platen opening strokes |
MM |
450-1050 |
| Plate stroke |
MM |
750 |
| Max mould sizes(WxH) |
MM |
720x750 |
| |
|
Extrusion system
|
Screw diameter |
MM |
110 |
25 |
| Screw slenderness ratio |
L/D |
26 |
22 |
| Plasticizing ability (HDPE) |
KG/H |
218 |
3 |
| Screw heating stage/zone |
Zone |
5 |
2 |
| Screw heating power |
KW |
21 |
1.4 |
| Screw fan power |
KW |
0.56 |
|
| Extrusion motor power |
KW |
94.2 |
1.5 |
| |
|
|
Head
|
Head heating stage/zone |
Zone |
7 |
| Head heating power |
KW |
25 |
| |
|
Energy consumption
|
Total machine power |
KW |
200 |
| Oil motor power |
KW |
37 |
| Air pressure |
MPA |
0.6-1 |
| Compression air volume |
M3/min |
3 |
| Cooling water volume |
L/min |
1000 |
Applications:
Extrusion molding machines play a pivotal role in manufacturing processes by producing continuous profiles with a consistent cross-section. These machines find various applications in several industries:
1. Plastic Industry
- Pipes & Tubes – PVC, HDPE, and PP pipes for plumbing, drainage, and electrical conduits.
- Sheets & Films – Packaging films, agricultural films, and thermoforming sheets.
- Profiles – Window frames, door seals, and decorative trims.
- Filaments & Fibers – Synthetic fibers for textiles, ropes, and 3D printing filaments.
- Cables & Wires – Insulation coating for electrical wires and cables.
2. Rubber Industry
- Tire Manufacturing – Rubber strips for tire treads and sidewalls.
- Seals & Gaskets – Automotive and industrial rubber seals.
- Hoses & Tubing – Fuel hoses, hydraulic tubes, and medical tubing.
3. Food Processing
- Extruded Snacks – Puffed cereals, pasta, and pet food.
- Confectionery – Licorice, chewing gum, and candy bars.
- Textured Protein – Plant-based meat alternatives.
And that's only the beginning! Extrusion molding finds application across a wide range of industries, from pharmaceuticals to construction and automotive sectors.
Advantages of Extrusion Molding
- High Efficiency – Continuous production with minimal downtime.
- Versatility – Ability to process various materials (plastics, rubber, food, etc.).
- Cost-Effective – Low waste and high-volume output.
FAQ:
Q: What is the brand name of the Extrusion Molding Machine?
A: The brand name of the Extrusion Molding Machine is MEPER.
Q: What is the model number of the Extrusion Molding Machine?
A: The model number of the Extrusion Molding Machine is MP110FD.
Q: Where is the Extrusion Molding Machine manufactured?
A: The Extrusion Molding Machine is manufactured in China.
Q: What certifications does the Extrusion Molding Machine have?
A: The Extrusion Molding Machine is certified with CE/ISO9001:2008.
Q: What is the minimum order quantity for the Extrusion Molding Machine?
A: The minimum order quantity for the Extrusion Molding Machine is 1 set.
