Product Description:

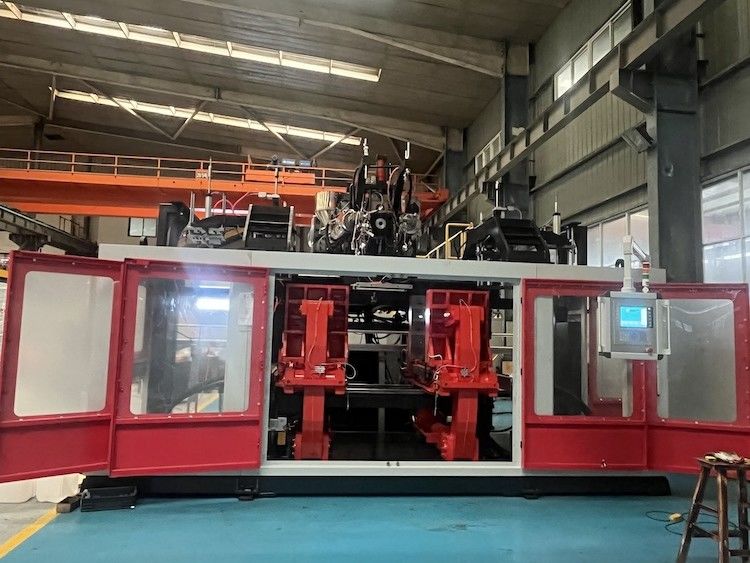

The MP plastic blow molding machine is designed to process a wide range of plastic hollow products with high molecular weight. It is capable of manufacturing hollow products ranging from 5 milliliters to 100 liters. The applications for this machine are diverse and include bottles, pots, jars, barrels, toys, tool boxes, bed boards, desk boards, chairs, and auto parts, among others.
This machine is versatile in that it can handle a variety of materials such as PE, PP, PVC, PA, PC, PS, and EVA. Additionally, it delivers high-quality processing for superior end products. With the ability to blow mold different types of plastics and provide excellent results, the MP plastic blow molding machine is ideal for various manufacturing needs.
Features:
a) The extruding device utilizes a variable frequency motor that can meet the rotational requirements of the screw during the blowing process. A screw with a high slenderness ratio is able to process various types of materials efficiently, with strong plasticizing capabilities, high production output, and low energy consumption. The barrel is equipped with a resistance heater controlled by a computer, providing quick, stable, and uniform heating.
b) By incorporating different heads in a combined extrusion system between two extrusion machines, it is possible to produce blown products with a visible strip line or double layers.
c) The mould clamping device features a toggle type and linear guider design. With a double station setup, the speed of the mould platen movement is faster and more stable.
d) Enhanced design of the hydraulic oil loop results in power savings, rapid operation, and stable performance.
e) Installation and maintenance of hydraulic elements are made convenient with a removable and mobile oil tank feature.
f) The entire machine is computer-controlled, with a hydraulic system employing double proportional control. It includes fault automatic alarm, ensuring reliable operation, high automation, and storage of data for up to 40 sets of moulds.
g) Three operation modes – "Manual", "Semi-Auto", and "Full Auto" – can be selected as desired.
h) The safety door incorporates both electric and mechanical safety devices to prevent mould closing in case the safety door opens, ensuring safe and reliable operation.
i) The machine offers two blowing functions: straight cutting and oblique cutting.
j) Oblique blowing function.
Technical Parameters:
| System |
Item |
Unit |
Basic Parameter |
|
Basic specifications
|
Applicable materials |
|
PE PP |
| Max product volume |
L |
50 |
| Number of heads |
SET |
1 |
|
Machine dimension
(LxWxH)
|
M |
6X7X4 |
| Machine weight |
TON |
28 |
| |
|
Mould clamping system
|
Mould clamping force |
KN |
300 |
| Platen opening strokes |
MM |
450-1050 |
| Plate stroke |
MM |
750 |
| Max mould sizes(WxH) |
MM |
720x750 |
| |
|
Extrusion system
|
Screw diameter |
MM |
110 |
25 |
| Screw slenderness ratio |
L/D |
26 |
22 |
| Plasticizing ability (HDPE) |
KG/H |
218 |
3 |
| Screw heating stage/zone |
Zone |
5 |
2 |
| Screw heating power |
KW |
21 |
1.4 |
| Screw fan power |
KW |
0.56 |
|
| Extrusion motor power |
KW |
94.2 |
1.5 |
| |
|
|
Head
|
Head heating stage/zone |
Zone |
7 |
| Head heating power |
KW |
25 |
| |
|
Energy consumption
|
Total machine power |
KW |
200 |
| Oil motor power |
KW |
37 |
| Air pressure |
MPA |
0.6-1 |
| Compression air volume |
M3/min |
3 |
| Cooling water volume |
L/min |
1000 |
Applications:
Extrusion molding machines are widely used in manufacturing to produce continuous profiles with a fixed cross-section. Some key applications across various industries include:
-
Plastic Industry
- Pipes & Tubes – PVC, HDPE, and PP pipes for plumbing, drainage, and electrical conduits.
- Sheets & Films – Packaging films, agricultural films, and thermoforming sheets.
- Profiles – Window frames, door seals, and decorative trims.
- Filaments & Fibers – Synthetic fibers for textiles, ropes, and 3D printing filaments.
- Cables & Wires – Insulation coating for electrical wires and cables.
-
Rubber Industry
- Tire Manufacturing – Rubber strips for tire treads and sidewalls.
- Seals & Gaskets – Automotive and industrial rubber seals.
- Hoses & Tubing – Fuel hoses, hydraulic tubes, and medical tubing.
-
Food Processing
- Extruded Snacks – Puffed cereals, pasta, and pet food.
- Confectionery – Licorice, chewing gum, and candy bars.
- Textured Protein – Plant-based meat alternatives.
Extrusion molding also finds applications in the pharmaceutical industry, construction materials, automotive, aerospace, recycling, and sustainability sectors.
Advantages of Extrusion Molding:
- High Efficiency – Continuous production with minimal downtime.
- Versatility – Ability to process various materials (plastics, rubber, food, etc.).
- Cost-Effective – Low waste and high-volume output.
FAQ:
Q: What is the brand name of the Extrusion Molding Machine?
A: The brand name is MEPER.
Q: What is the model number of the Extrusion Molding Machine?
A: The model number is MP110FD.
Q: Where is the Extrusion Molding Machine manufactured?
A: It is manufactured in China.
Q: What certifications does the Extrusion Molding Machine have?
A: It is certified with CE/ISO9001:2008.
Q: What are the payment terms for purchasing the Extrusion Molding Machine?
A: The payment terms accepted are L/C and T/T.
