Product Description:

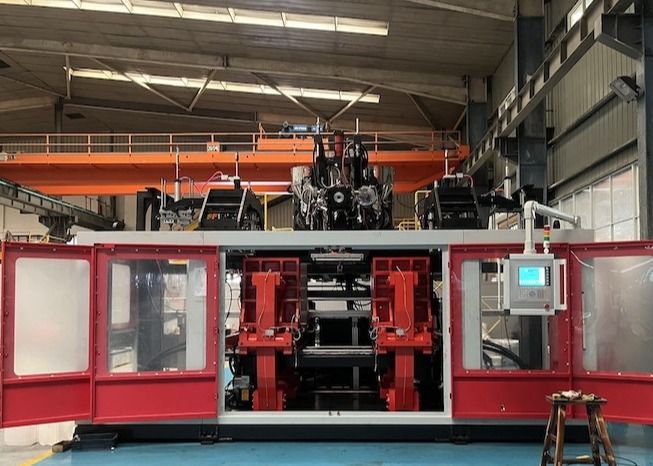

MP Plastic Blow Molding Machine
The MP plastic blow molding machine is specialized in processing all kinds of plastic hollow products with high molecules. It is designed for producing hollow products ranging from 5 milliliters to 100 liters. These products can include bottles, pots, jars, barrels, toys, tool boxes, bed boards, desk boards, chairs, and auto parts, among others.
This versatile machine is capable of blowing different materials such as PE, PP, PVC, PA, PC, PS, and EVA. It ensures high-quality production processes and can cater to a wide range of product needs.
Features:
a) The extruding device is equipped with a variable frequency motor that can meet the needs of adjusting the screw rotation during the blowing process. It is possible to use a screw with a high slenderness ratio to process various materials, demonstrating strong plasticizing ability, high production efficiency, and low energy consumption. The barrel features a resistance heater controlled by a computer, ensuring quick, stable, and even heating.
b) By incorporating different heads into a combined extrusion system between two extrusion machines, products with a visible strip line or double layers can be blown.
c) The mould clamping device adopts a toggle type and linear guider, offering a double station with faster and more stable movement of the mould platen.
d) An improved design of the hydraulic oil loop contributes to power savings, rapid operation, and stability.
e) The installation and maintenance of hydraulic elements are made convenient with an easily removable and mobile oil tank.
f) The entire machine is computer-controlled, featuring a hydraulic system employing double proportional control. It includes fault automatic alarm, ensuring reliable operation, high automation, and the ability to store data for up to 40 sets of moulds.
g) Three operation modes – "Manual", "Semi Auto", and "Full Auto" – are available for selection.
h) The safety door is equipped with both electric and mechanical safety devices to prevent mould closing while the safety door is open, enhancing the safety and reliability of the operation.
i) This machine provides two blowing functions: straight cutting and oblique cutting.
j) Oblique blowing function
Technical Parameters:
| System |
Item |
Unit |
Basic Parameter |
|
Basic specifications
|
Applicable materials |
|
PE PP |
| Max product volume |
L |
50 |
| Number of heads |
SET |
1 |
|
Machine dimension
(LxWxH)
|
M |
6X7X4 |
| Machine weight |
TON |
28 |
| |
|
Mould clamping system
|
Mould clamping force |
KN |
300 |
| Platen opening strokes |
MM |
450-1050 |
| Plate stroke |
MM |
750 |
| Max mould sizes(WxH) |
MM |
720x750 |
| |
|
Extrusion system
|
Screw diameter |
MM |
110 |
25 |
| Screw slenderness ratio |
L/D |
26 |
22 |
| Plasticizing ability (HDPE) |
KG/H |
218 |
3 |
| Screw heating stage/zone |
Zone |
5 |
2 |
| Screw heating power |
KW |
21 |
1.4 |
| Screw fan power |
KW |
0.56 |
|
| Extrusion motor power |
KW |
94.2 |
1.5 |
| |
|
|
Head
|
Head heating stage/zone |
Zone |
7 |
| Head heating power |
KW |
25 |
| |
|
Energy consumption
|
Total machine power |
KW |
200 |
| Oil motor power |
KW |
37 |
| Air pressure |
MPA |
0.6-1 |
| Compression air volume |
M3/min |
3 |
| Cooling water volume |
L/min |
1000 |
Applications:
Extrusion Molding Machines
Extrusion molding machines are widely used in manufacturing to produce continuous profiles with a fixed cross-section. Here are some key applications across various industries:
1. Plastic Industry
- Pipes & Tubes – PVC, HDPE, and PP pipes for plumbing, drainage, and electrical conduits.
- Sheets & Films – Packaging films, agricultural films, and thermoforming sheets.
- Profiles – Window frames, door seals, and decorative trims.
- Filaments & Fibers – Synthetic fibers for textiles, ropes, and 3D printing filaments.
- Cables & Wires – Insulation coating for electrical wires and cables.
2. Rubber Industry
- Tire Manufacturing – Rubber strips for tire treads and sidewalls.
- Seals & Gaskets – Automotive and industrial rubber seals.
- Hoses & Tubing – Fuel hoses, hydraulic tubes, and medical tubing.
3. Food Processing
- Extruded Snacks – Puffed cereals, pasta, and pet food.
- Confectionery – Licorice, chewing gum, and candy bars.
- Textured Protein – Plant-based meat alternatives.
Advantages of Extrusion Molding
- High Efficiency – Continuous production with minimal downtime.
- Versatility – Ability to process various materials (plastics, rubber, food, etc.).
- Cost-Effective – Low waste and high-volume output.
FAQ:
Q: What is the brand name of the Extrusion Molding Machine?
A: The brand name of the Extrusion Molding Machine is MEPER.
Q: What is the model number of the Extrusion Molding Machine?
A: The model number of the Extrusion Molding Machine is MP110FD.
Q: Where is the Extrusion Molding Machine manufactured?
A: The Extrusion Molding Machine is manufactured in China.
Q: What certifications does the Extrusion Molding Machine have?
A: The Extrusion Molding Machine is certified with CE/ISO9001:2008.
Q: What is the minimum order quantity for the Extrusion Molding Machine?
A: The minimum order quantity for the Extrusion Molding Machine is 1 set.
