Product Description:

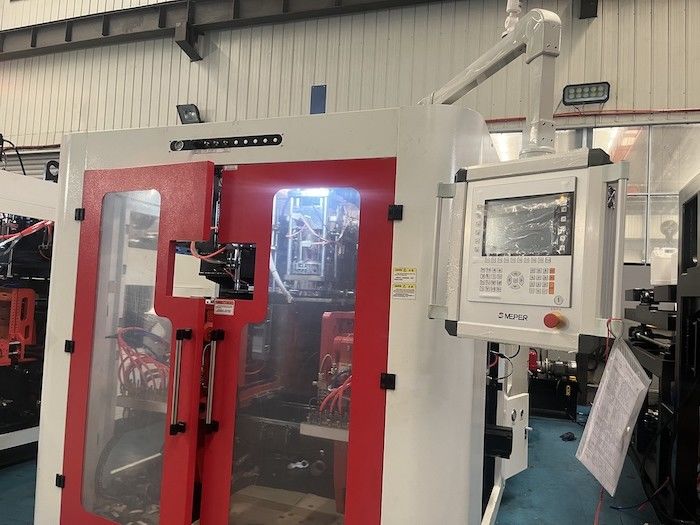

MP Plastic Blow Molding Machine is designed for processing a variety of plastic hollow products with high molecular weight. It is capable of producing hollow items ranging from 5 milliliters to 100 liters. The output includes bottles, pots, jars, barrels, toys, toolboxes, bed boards, desk boards, chairs, and automotive parts, among others.
This machine is versatile as it can handle different materials such as PE, PP, PVC, PA, PC, PS, and EVA. It is equipped to deliver precise and efficient blow molding processes for a wide range of applications.
Features:
a) Extruding device adopts a variable frequency motor which can meet the requirements of the screw's rotation change during the blowing process. A screw with a high slenderness ratio can be used to process various materials and has excellent plasticizing ability, high production capacity, and low energy consumption. The barrel utilizes a resistance heater controlled by a computer to heat quickly, evenly, and steadily.
b) By incorporating different heads in a combined extrusion system between two extrusion machines, products with visible strip lines or double layers can be blown.
c) The mold clamping device features a toggle type and linear guider. With a double station, the mold platen moves faster and more steadily.
d) An improved hydraulic oil loop design results in power savings, rapidity, and stability.
e) The installation and maintenance of hydraulic elements are convenient. The machine is equipped with a removable and mobile oil tank.
f) The entire machine is computer-controlled. The hydraulic system utilizes double proportional control, providing fault automatic alarms, reliable operation, high automation, and the ability to store data for up to 40 sets of molds.
g) Three operation modes - "Manual," "Semi-Auto," and "Full Auto" - are available for selection.
h) The safety door incorporates electric and mechanical safety devices to prevent mold closing when the safety door is open, ensuring safe and reliable operations.
i) This machine offers two blowing functions: straight cutting and oblique cutting.
Technical Parameters:
| System |
Item |
Unit |
Basic Parameter |
|
Basic specifications
|
Applicable materials |
|
PE PP PVC PA… |
| |
Max product volume |
L |
5 |
| |
Number of heads |
SET |
1,2,3,4 |
| |
Machine dimension
(LxWxH)
|
M |
3.6×2.3×2.36 |
| |
Machine weight |
TON |
4.9 |
| |
|
Mould clamping system
|
Mould clamping force |
KN |
90 |
| |
Platen opening strokes |
MM |
180-480 |
| |
Plate stroke |
|
300 |
| |
Max mould sizes(WxH) |
MM |
400×420 |
| |
|
Extrusion system
|
Screw diameter |
MM |
80 |
| |
Screw slenderness ratio |
L/D |
24 |
| |
Plasticizing ability (HDPE) |
KG/H |
90 |
| |
Screw heating stage/zone |
Zone |
4 |
| |
Screw heating power |
KW |
15.85 |
| |
Screw fan power |
KW |
0.28 |
| |
Extrusion motor power |
KW |
30 |
| |
|
|
Head
|
Head heating stage/zone |
Zone |
10 |
| |
Head heating power |
KW |
16.5 |
| |
|
Energy consumption
|
Total machine power |
KW |
80 |
| |
Oil motor power |
KW |
11 |
| |
Air pressure |
MPA |
0.6-0.8 |
| |
Compression air volume |
M3/H |
1.2 |
| |
Cooling water volume |
M3/H |
0.4 |
Applications:
When it comes to Extrusion Molding Machines, the MEPER 7D 70FD stands out as a top choice for various application occasions and scenarios. Originating from China, this machine is certified with CE/ISO9001:2008, ensuring quality and reliability in its performance.
The MEPER 7D 70FD Extrusion Molding Machine is suitable for a wide range of product manufacturing needs. Whether you are in the packaging industry, automotive sector, or household goods production, this machine caters to diverse requirements. Its 2 cavity blow moulding capabilities make it ideal for high-volume production.
With a minimum order quantity of just 1 set and a negotiable price, the MEPER 7D 70FD offers flexibility for businesses of all sizes. The standard packaging ensures safe delivery, and with a delivery time of 25-35 work days, you can quickly integrate this machine into your production line.
Accepted payment terms of L/C and T/T make transactions convenient, while a supply ability of 100 sets per month ensures consistent availability. The machine's specifications, including a screw slenderness ratio of 24 and mould clamping force of 90KN, enable efficient and precise molding of materials such as PE, PP, PVC, and PA.
Equipped with a plate stroke of 300mm and weighing 4.9 tons, the MEPER 7D 70FD Extrusion Molding Machine is versatile yet robust, making it suitable for a wide array of manufacturing environments. Whether you are a small-scale operation or a large production facility, this machine caters to your extrusion molding needs with ease.
Packing and Shipping:
Product Packaging for Extrusion Molding Machine:
The extrusion molding machine will be carefully packed in a sturdy cardboard box to ensure it arrives safely at its destination. The machine will be secured with foam padding and protective packaging materials to prevent any damage during transit.
Shipping Information:
Once the order is processed, the extrusion molding machine will be shipped via a reputable courier service. Customers will receive a tracking number to monitor the shipment's progress. Delivery times may vary depending on the destination, but rest assured that we will make every effort to ensure prompt and secure delivery of your new extrusion molding machine.
FAQ:
Q: What is the brand name of this Extrusion Molding Machine?
A: The brand name of this Extrusion Molding Machine is MEPER.
Q: What is the model number of this Extrusion Molding Machine?
A: The model number of this Extrusion Molding Machine is 7D 70FD.
Q: Where is this Extrusion Molding Machine manufactured?
A: This Extrusion Molding Machine is manufactured in China.
Q: What certifications does this Extrusion Molding Machine have?
A: This Extrusion Molding Machine is certified with CE/ISO9001:2008.
Q: What are the payment terms for purchasing this Extrusion Molding Machine?
A: The payment terms for purchasing this Extrusion Molding Machine are L/C and T/T.
