Product Description:

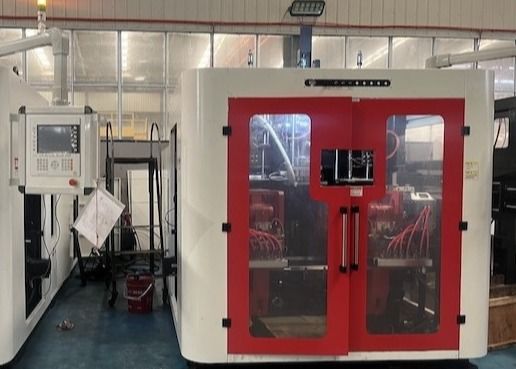

MP Plastic Blow Molding Machine is designed to process a wide range of plastic hollow products with high molecular weight. This machine is capable of producing hollow products ranging from 5 milliliters to 100 liters. The products that can be manufactured using this machine include bottles, pots, jars, barrels, toys, toolboxes, bed boards, desk boards, chairs, and automotive parts, among others.
The versatility of this machine lies in its ability to blow different materials such as PE, PP, PVC, PA, PC, PS, and EVA. Additionally, it ensures a flawless production process, providing high-quality output for various applications.
Features:
a) The extruding device utilizes a variable frequency motor to meet the rotational requirements of the screw during the blowing process. Employing a screw with a high slenderness ratio enables the processing of various materials with efficient plasticizing, high production capacity, and low energy consumption. The barrel is equipped with a resistance heater that is computer-controlled, ensuring rapid, stable, and uniform heating.
b) By integrating different heads into a combined extrusion system between two extrusion machines, products with visible strip lines or double layers can be extruded.
c) The mould clamping device features a toggle-type mechanism and linear guidance system. With a double station design, the mould platen moves swiftly and steadily.
d) An enhanced hydraulic oil loop design promotes power efficiency, rapid operation, and stability.
e) Hydraulic element installation and maintenance are convenient, facilitated by a removable and mobile oil tank.
f) The entire machine is computer-controlled, with the hydraulic system benefiting from double proportional control. It offers fault automatic alarm, ensuring reliable operation, high automation, and storage of data for up to 40 set moulds.
g) Three operation modes, "Manual", "Semi Auto", and "Full Auto", can be selected as needed.
h) The safety door incorporates both electric and mechanical safety features to prevent mould closing when the door is opened, enhancing operational safety and reliability.
i) This machine provides two blowing functions: straight cutting and oblique cutting.
Technical Parameters:
System Item
Unit Basic Parameter
Basic specifications
- Applicable materials: PE PP PVC PA…
- Max product volume: 5L
- Number of heads: 1,2,3,4
- Machine dimension (LxWxH): 3.6×2.3×2.36M
- Machine weight: 4.9TON
Mould clamping system
- Mould clamping force: 90KN
- Platen opening strokes: 180-480MM
- Plate stroke: 300
- Max mould sizes(WxH): 400×420MM
Extrusion system
- Screw diameter: 80MM
- Screw slenderness ratio: L/D 24
- Plasticizing ability (HDPE): 90KG/H
- Screw heating stage/zone: 4
- Screw heating power: 15.85KW
- Screw fan power: 0.28KW
- Extrusion motor power: 30KW
Head
- Head heating stage/zone: 10
- Head heating power: 16.5KW
Energy consumption
- Total machine power: 80KW
- Oil motor power: 11KW
- Air pressure: 0.6-0.8MPA
- Compression air volume: 1.2M3/H
- Cooling water volume: 0.4M3/H
Applications:
When it comes to the Extrusion Molding Machine by MEPER, the product application occasions and scenarios are vast and diverse. This high-quality machine, model number 7D 70FD, originating from China and certified with CE/ISO9001:2008, is a versatile solution for various manufacturing needs.
One of the key application scenarios for this machine is in the production of plastic products using extrusion molding technology. Whether you require an auto deflashing blow moulding machine or a 2 cavity blow moulding machine, the MEPER Extrusion Molding Machine is up to the task. Its plate stroke of 300mm and screw slenderness ratio of 24 enable precise and efficient molding processes.
Manufacturers looking to produce plastic products with specific characteristics, such as high-density polyethylene (HDPE) with a plasticizing ability of 90, will find this machine particularly useful. The Extrusion Molding Machine is capable of handling a maximum product volume of 5L, making it suitable for a wide range of product sizes and types.
Furthermore, with a machine weight of 4.9 tons, this equipment is robust and stable, ensuring reliable performance throughout its operational lifespan. Customers can benefit from the flexibility offered by a negotiable price, standard packaging for safe delivery, and a minimum order quantity of just 1 set.
With a delivery time of 25-35 work days, convenient payment terms including L/C and T/T, and a supply ability of 100 sets per month, the MEPER Extrusion Molding Machine is a dependable choice for businesses looking to enhance their production capabilities and meet market demands efficiently.
Packing and Shipping:
Product Name: Extrusion Molding Machine
Description: High-quality extrusion molding machine for manufacturing various plastic products.
Features:
- Robust construction
- Efficient performance
- Easy to operate
Package Includes:
- Extrusion Molding Machine
- Instruction Manual
- Required accessories
Shipping Information:
- Shipping Method: Standard Shipping
- Estimated Delivery Time: 5-7 business days
- Shipping Cost: Calculated at checkout
FAQ:
Q: What is the brand name of the Extrusion Molding Machine?
A: The brand name is MEPER.
Q: What is the model number of the Extrusion Molding Machine?
A: The model number is 7D 70FD.
Q: Where is the Extrusion Molding Machine manufactured?
A: The machine is manufactured in China.
Q: What certifications does the Extrusion Molding Machine have?
A: It is certified with CE/ISO9001:2008.
Q: What are the payment terms for purchasing the Extrusion Molding Machine?
A: Payment terms accepted are L/C and T/T.
