Product Description:
Functions
The MP plastic blow molding machine is designed for processing various plastic hollow products with high molecular weight. It is capable of producing hollow products ranging in size from 5 milliliters to 100 liters. These products encompass a wide range of items such as bottles, pots, jars, barrels, toys, tool boxes, bed boards, desk boards, chairs, and automotive parts. The machine is versatile in that it can handle various materials including PE, PP, PVC, PA, PC, PS, and EVA, while also delivering flawless production processes.
Features:
1.1.2 Features
a) Extruding Device
The extruding device features a variable frequency motor that can meet the demands of screw rotation adjustments during the blowing process. It is designed to accommodate a screw with a high slenderness ratio, allowing for the processing of various materials with excellent plasticizing ability, high production output, and energy efficiency. The barrel is equipped with a resistance heater controlled by a computer, ensuring quick, stable, and uniform heating.
b) Combined Extrusion System
By incorporating different heads into the combined extrusion system between two machines, users can produce products with a visible strip line or double layers.
c) Mould Clamping Device
The mould clamping device incorporates vertical compression, three pilot posts, a large beam arm, linear guiders, cylinder spindles, and double working positions. This design enables fast and stable movement of the mould.
d) Hydraulic System
The improved design of the hydraulic oil loop results in power savings, rapid operation, and stability.
e) Installation and Maintenance
The hydraulic elements are easy to install and maintain, and the machine comes with a removable and mobile oil tank for added convenience.
f) Computer Control
The entire machine is computer-controlled, with a hydraulic system featuring double proportional control. It includes fault automatic alarms, ensuring reliable operation, high automation, and the ability to store data for up to 40 sets of moulds.
g) Operation Modes
Users can select from three operation modes: "Manual," "Semi-Auto," and "Full Auto."
h) Safety Features
The safety door is equipped with both electric and mechanical safety devices to prevent mould closing when the door is open, ensuring safe and reliable operation.
i) Blowing Functions
This machine offers two blowing functions: straight cutting and oblique cutting.
Technical Parameters:
System Item
Unit
Basic Parameter
Basic specifications
- Applicable materials: PE, PP, PVC, PA...
- Max product volume: 2L
- Number of heads: 1, 2, 3, 4, 5, 6
- Machine dimension (LxWxH): 2.87m x 2.14m x 2.28m
- Machine weight: 3.5 tons
Mould clamping system
- Mould clamping force: 30 KN
- Platen opening strokes: 120-350mm
- Plate stroke: 380mm
- Max mould sizes (WxH): 360mm x 300mm
Extrusion system
- Screw diameter: 55mm
- Screw slenderness ratio (L/D): 24
- Plasticizing ability (HDPE): 45 KG/H
- Screw heating stage/zone: 3
- Screw heating power: 10.1 KW
- Screw fan power: 0.14 KW
- Extrusion motor power: 11 KW
- Head heating stage/zone: 5
- Head heating power: 6.5 KW
Energy consumption
- Total machine power: 40 KW
- Oil motor power: 7.5 KW
- Air pressure: 0.6-0.8 MPA
- Compression air volume: 0.8-1 M3/H
- Cooling water volume: 30 L/H
Applications:

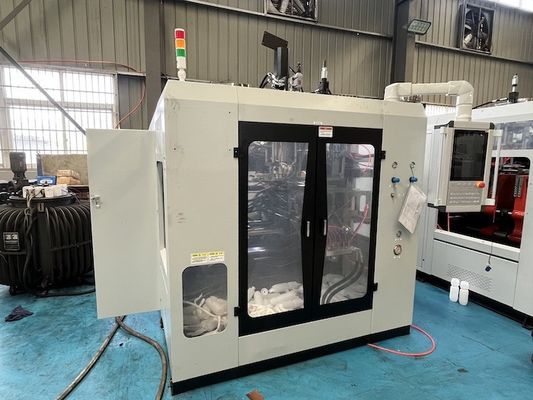

MEPER Extrusion Molding Machine 5D 55d is a versatile and efficient machine suitable for a wide range of product application occasions and scenarios. This fully automatic blow molding machine is designed to meet the needs of various industries with its advanced features and high-quality performance.
With its automatic extrusion blow molding capabilities, the MEPER 5D 55d is perfect for producing plastic products such as bottles, containers, and tanks. Its 4 cavity blow molding machine design allows for increased productivity and efficiency, making it ideal for mass production requirements.
Originating from China, this machine is certified with CE/ISO9001:2008 standards, ensuring top-notch quality and reliability. The minimum order quantity is 1 set, and the price is negotiable, making it accessible for businesses of all sizes.
The packaging details include standard packaging, and the delivery time ranges from 25 to 35 workdays. Payment terms accepted are L/C and T/T, providing flexibility for customers. With a supply ability of 100 sets per month, the MEPER 5D 55d guarantees prompt delivery to meet production demands.
Its plasticizing ability for HDPE is 45, and the machine weight is 3.5 tons, ensuring stability during operation. The applicable materials include PE, PP, PVC, and PA, offering versatility for different product requirements.
The MEPER Extrusion Molding Machine 5D 55d is capable of producing products with a maximum volume of 2L, making it suitable for a wide range of applications. It comes with options for 1, 2, 3, 4, 5, or 6 heads, allowing for customization based on production needs.
Customization:
Product Customization Services for the MEPER Extrusion Molding Machine:
Brand Name: MEPER
Model Number: 5D 55d
Place of Origin: China
Certification: CE/ISO9001:2008
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: standard packaging
Delivery Time: 25-35 work days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Max product volume: 2L
Plate stroke: 380mm
Applicable materials: PE, PP, PVC, PA
Number of heads: 1, 2, 3, 4, 5, 6
Screw diameter: 55mm
Keywords: 4 cavity blow moulding machine, fully automatic blow moulding machine price, auto deflashing blow moulding machine
