Product Description:
Functions

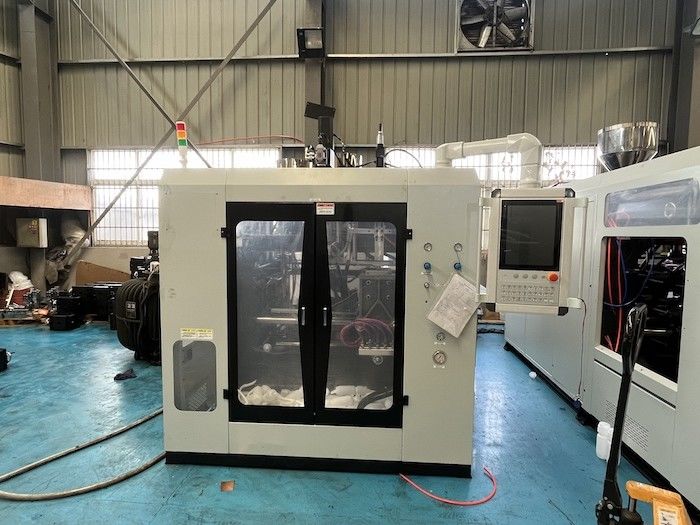

The MP plastic blow molding machine is designed for processing various plastic hollow products with high molecular weight. It is capable of producing hollow products ranging from 5 milliliters to 100 liters. Examples of products that can be produced include bottles, pots, jars, barrels, toys, tool boxes, bed boards, desk boards, chairs, and auto parts.
This machine is versatile as it can work with different materials such as PE, PP, PVC, PA, PC, PS, and EVA. Additionally, it ensures a perfect manufacturing process for a wide range of products.
Features:
1.2 Features
a) The extruding device is equipped with a variable frequency motor that can meet the rotation change requirements of the screw during the blowing process. It allows the use of a screw with a large slenderness ratio to process a variety of materials, offering strong plasticizing ability, high production output, and low energy consumption. The barrel features a resistance heater controlled by a computer for quick, stable, and uniform heating.
b) By incorporating different heads into the combined extrusion system between two extrusion machines, products can be blown with a visible strip line or double layers.
c) The mould clamping device adopts vertical compression, three pilot posts, a large beam arm, linear guides, cylinder spindles, and dual working positions, ensuring fast and stable mould movement.
d) The hydraulic oil loop has been redesigned for power savings, rapid operation, and stability.
e) Convenient installation and maintenance of hydraulic elements are supported. The machine is equipped with a removable and mobile oil tank.
f) The entire machine is computer-controlled, with a hydraulic system featuring double proportional control. It includes fault automatic alarm, ensuring reliable operation, high automation, and the ability to store data for up to 40 sets of moulds.
g) The machine offers three operation modes – "Manual," "Semi Auto," and "Full Auto," providing flexibility for selection.
h) The safety door is designed with electric and mechanical safety devices to prevent mould closing when the safety door is open, ensuring safe and reliable operation.
i) This machine can perform two blowing functions: straight cutting and oblique cutting.
Technical Parameters:
System Item t Unit t Basic Parameter
Basic specifications
Applicable materials t PE PP PVC PA…
Max product volume t L 2
Number of heads t SET 1,2,3,4,5,6
Machine dimension (LxWxH) t M 2.87X2.14X2.28
Machine weight t TON 3.5
Mould clamping system
Mould clamping force t KN 30
Platen opening strokes t MM 120-350
Plate stroke t MM 380
Max mould sizes(WxH) t MM 360X300
Extrusion system
Screw diameter t MM 55
Screw slenderness ratio t L/D 24
Plasticizing ability (HDPE) t KG/H 45
Screw heating stage/zone t Zone 3
Screw heating power t KW 10.1
Screw fan power t KW 0.14
Extrusion motor power t KW 11
Head
Head heating stage/zone t Zone 5
Head heating power t KW 6.5
Energy consumption
Total machine power t KW 40
Oil motor power t KW 7.5
Air pressure t MPA 0.6-0.8
Compression air volume t M3/H 0.8-1
Cooling water volume t L/H 30
Applications:
MEPER 5D 55d automatic extrusion blow molding machine is a versatile and high-quality Plastic Extrusion Machine suitable for a wide range of applications. With its origin in China, this machine is certified with CE/ISO9001:2008, ensuring its reliability and performance.
Whether you are in the packaging industry, automotive sector, or manufacturing household goods, the MEPER 5D 55d Extrusion Molding Machine is ideal for producing various plastic products. The machine's minimum order quantity is only 1 set, and the price is negotiable, making it accessible for both small-scale and large-scale production needs.
When you order the MEPER 5D 55d, you can expect the product to be delivered in standard packaging within 25-35 work days. The payment terms accepted include L/C and T/T, providing flexibility for your purchasing process. Additionally, the machine has a supply ability of 100 sets per month, ensuring availability and timely delivery.
With a maximum product volume of 2L and a plate stroke of 380mm, the MEPER 5D 55d offers precision and efficiency in plastic extrusion molding. Its plasticizing ability for HDPE is 45, making it suitable for a variety of materials including PE, PP, PVC, and PA. The screw slenderness ratio of 24 further enhances the machine's performance and output quality.
Whether you are looking to enhance your production line with a fully automatic blow moulding machine or seeking competitive pricing for a reliable extrusion molding machine, the MEPER 5D 55d is the solution for your needs. Its versatility, quality, and certifications make it a valuable asset for various industries and production scenarios.
Customization:
Product Customization Services for the Plastic Extrusion Molding Machine:
Brand Name: MEPER
Model Number: 5D 55d
Place of Origin: China
Certification: CE/ISO9001:2008
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: standard packaging
Delivery Time: 25-35 work days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Max product volume: 2L
Screw diameter: 55mm
Machine weight: 3.5ton
Plate stroke: 380mm
Applicable materials: PE, PP, PVC, PA
