MP80FD HDPE + EVOH+AD Plastic Bottle Blowing Machine

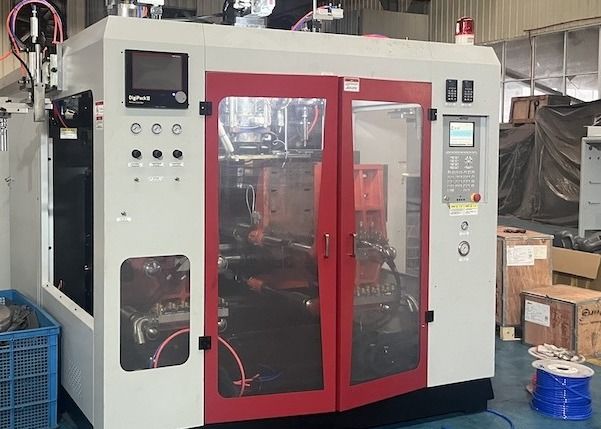

Large Image : MP80FD HDPE + EVOH+AD Plastic Bottle Blowing Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	MEPER
Certification:	CE/ISO9001:2008
Model Number:	MP80FD

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Price negotiation
Packaging Details:	Standard export package, wooden pallet(standard) wooden case(optional)
Delivery Time:	25-35 work days
Payment Terms:	L/C, T/T
Supply Ability:	100 sets per month

Contact Now

Detailed Product Description

Container Capacity:	1L	Applicable Material:	HDPE + EVOH+AD
Layer:	FOUR	Head:	TWO
Name:	Agricultural Chemical 1L Plastic Bottle Blow Molding Machine For Hdpe	Keyword:	Hdpe Bottle Blowing Machine
Highlight:	HDPE Plastic Bottle Blowing Machine , MP80FD Plastic Bottle Blowing Machine , EVOH Plastic Bottle Blowing Machine

two heads Blow Molding machines M80FD

Introduction:Extrusion Molding Machine is a manufacturing device used to create plastic products by forcing molten plastic through a die to form a continuous profile. This machine is widely utilized in various industries for producing items such as pipes, sheets, films, and custom shapes.

CONFIGURATION OF EXTRUSION BLOW MOLDING MACHINE
CONFIGURATION OF EXTRUSION BLOW MOLDING MACHINE
COMPONENT	BRAND	ORIGIN
electric system
controller(computer)	TECHMATION	TAIWAN
interface	TECHMATION	TAIWAN
contactor	LS	KOREA
linear transducer	NOVETECHINIC	GERMANY
stroke switch	SCHNEIDER	GERMANY
inverter	DELTA	TAIWAN
servo system	TECHMATION	TAIWAN
extruder motor	ZHONGDA	CHINA
screw and barrel	JINGXIN	CHINA
hydraulic system
oil pump	VICKERS	USA
hydraulic valve	VICKERS	USA
proportional valve	HNC	TAIWAN
seal ring	NOK	JAPAN
pneumatic system
air cylinder	ARK	KOREA
pneumatic valve	REXROTH	GERMANY

Parameters	MP80FD
Material	PE PP PVC PA…
Max container capacity	10L
Number of die	1,2,3,4,6
Machine Dimension(LxWxH)	3.3x5.5x2.8m
Total weight	12ton
Clamping force	150kN
Platen openning stokes	240-620mm
Toggle stokes	600mm
Max mould size(WxH)	550x430mm
Screw diameter	80mm
Screw L/D ratio	24 L/D
(HDPE) Plasticizing capacity	108kg/h
Screw heating zone	4 zone
Screw heating power	15.6kw
Screw fan power	0.14kw
Extrusion motor power	30kw
Die head heating zone	8 zone
Power of die heating	10.3kw
Total power of machine	92kw
Power of oil pump motor	31kw
Air pressure	0.6-0.8 Mpa
Average energy consumption	61kw
Consumption compression air	1.2m³/min
Consumption cooling water	80L/min

Applications

Piping and Tubing:
- Commonly used to produce PVC, HDPE, and other types of pipes and tubing for plumbing and industrial applications.
Sheets and Films:
- Used to create plastic sheets and films for packaging, construction, and signage.
Profiles and Custom Shapes:
- Capable of producing complex profiles for windows, doors, and other architectural applications.
Automotive Parts:
- Employed in the manufacturing of various plastic components used in vehicles.
Consumer Goods:
- Used to produce items like containers, toys, and household products.
