Product Details:
Payment & Shipping Terms:
|
| Container Capacity: | 5L Bottle | Applicable Material: | HDPE LDPE PP PVC |
|---|---|---|---|
| Product: | Agriculture Water Kettle | Station: | Single Or Double |
| Machine Type: | D -Tie Bar Type | PLC: | Techmation Or B&R PLC |
| Highlight: | Single Station Bottle Blow Molding Machine,5L Plastic Bottle Blow Moulding Machine,Agricultural Water Kettle Blow Molding Machine |
||

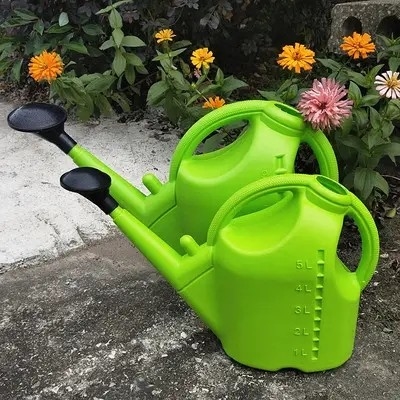

Plastic Bottle Blow Molding Machine MP70D-1 For Agriculture Water Kettle
Introduction:
MP70D is specifically designed for making bottles from 50ml up to maximum 5L. It is hydraulic driven with accrate eletrical control system.

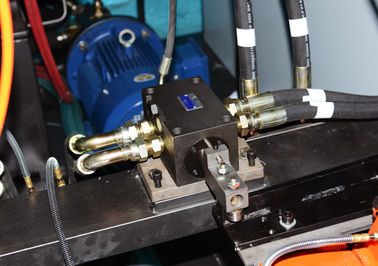

1 Head moves down: T16 is connected with power. Pressure oil in bar chamber of head oil cyliderV17 comes back to oil tank. Extrusion machine platform moves down.
2 Right mould rack move up quickly: T1, T2 and T6 are connected with power. With high pressure, oil pump supplies much oil to system, up to bar chamber of right placing rack oil cylinder V14. It pushes right mould rack move quickly.
3 Right mould rack move up slowly: When right mould rack reaches stroke end, electron ruler gives signal. T1, T2 and T6 are connected with power. With low pressure, oil pump supplies little oil to system, up to bar chamber of right placing rack oil cylinder V14. It pushes right mould rack move slowly back to end. Electron ruler gives signal.
| MP70D Double station blow molder with horizontal linear mould shuttle | ||||
| Length: | 3600mm |
| ||
| Width: | 2200mm | |||
| Height | 2360mm | |||
| Key Data | MP70D | |||
| mm | ||||
| Linear mould stroke | A | 450 | ||
| Mould Width | B | 430 | ||
| Mould Length | C | 350 | ||
| Mould Thickness | D | 190 | ||
| Opening Stroke | E | 290 | ||
| Platen daylight | D+E | 480 | ||
| Clamping Force | 75kN | |||
| Dry Cycle | 7 sec. | |||
| Centre Distance | 2x2 fold | 160 | ||
| 2x3 fold | 120 | |||
| 2x4 fold | 100 | |||
| 2x6 fold | 60 | |||
| Extruder | φ70 | φ75 | φ80 | |
| Screw Speed | r/min | 0~65 | 0~65 | 0~65 |
| Screw Diameter | mm | 70 | 75 | 80 |
| Screw L/D Ratio | L/D | 24 | 24 | 24 |
| Energy Requirements | ||||
| Extruder Inverter Power | kW | 18.5 | 22 | 30 |
| Extruder Moter Power | kW | 18.5 | 22 | 30 |
| Srew Heating Power | kW | 12.7 | 14.4 | 15.85 |
| Fan Power | kW | 0.14X2 | 0.14X2 | 0.14X2 |
| Oil pump Motor Power | kW | 9.5 | 9.5 | 9.5 |
| Total Power of Machine | kW | 49.14 | 54.34 | 63.79 |
| Air Requirement approx | m3/min | 1.2 | 1.2 | 1.2 |
| Air Working Pressure | Mpa | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
| Cooling Requirements | ||||
| Consumption Cooling Water | L/min | 40 | 40 | 40 |
