Product Details:
Payment & Shipping Terms:
|
| Container Capacity: | 1L-5L | Applicable Material: | HDPE LDPE PP |
|---|---|---|---|
| Product: | Garden Water Pot | Station: | Double Station |
| Machine Type: | Tie Bar Type - D Type | PLC: | Techmation Or B&R |
| High Light: | 5L Plastic Bottle Moulding Machine,Garden Water Pot Blow Molding Machine,Double Station Plastic Bottle Blowing Machine |
||

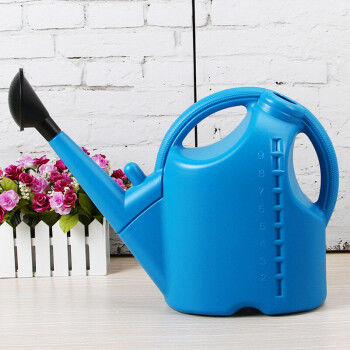

Plastic Bottle Blow Molding Machine MP70D-1 For Garden Water Pot
Introduction:
MP70D is specifically designed for making bottles from 50ml up to maximum 5L. It is hydraulic driven with accrate eletrical control system.
1 Electro-hydraulic proportion overflow speed regulating valve(PQ valve) V10: Regulate pressure and flowrate to satisfy working pressure and speed of different oil cylinders. Regulating methods: Modify some parameter of some action on computer, e.g. changing figure of “high pressure mould clamping” from 100 to 120 will increase mould clamping force (watching pressure guage V8). Speed can be regulated in the same way. The highest working pressure of this system is set at 140kgf/cm2(14Mpa).
2) Electromagnetic reversing valve V11 & V16: Can change the direction of oil cylinder movement.
3 Throttle valve V18: Regulate action speed of head oil cylinder, i.e. quarantee speed diffenence and stability of head oil cylinder.
| MP70D Double station blow molder with horizontal linear mould shuttle | ||||
| Length: | 3600mm |
| ||
| Width: | 2200mm | |||
| Height | 2360mm | |||
| Key Data | MP70D | |||
| mm | ||||
| Linear mould stroke | A | 450 | ||
| Mould Width | B | 430 | ||
| Mould Length | C | 350 | ||
| Mould Thickness | D | 190 | ||
| Opening Stroke | E | 290 | ||
| Platen daylight | D+E | 480 | ||
| Clamping Force | 75kN | |||
| Dry Cycle | 7 sec. | |||
| Centre Distance | 2x2 fold | 160 | ||
| 2x3 fold | 120 | |||
| 2x4 fold | 100 | |||
| 2x6 fold | 60 | |||
| Extruder | φ70 | φ75 | φ80 | |
| Screw Speed | r/min | 0~65 | 0~65 | 0~65 |
| Screw Diameter | mm | 70 | 75 | 80 |
| Screw L/D Ratio | L/D | 24 | 24 | 24 |
| Energy Requirements | ||||
| Extruder Inverter Power | kW | 18.5 | 22 | 30 |
| Extruder Moter Power | kW | 18.5 | 22 | 30 |
| Srew Heating Power | kW | 12.7 | 14.4 | 15.85 |
| Fan Power | kW | 0.14X2 | 0.14X2 | 0.14X2 |
| Oil pump Motor Power | kW | 9.5 | 9.5 | 9.5 |
| Total Power of Machine | kW | 49.14 | 54.34 | 63.79 |
| Air Requirement approx | m3/min | 1.2 | 1.2 | 1.2 |
| Air Working Pressure | Mpa | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
| Cooling Requirements | ||||
| Consumption Cooling Water | L/min | 40 | 40 | 40 |
