Product Details:
Payment & Shipping Terms:
|
| Prodcut Capacity: | Customize Size | Defleshing System: | Yes |
|---|---|---|---|
| Product: | Garden Kettle | Station: | Double |
| PLC: | Techmation | Type: | Toggle Clamping System |
| High Light: | Garden Kettle Extrusion Blow Molding Machine,Toggle Clamping System Bottle Blower Machine,5L Plastic Extrusion Blow Moulding Machine |
||

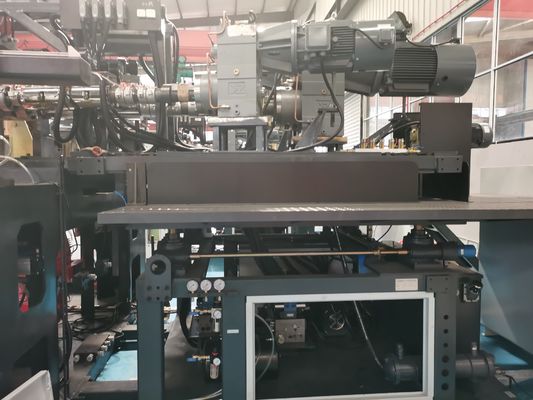

China Meper Toggle Clamping System Custom Blow Molding Machine MP70FD for garden kettle
Brief introduction
MP70FD Adopt hydraulic system drive,linear transducer movement for carriage up and down,fully automatic lubrication system with self-detector function.This model is popular use for small products below 5L.
Advantage:
1. Most important for a good EBM machine is the action system and the extrusion system.
we'r using powerful hydraulic system design with imported valve and pump for stable action
Adopt China famous brand Gearbox along with Delta extrusion motor ,make sure machine runs continiously,long life
2. Heavy and stong structure,make sure machine works more faster and stable.
3. Special protection for the machine and people
4.Toggle balance clamping structure, with platen opening & clamping and mold platen movement by linear guide, to achieve low friction and high speed
5. Based on the Finite Element Analysis design, and platen, toggle and platen frame made in high intensity nodular cast iron.
6. High speed mold clamping oil cylinder with differential speed function, and high speed mold moving cylinder with special anti-shock cushion valve structure.
Machine specification:
| Parameters | MP70FD |
| Material | PE PP PVC PA… |
| Max container capacity | 5L |
| Number of die | 1,2,3,4,6 |
| Machine Dimension(LxWxH) | 3.6x2.2x2.36m |
| Total weight | 5.5ton |
| Clamping force | 90kN |
| Platen openning stokes | 180-480mm |
| Toggle stokes | 450mm |
| Max mould size(WxH) | 430x400mm |
| Screw diameter | 70mm |
| Screw L/D ratio | 24 L/D |
| (HDPE) Plasticizing capacity | 70kg/h |
| Screw heating zone | 3 zone |
| Screw heating power | 14.1kw |
| Screw fan power | 0.14kw |
| Extrusion motor power | 18.5kw |
| Die head heating zone | 3 zone |
| Power of die heating | 6.5kw |
| Total power of machine | 49.14kw |
| Power of oil pump motor | 9.5kw |
| Air pressure | 0.6-0.8 Mpa |
| Average energy consumption | 28kw |
| Consumption compression air | 1.2m³/min |
| Consumption cooling water | 40L/min |
