| Container Capacity: | 50ML-5L | Applicable Material: | HDPE LDPE PP PETG PVC PC PA EVOH EPET |
|---|---|---|---|

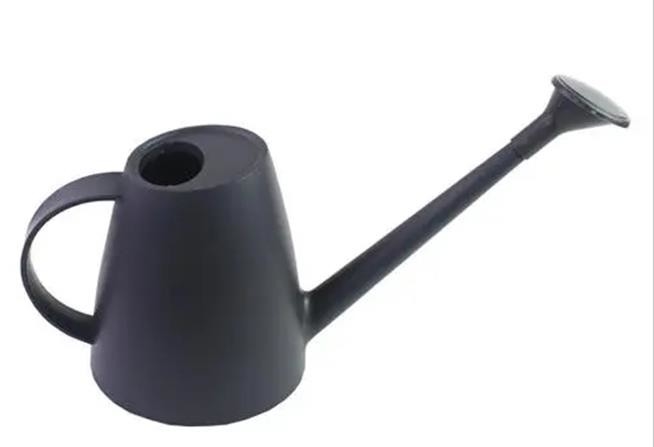

| Product: | Plastic Garden Pot | Station: | Double Station |
| Machine Type: | Tie Bar Type -D Type | Type: | Full Automatic |
| High Light: | Plastic Garden Pot Blow Molding Machine,MP70D-1 plastic bottle blow molding machine,Automatic plastic bottle blow molding machine |
||

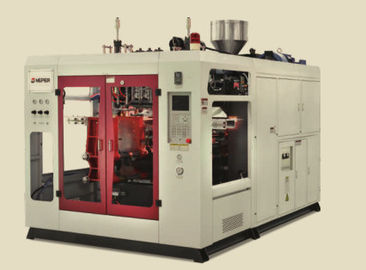

Double Station Plastic Bottle Blow Molding Machine MP70D-1 For Plastic Garden Pot
Introduction:
MP70D is specifically designed for making bottles from 50ml up to maximum 5L. It is hydraulic driven with accrate eletrical control system. MP70D has double stations to increase the production efficiency. Also, it has variety of choice of die heads. With more than 10 years of success in the market, MP70D is updated to be one of the most reliable and popular model in the world.
| MP70D Double station blow molder with horizontal linear mould shuttle | ||||
| Length: | 3600mm |
| ||
| Width: | 2200mm | |||
| Height | 2360mm | |||
| Key Data | MP70D | |||
| mm | ||||
| Linear mould stroke | A | 450 | ||
| Mould Width | B | 430 | ||
| Mould Length | C | 350 | ||
| Mould Thickness | D | 190 | ||
| Opening Stroke | E | 290 | ||
| Platen daylight | D+E | 480 | ||
| Clamping Force | 75kN | |||
| Dry Cycle | 7 sec. | |||
| Centre Distance | 2x2 fold | 160 | ||
| 2x3 fold | 120 | |||
| 2x4 fold | 100 | |||
| 2x6 fold | 60 | |||
| Extruder | φ70 | φ75 | φ80 | |
| Screw Speed | r/min | 0~65 | 0~65 | 0~65 |
| Screw Diameter | mm | 70 | 75 | 80 |
| Screw L/D Ratio | L/D | 24 | 24 | 24 |
| Energy Requirements | ||||
| Extruder Inverter Power | kW | 18.5 | 22 | 30 |
| Extruder Moter Power | kW | 18.5 | 22 | 30 |
| Srew Heating Power | kW | 12.7 | 14.4 | 15.85 |
| Fan Power | kW | 0.14X2 | 0.14X2 | 0.14X2 |
| Oil pump Motor Power | kW | 9.5 | 9.5 | 9.5 |
| Total Power of Machine | kW | 49.14 | 54.34 | 63.79 |
| Air Requirement approx | m3/min | 1.2 | 1.2 | 1.2 |
| Air Working Pressure | Mpa | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
| Cooling Requirements | ||||
| Consumption Cooling Water | L/min | 40 | 40 | 40 |

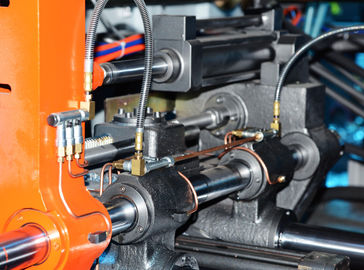

Extrusion device
The function of extrusion device is to plasticize plastic evenly and to delivery molten materials to head with proper pressure and speed.
It is mainly made up of screw, barrel,hopper, motor, gear box and cooling fan.
The rotation of screw is driven by motor & decelerator and adjusted by frequency changer which can satisfy the requirements of rotation change of screw during blowing process.
