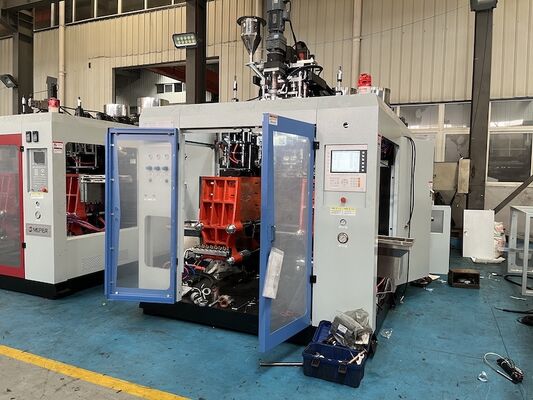

High Speed Extrusion Blowmolding Machine Featuring PE PP PVC PA Materials Capability Enhancing Productivity

Product Description:

The MP plastic blow molding machine is specifically designed for manufacturing a wide range of plastic hollow products made from high molecular materials. This versatile machine is suitable for producing items with capacities ranging from as small as 5 milliliters up to large containers of 100 liters.

Its applications cover a broad spectrum of products, including bottles, pots, jars, barrels, toys, toolboxes, bed boards, desk boards, chairs, and even automotive parts. This makes it an ideal choice for industries requiring diverse hollow plastic products.

Moreover, the machine is capable of processing various types of materials such as polyethylene (PE), polypropylene (PP), polyvinyl chloride (PVC), polyamide (PA), polycarbonate (PC), polystyrene (PS), and ethylene-vinyl acetate (EVA). In addition to its material compatibility, it ensures excellent process quality, delivering perfect molding results every time.

Features:

The extruding device utilizes a variable frequency motor, which effectively meets the rotational speed requirements of the screw during the blowing process. The screw, designed with a high slenderness ratio, is capable of processing a wide variety of materials. It boasts strong plasticizing capabilities, high production efficiency, and low energy consumption. Additionally, the barrel is equipped with a resistance heater that is computer-controlled, ensuring quick, stable, and uniform heating.

By incorporating different heads within a combined extrusion system positioned between two extrusion machines, the equipment can produce products featuring clear strip lines or double layers. This flexibility enhances the range of possible product designs.

The mould clamping device employs vertical compression, supported by three pilot posts, a large beam arm, a linear guider, cylinder spindle, and dual working positions. This configuration allows the mould to move rapidly and steadily, improving overall operational efficiency.

The hydraulic oil loop has been improved to enhance power saving, speed, and stability. These upgrades contribute to more efficient energy use and reliable performance.

Installation and maintenance of hydraulic components are designed for convenience. The machine is equipped with a removable and movable oil tank, facilitating easy access and servicing.

The entire machine is controlled via a computer system, with the hydraulic system featuring double proportional control. The machine supports automatic fault alarms, ensuring reliable operation. It also offers a high level of automation and can store data for up to 40 different mould sets.

Operators can choose from three different modes of operation: "Manual," "Semi-Automatic," and "Full Automatic," allowing flexibility based on production needs.

Safety is prioritized with the safety door, which incorporates both electric and mechanical safety devices. This ensures that the mould cannot close when the safety door is open, making the operation secure and dependable.

Lastly, the machine is equipped with two blowing functions that support both straight cutting and oblique cutting, expanding the versatility of the finished products.

Technical Parameters:

The machine is designed to handle various materials including PE, PP, PVC, and PA among others. It supports a maximum product volume of 10 liters. Depending on requirements, the equipment can be configured with one to four heads. The overall dimensions of the machine measure 4 meters in length, 2.3 meters in width, and 2.5 meters in height, with a total weight of 8.2 tons.

The mould clamping system is a critical component, featuring a clamping force of 150 kN to ensure secure mould positioning during operation. The platen opening stroke can vary from 220 mm up to 620 mm, with a plate stroke length fixed at 540 mm. The maximum allowable mould size measures 520 mm in width and 460 mm in height.

The extrusion system is equipped with an 80 mm diameter screw featuring a slenderness ratio of 24 (L/D). It demonstrates a plasticizing capacity of 90 kilograms per hour when processing HDPE. The screw heating is divided into four zones powered by 15.85 kW, supported by a screw cooling fan with a power rating of 0.28 kW. The extrusion motor has a power output of 30 kW.

The head heating system comprises three stages or zones with a combined power of 10 kW to maintain the desired temperature during extrusion.

The total power consumption of the machine is rated at 80 kW. The oil motor operates with a power output of 18.7 kW. The system requires compressed air at a pressure between 0.6 and 0.8 MPa, with an air volume consumption of 1.5 cubic meters per minute. Additionally, cooling water flows at a rate of 40 liters per minute to maintain operational temperatures.

Applications:

The MEPER MP 80D Extrusion Blow Molding Machine is a high-speed, versatile solution designed for manufacturing plastic bottles with precision and efficiency. Originating from China and certified with CE/ISO9001:2008, this extrusion blowing machine is ideal for industries requiring reliable and consistent bottle production. With a robust machine weight of 8.2 tons and options for 1, 2, 3, or 4 heads, the MP 80D Extrusion Blow Moulder can meet diverse production needs, making it suitable for both small-scale and large-scale manufacturing environments.

This extrusion blow molding machine excels in applications where the production of plastic bottles is essential. It is widely used in the packaging industry for creating bottles that hold beverages, chemicals, pharmaceuticals, cosmetics, and household products. The high-speed operation of the MEPER MP 80D ensures efficient output, making it perfect for companies looking to increase their production capacity without compromising quality. Its ability to handle various bottle sizes and shapes makes it adaptable for producing containers ranging from small personal care bottles to larger industrial containers.

The Extrusion Blow Moulder is especially suitable for scenarios where precise control over bottle thickness and uniformity is critical. This makes it highly applicable in environments that demand high-quality packaging solutions, such as pharmaceutical companies that require leak-proof, sterile containers, or beverage manufacturers needing lightweight yet durable bottles. Its flexibility with multiple head options allows manufacturers to optimize production lines by simultaneously producing different bottle sizes or increasing output volume.

Moreover, the MEPER MP 80D’s packaging and delivery options enhance its suitability for international buyers. The machine is shipped with a standard export package and wooden pallet, with an optional wooden case for additional protection, ensuring safe transport. With a supply ability of 100 sets per month and a delivery time of 25-35 workdays, this extrusion blowing machine offers reliable procurement timelines for businesses planning their production schedules.

Payment terms including L/C and T/T facilitate smooth transactions, while the minimum order quantity of just one set makes it accessible for startups and established manufacturers alike. Overall, the MEPER MP 80D Extrusion Blow Moulder is an excellent choice for companies seeking a high-speed, efficient, and certified extrusion blowing machine to produce high-quality plastic bottles for various industrial applications.

FAQ:

Q1: What is the brand and model of this Extrusion Blow Molding Machine?

A1: The Extrusion Blow Molding Machine is from the brand MEPER, and the model number is MP 80D.

Q2: Where is the MEPER MP 80D Extrusion Blow Molding Machine manufactured?

A2: This machine is manufactured in China.

Q3: What certifications does the MEPER MP 80D have?

A3: The machine holds CE and ISO9001:2008 certifications, ensuring quality and safety standards.

Q4: What is the minimum order quantity and the price for this machine?

A4: The minimum order quantity is 1 set. The price is negotiable depending on order details and requirements.

Q5: What are the packaging options and delivery time for the MEPER MP 80D?

A5: The machine is packed in a standard export package with a wooden pallet as standard. A wooden case is available as an optional packaging. The delivery time is typically 25-35 working days.

Q6: What payment terms are accepted for purchasing the MEPER MP 80D Extrusion Blow Molding Machine?

A6: Payment terms accepted include L/C (Letter of Credit) and T/T (Telegraphic Transfer).

Q7: What is the monthly supply capacity for the MEPER MP 80D machine?

A7: The supply ability is 100 sets per month.
