Product Description:
The MP plastic blow molding machine is designed specifically for manufacturing a wide range of plastic hollow products made from high molecular materials. It excels in producing hollow items that vary in size from as small as 5 milliliters to as large as 100 liters.
This versatile machine is capable of creating numerous types of products, including bottles, pots, jars, barrels, toys, toolboxes, bed boards, desk boards, chairs, and even automotive parts. Its adaptability makes it suitable for a broad spectrum of applications across different industries.
In addition to its wide product range, the MP blow molding machine supports various raw materials. It can process different plastics such as PE, PP, PVC, PA, PC, PS, and EVA, ensuring flexibility in manufacturing. Moreover, the machine guarantees a high-quality production process, delivering excellent results with consistent performance.
Features:
The extruding device is equipped with a variable frequency motor, which meets the requirements for varying the screw’s rotation speed during the blowing process. The screw itself features a high slenderness ratio, enabling it to process a wide range of materials effectively. It possesses strong plasticizing capabilities, supports high production rates, and consumes low energy. Additionally, the barrel is fitted with a resistance heater that is computer-controlled to ensure quick, stable, and uniform heating.
By installing different heads within the combined extrusion system, which connects two extrusion machines, it becomes possible to produce blown products featuring either single visible strip lines or double layers. This flexibility enhances the range of product designs achievable with the system.
The mould clamping mechanism uses vertical compression and incorporates three guide posts, a large beam arm, a linear guider, a cylinder spindle, and a dual working position setup. This design allows the mould to move swiftly and with great stability, ensuring efficient operation.
The hydraulic oil loop has been improved for better performance. It is designed to save power, operate rapidly, and maintain stable conditions throughout the process.
Installation and maintenance of the hydraulic components are made convenient. The system is equipped with a removable and mobile oil tank, simplifying service and upkeep tasks.
The entire machine is controlled via a computer system. The hydraulic system utilizes double proportional control technology. This setup enables automatic fault alerts, ensures reliable operation, supports a high level of automation, and can store data for up to 40 sets of moulds.
Operators can select from three different modes: “Manual," “Semi Auto," and “Full Auto," allowing flexible control based on operational needs.
For safety, the machine includes a door equipped with both electric and mechanical safety devices. These ensure that the mould cannot close while the safety door is open, providing a secure and dependable working environment.
Furthermore, the machine offers two types of blowing functions: straight cutting and oblique cutting, enhancing its versatility in product manufacturing.
Technical Parameters:
System Specifications
Basic Specifications
The system is designed to handle various materials including PE, PP, PVC, and PA, among others. It supports a maximum product volume of up to 10 liters. The number of heads available for operation can be configured to 1, 2, 3, or 4 according to production requirements.
The overall machine dimensions measure 4 meters in length, 2.3 meters in width, and 2.5 meters in height. Additionally, the machine has a total weight of 8.2 tons, reflecting its robust construction.
Mould Clamping System
The mould clamping system provides a clamping force of 150 kN, ensuring secure holding during operation. It features platen opening strokes ranging from 220 mm to 620 mm, with a plate stroke length of 540 mm. The maximum mould size accommodated is 520 mm by 460 mm (width by height), supporting various mould types and sizes.
Extrusion System
The extrusion component utilizes a screw with a diameter of 80 mm and a slenderness ratio (length to diameter) of 24. Its plasticizing ability for HDPE has been rated at 90 kg per hour, optimized through a screw heating system divided into 4 zones, consuming 15.85 kW of power. Additional components include a screw fan powered by 0.28 kW and an extrusion motor delivering 30 kW.
Head Heating System
The head heating system consists of 3 heating stages or zones, consuming a total heating power of 10 kW. This ensures precise temperature control suitable for varied processing needs.
Energy Consumption
The entire machine operates with a total power consumption of 80 kW. The oil motor contributes 18.7 kW of power. The air pressure utilized in the system ranges between 0.6 and 0.8 MPa, with a compressed air volume of 1.5 cubic meters per minute. Additionally, the cooling water consumption is rated at 40 liters per minute to maintain optimal operating temperatures.
Applications:

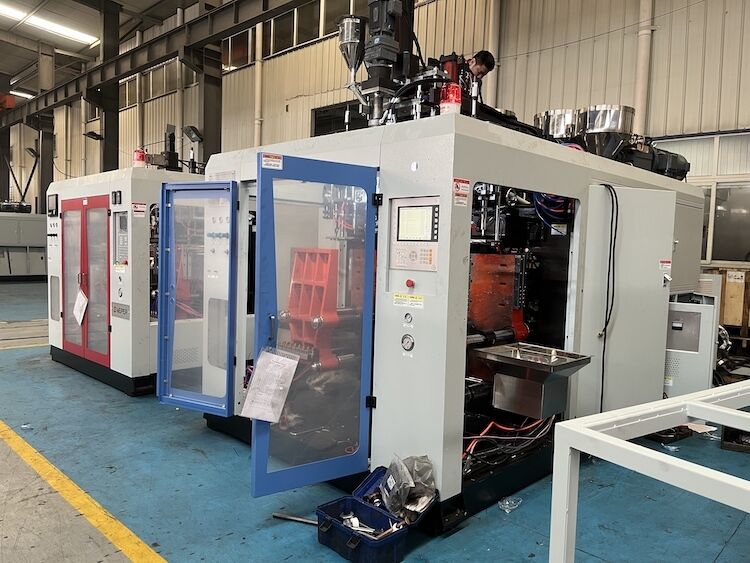

The MEPER MP 80D Extrusion Blow Moulder is a highly versatile and efficient extrusion blowforming machine designed to meet the diverse needs of plastic bottle manufacturing. Originating from China and certified under CE/ISO9001:2008 standards, this extrusion blowmolding machine ensures reliable performance and superior quality. With a maximum volume capacity of 10 liters, it is ideal for producing a wide range of plastic bottles used in various industries including food and beverage, pharmaceuticals, cosmetics, and household chemicals.
Thanks to its flexible configuration, the MP 80D model can be equipped with 1, 2, 3, or 4 heads, allowing manufacturers to optimize production capacity according to their specific requirements. The machine’s compact dimensions of 4x2.3x2.5 meters and weight of 8.2 tons make it suitable for factories with limited floor space while maintaining high output efficiency. Its robust construction and advanced control system ensure consistent bottle quality and precise molding, which is critical for packaging applications demanding high standards.
This extrusion blowforming machine is especially suited for businesses looking to produce plastic bottles for occasions such as packaging of beverages like juices, water, and oils, as well as containers for pharmaceutical syrups, cosmetic lotions, and household cleaning agents. The MP 80D excels in scenarios where customization and quick turnaround are essential, offering flexibility in bottle design and volume. Whether it’s a startup requiring a minimum order quantity of just one set or an established enterprise scaling up production with a supply ability of 100 sets per month, this machine caters to a broad spectrum of manufacturing scales.
MEPER provides the MP 80D with standard export packaging that includes wooden pallets as standard and optional wooden cases, ensuring safe delivery within 25-35 working days. Payment terms are negotiable, including L/C and T/T options, making it accessible for international buyers. Overall, the MEPER MP 80D extrusion blowmolding machine is an excellent choice for companies aiming to enhance their plastic bottle production with a reliable, certified, and adaptable extrusion blowforming solution.
FAQ:
Q1: What is the brand and model number of this Extrusion Blow Molding Machine?
A1: The brand name is MEPER and the model number is MP 80D.
Q2: Where is the MEPER MP 80D Extrusion Blow Molding Machine manufactured?
A2: It is manufactured in China.
Q3: What certifications does the MEPER MP 80D have?
A3: The machine is certified with CE and ISO9001:2008.
Q4: What is the minimum order quantity and how can I negotiate the price?
A4: The minimum order quantity is 1 set, and the price is negotiable. Please contact the supplier directly for price discussions.
Q5: What are the payment terms and delivery time for this machine?
A5: Payment terms accepted are L/C and T/T. The delivery time is typically 25-35 working days after order confirmation.
Q6: How is the machine packaged for export?
A6: The machine is packed in a standard export package, usually on a wooden pallet. A wooden case is also available as an optional packaging method.
Q7: What is the supply capacity of MEPER for this Extrusion Blow Molding Machine?
A7: MEPER can supply up to 100 sets per month.
