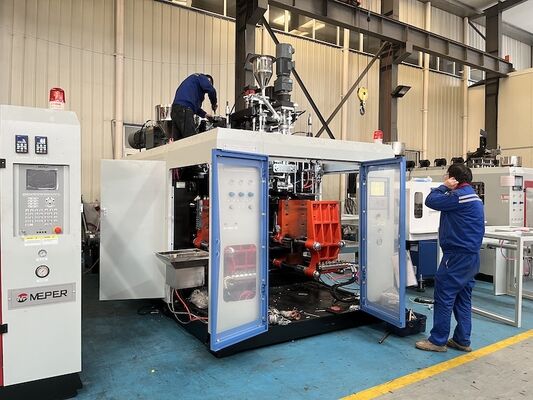

MP 80D High Speed Extrusion Blow Molding Machine Including 1 2 3 or 4 Heads

Product Description:

The MP plastic blow molding machine is specifically designed to manufacture a wide variety of plastic hollow products made from high molecular materials. It is ideal for producing items that range in size from as small as 5 milliliters to as large as 100 liters.

This versatile machine can create numerous types of hollow products, including bottles, pots, jars, barrels, toys, tool boxes, bed boards, desk boards, chairs, and even automotive parts. Its broad application makes it suitable for many industries requiring plastic hollow components.

Moreover, the MP blow molding machine is capable of processing various materials such as polyethylene (PE), polypropylene (PP), polyvinyl chloride (PVC), polyamide (PA), polycarbonate (PC), polystyrene (PS), and ethylene-vinyl acetate (EVA). It ensures an excellent molding process, delivering high-quality finished products every time.

Features:

The extruding device is equipped with a variable frequency motor, which effectively meets the requirements for screw rotation changes during the blowing process. The screw, designed with a high slenderness ratio, is capable of processing various materials. It boasts strong plasticizing capabilities, ensuring high production efficiency while maintaining low energy consumption. Additionally, the barrel features a resistance heater controlled by a computer, allowing it to heat rapidly, steadily, and uniformly.

By installing different heads within the combined extrusion system positioned between two extrusion machines, it is possible to produce blown products featuring either a visible strip line or double layers. This versatility enhances the range of product designs achievable with the system.

The mould clamping device utilizes vertical compression along with three pilot posts, a large beam arm, and a linear guider. It is equipped with a cylinder spindle and supports a double working position. These components ensure that the mould moves quickly and stably during operation.

An improved design of the hydraulic oil circuit contributes to power savings while ensuring rapid and stable performance. The installation and maintenance of hydraulic elements are convenient, supported by a removable and mobile oil tank for ease of handling.

The entire machine is controlled by a computer system. Its hydraulic system incorporates double proportional control, offering reliable operation and high automation. Furthermore, the machine is equipped with an automatic fault alarm and can store data for up to 40 sets of moulds, enhancing operational efficiency.

Operators can choose from three modes of operation: "Manual", "Semi Auto", and "Full Auto", providing flexibility to suit different production needs and preferences.

For safety, the machine is equipped with a safety door that employs both electric and mechanical safety devices. These features prevent the mould from closing when the safety door is open, ensuring secure and reliable operation.

Lastly, the machine offers two blowing cutting functions: straight cutting and oblique cutting, allowing for diverse processing capabilities.

Technical Parameters:

The machine is designed to be compatible with a variety of materials, including PE, PP, PVC, and PA. It has a maximum product volume capacity of 10 liters, suitable for various production requirements. Additionally, the machine offers flexibility with the option to equip 1 to 4 heads, allowing for different production configurations.

The overall dimensions of the machine measure 4 meters in length, 2.3 meters in width, and 2.5 meters in height. It weighs approximately 8.2 tons, indicating a robust and stable structure for industrial applications.

The mould clamping system provides a reliable clamping force of 150 KN, ensuring firm and secure fixation of moulds during operation. It features platen opening strokes adjustable between 220 to 620 millimeters, providing ample range for different mould sizes. The plate stroke is 540 millimeters, accommodating various operational needs.

Furthermore, the system supports maximum mould dimensions up to 520 mm in width and 460 mm in height, enabling compatibility with a wide range of mould types and sizes.

The extrusion system is equipped with a screw having a diameter of 80 millimeters and a slenderness ratio of 24 (L/D), which contributes to efficient material processing. The system has a plasticizing capacity of 90 kilograms per hour when working with HDPE, facilitating high throughput.

The screw includes a heating arrangement divided into 4 stages or zones, powered by a total of 15.85 kW. Additionally, the screw is cooled by a fan consuming 0.28 kW. The extrusion motor itself has a rated power of 30 kW, enabling robust extrusion performance.

The head part of the system features 3 heating zones with a total power of 10 kW, ensuring consistent material melting and shaping during processing.

The machine’s total power consumption is rated at 80 kW, reflecting its overall energy requirement during operation. The oil motor consumes 18.7 kW, contributing significantly to the machine’s power use.

Operating air pressure ranges between 0.6 to 0.8 MPa, with a compressed air volume of 1.5 cubic meters per minute, supporting pneumatic functionalities. Cooling water consumption is estimated at 40 liters per minute to maintain optimal temperature control within the system.

Applications:

The MEPER Extrusion Blow Molding Machine, model MP 80D, is a high-speed extrusion blowforming machine designed to efficiently produce plastic bottles with a maximum volume of 10 liters. Originating from China and certified with CE and ISO9001:2008 standards, this machine is ideal for manufacturers seeking reliable and high-quality extrusion blowforming solutions. Its compact dimensions of 4x2.3x2.5 meters make it suitable for various factory layouts while ensuring a high output capacity of up to 100 sets per month.

This extrusion blow molding machine is particularly suited for applications in industries such as beverage, household chemicals, pharmaceuticals, and cosmetics, where plastic bottles of diverse shapes and sizes are in high demand. The MP 80D’s high-speed operation enables rapid production cycles, making it perfect for mass production scenarios where efficiency and consistency are critical. Whether you are producing small-volume bottles or larger containers, this extrusion blowforming machine provides versatility and precision.

In terms of operational scenarios, the MEPER MP 80D excels in both small-scale workshops and large industrial facilities. Its user-friendly design and robust construction allow it to be integrated into automated production lines or operated as a standalone unit. The machine’s extrusion blow molding technology ensures uniform wall thickness and excellent material distribution, which is essential for producing durable, leak-proof plastic bottles.

Furthermore, the MP 80D is ideal for businesses looking to negotiate flexible pricing and ordering terms, with a minimum order quantity of just one set. The standard export packaging includes wooden pallets, with an optional wooden case for enhanced protection during shipping. Delivery times range from 25 to 35 working days, and payment terms are flexible, accepting L/C and T/T methods. This makes the MEPER extrusion blowforming machine a practical choice for both new entrants and established manufacturers aiming to expand their product lines with high-quality plastic bottles.

In summary, the MEPER MP 80D extrusion blow molding machine is a versatile and efficient solution for a wide range of plastic bottle manufacturing applications. Its high-speed extrusion blowforming capabilities, combined with CE/ISO certification and competitive supply ability, make it a trusted choice for industries demanding precision, speed, and reliability in extrusion blowforming technology.

FAQ:

Q1: What is the brand and model number of this Extrusion Blow Molding Machine?

A1: The machine is branded MEPER and the model number is MP 80D.

Q2: Where is the MEPER MP 80D Extrusion Blow Molding Machine manufactured?

A2: It is manufactured in China.

Q3: What certifications does the MEPER MP 80D have?

A3: The machine is certified with CE and ISO9001:2008 standards.

Q4: What are the payment terms and delivery time for this machine?

A4: Payment can be made via L/C or T/T. The delivery time is typically between 25-35 work days.

Q5: What is the minimum order quantity and supply ability for the MEPER MP 80D?

A5: The minimum order quantity is 1 set, and the supply ability is 100 sets per month.

Q6: How is the Extrusion Blow Molding Machine packaged for shipping?

A6: It is packed in a standard export package with a wooden pallet as standard; a wooden case is optional.

Q7: Is the price fixed or negotiable for the MEPER MP 80D?

A7: The price is negotiable depending on order specifics.
