Product Description:
The MP plastic blow molding machine is specifically designed for manufacturing various plastic hollow products made from high molecular materials. Its advanced technology allows it to efficiently process a wide range of hollow items with precision.
This machine is ideal for producing hollow products with capacities ranging from as small as 5 milliliters up to 100 liters. The versatile applications include creating items such as bottles, pots, jars, barrels, toys, tool boxes, bed boards, desk boards, chairs, and automobile parts, among others.
In addition to handling different types of plastic materials including PE, PP, PVC, PA, PC, PS, and EVA, the MP blow molding machine ensures an excellent manufacturing process. Its capability to work with multiple polymers makes it a perfect choice for diverse production requirements.
Features:
The extruding device utilizes a variable frequency motor, enabling the adjustment of the screw's rotation speed during the blowing process. This feature allows the use of a screw with a high slenderness ratio, making it capable of processing various materials. The screw offers strong plasticizing ability, ensuring high production efficiency while maintaining low energy consumption. Additionally, the barrel is equipped with resistance heaters controlled by a computer system, which provides rapid, stable, and uniform heating.
By fitting different heads within the combined extrusion system that connects two extrusion machines, the equipment can manufacture products featuring visual strip lines or double-layer structures. This flexibility enhances the range of products that can be produced using the system.
The mould clamping device employs a vertical compression mechanism supported by three pilot posts, a large beam arm, and linear guides. It includes a cylinder spindle and supports double working positions, resulting in fast and stable movement of the mould during operation.
An improved hydraulic oil loop design contributes to power savings, as well as rapid and stable system performance. Installation and maintenance of hydraulic components are user-friendly, and the machine comes with a removable and mobile oil tank for added convenience.
The entire machine is managed by a computer system, featuring a hydraulic system that uses dual proportional control. It incorporates an automatic fault alarm system, ensuring reliable operation. The machine also boasts high automation levels and can store data for up to 40 sets of moulds.
Operators can choose from three operation modes: “Manual," “Semi-Auto," and “Full Auto," allowing flexibility to suit different production requirements.
For safety, the machine is equipped with a safety door that combines both electric and mechanical safety devices. This prevents the mould from closing when the safety door is open, ensuring a safe and dependable working environment.
The machine supports two blowing functions: straight cutting and oblique cutting, enhancing its versatility in product shaping and finishing.
Technical Parameters:
Basic Specifications
|
System
|
Item
|
Unit
|
Basic Parameter
|
|
Basic Specifications
|
Applicable Materials
|
|
PE, PP, PVC, PA, and others
|
|
|
Maximum Product Volume
|
L
|
10
|
|
|
Number of Heads
|
SET
|
1, 2, 3, or 4
|
|
|
Machine Dimensions (L * W * H)
|
M
|
4 * 2.3 * 2.5
|
|
|
Machine Weight
|
TON
|
8.2
|
Mould Clamping System
|
Item
|
Unit
|
Basic Parameter
|
|
Mould Clamping Force
|
KN
|
150
|
|
Platen Opening Stroke
|
MM
|
220 - 620
|
|
Plate Stroke
|
MM
|
540
|
|
Maximum Mould Size (W * H)
|
MM
|
520 * 460
|
Extrusion System
|
Item
|
Unit
|
Basic Parameter
|
|
Screw Diameter
|
MM
|
80
|
|
Screw Slenderness Ratio (L/D)
|
|
24
|
|
Plasticizing Capacity (HDPE)
|
KG/H
|
90
|
|
Number of Screw Heating Zones
|
Zone
|
4
|
|
Screw Heating Power
|
KW
|
15.85
|
|
Screw Fan Power
|
KW
|
0.28
|
|
Extrusion Motor Power
|
KW
|
30
|
Head Specifications
|
Item
|
Unit
|
Basic Parameter
|
|
Number of Head Heating Zones
|
Zone
|
3
|
|
Head Heating Power
|
KW
|
10
|
Energy Consumption
|
Item
|
Unit
|
Basic Parameter
|
|
Total Machine Power
|
KW
|
80
|
|
Oil Motor Power
|
KW
|
18.7
|
|
Air Pressure
|
MPA
|
0.6 - 0.8
|
|
Compressed Air Volume
|
M³/min
|
1.5
|
|
Cooling Water Volume
|
L/min
|
40
|
Applications:

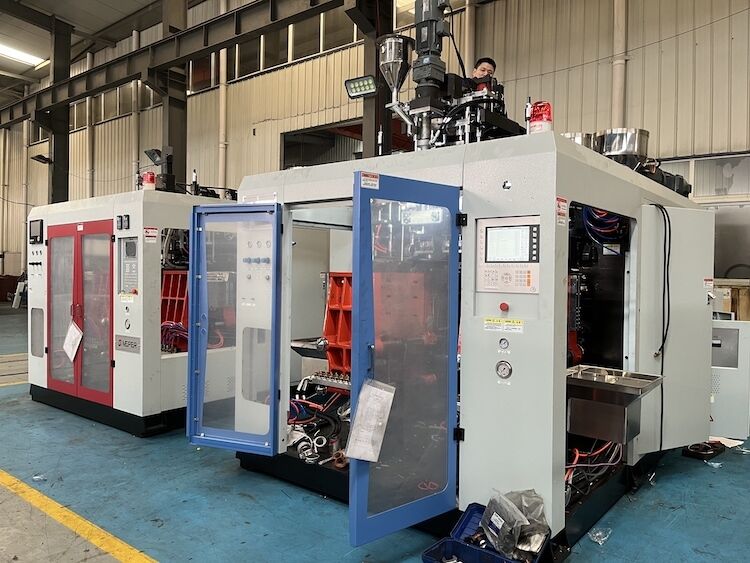

The MEPER MP 80D Extrusion Blow Molding Machine is a high-speed, versatile equipment designed to meet a wide range of production needs in various industries. As a CE/ISO9001:2008 certified product made in China, this extrusion blowforming machine ensures reliable performance and quality. Its robust design, with a machine weight of 8.2 tons and a maximum volume capacity of 10 liters, makes it ideal for producing medium to large-sized hollow plastic products efficiently.
This extrusion blowmolding machine is perfect for manufacturing containers such as bottles, drums, and tanks used in the food and beverage, pharmaceutical, chemical, and cosmetic industries. Its availability in configurations with 1, 2, 3, or 4 heads allows for flexible production scales, making it suitable for small batch runs or large-scale manufacturing. The ability to blow mold multiple parts simultaneously helps increase productivity and reduce operational costs.
The extrusion blowing machine's high-speed operation is especially beneficial in fast-paced industrial environments where time and precision are critical. Companies requiring reliable equipment to produce durable plastic containers with consistent wall thickness and superior finish will find the MP 80D an excellent choice. Its adaptability also extends to producing custom-designed hollow products, catering to specialized applications in automotive, agriculture, and household goods sectors.
With a minimum order quantity of just one set and negotiable pricing, the MEPER MP 80D extrusion blowforming machine is accessible to businesses of various sizes. The standard export package, including wooden pallets and optional wooden cases, ensures safe and secure delivery within 25-35 workdays. Payment terms such as L/C and T/T provide flexible options to accommodate different buyer requirements.
Overall, the MEPER MP 80D extrusion blowmolding machine stands out as a reliable, efficient, and flexible solution for plastic product manufacturers looking to enhance their production capabilities. Its supply ability of 100 sets per month guarantees timely fulfillment of orders, supporting continuous operation and growth in diverse industrial scenarios.
FAQ:
Q1: What is the brand and model number of this Extrusion Blow Molding Machine?
A1: The brand of the machine is MEPER, and the model number is MP 80D.
Q2: Where is the MEPER MP 80D Extrusion Blow Molding Machine manufactured?
A2: This machine is manufactured in China.
Q3: What certifications does the MEPER MP 80D have?
A3: The machine holds CE and ISO9001:2008 certifications.
Q4: What are the payment terms and delivery time for ordering the MEPER MP 80D?
A4: Payment terms include L/C and T/T. The delivery time is typically 25-35 work days after order confirmation.
Q5: What are the packaging options available for shipping the MEPER MP 80D Extrusion Blow Molding Machine?
A5: The machine is packaged in a standard export package with a wooden pallet as standard. A wooden case is available as an optional packaging choice.
