Product Description:

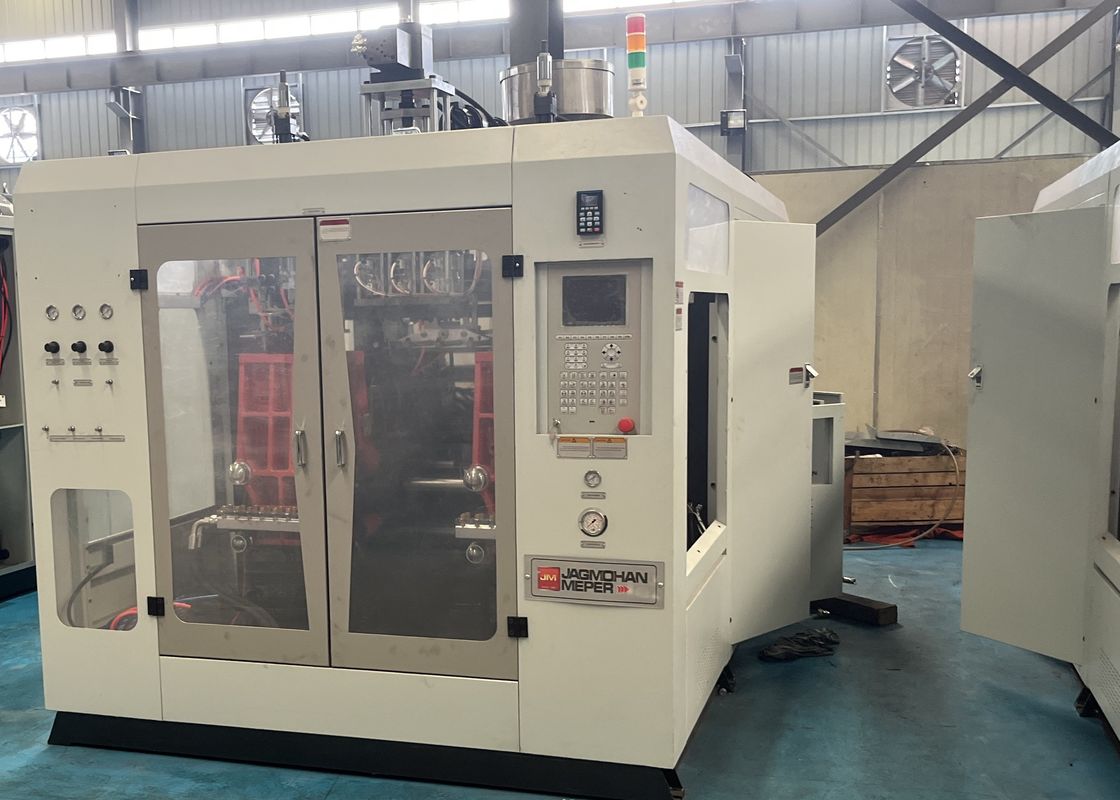

The MP plastic blow molding machine is an exceptional piece of equipment for producing a wide range of plastic hollow products with high molecule. Its capabilities and specifications make it suitable for producing hollow products that range from 5 milliliters to 100 liters. Such products include bottles, pots, jars, barrels, toys, tool boxes, bed boards, desk boards, chairs, and auto parts among others.
This machine does not only blow different materials but also guarantees a perfect manufacturing process. The materials that it can process include PE, PP, PVC, PA, PC, PS, and EVA, among others. Regardless of the material, this machine is a master of the process.
MP plastic blow molding machines are sophisticated and precise. They are fitted with advanced features that give them the edge when it comes to producing high-quality hollow products. Their reliability and capability make them ideal for use in various industries. Therefore, if you are looking for a machine that will boost your manufacturing process, a MP plastic blow molding machine is the way to go.
Technical Parameters:
| System |
Item |
Unit |
Basic Parameter |
|
Basic specifications
|
Applicable materials |
|
PE PP PVC PA… |
| Max product volume |
L |
10 |
| Number of heads |
SET |
1,2,3,4 |
|
Machine dimension
(LxWxH)
|
M |
3.7×3×2.5 |
| Machine weight |
TON |
8 |
| |
|
Mould clamping system
|
Mould clamping force |
KN |
150 |
| Platen opening strokes |
MM |
240-600 |
| Plate stroke |
|
360 |
| Max mould sizes(WxH) |
MM |
500×360 |
| |
|
Extrusion system
|
Screw diameter |
MM |
70 |
| Screw slenderness ratio |
L/D |
24 |
| Plasticizing ability (HDPE) |
KG/H |
90 |
| Screw heating stage/zone |
Zone |
3 |
| Screw heating power |
KW |
12 |
| Screw fan power |
KW |
0.28 |
| Extrusion motor power |
KW |
18.5 |
| |
|
|
Head
|
Head heating stage/zone |
Zone |
10 |
| Head heating power |
KW |
16.5 |
| Max extrusion gate mould diameter |
MM |
3 |
| |
|
Energy consumption
|
Total machine power |
KW |
70 |
| Oil motor power |
KW |
15 |
| Air pressure |
MPA |
0.6-0.8 |
| Average energy consumption |
KW |
1.5 |
| Compression air volume |
M3/H |
50 |
| Cooling water volume |
M3/H |
55.5 |
Features:
a) Extruding Device:
The extruding device is equipped with a variable frequency motor to meet the rotating requirements of the screw while blowing. A high slenderness ratio screw can be used to process multiple materials and has a strong plasticizing ability, while also offering high production and low energy consumption. The barrel is fitted with a resistance heater which is controlled by computer, making it heat quickly, stably, and equably.
b) Combined Extrusion System:
The combined extrusion system between two machines can be used to blow products with view strip line or double layers. This is made possible by installing different heads into the system.
c) Mould Clamping Device:
The mould clamping device features toggle type and linear guider, providing a double station with faster and more stable movement of the mould platen.
d) Hydraulic Oil Loop:
The hydraulic oil loop system has been improved providing power saving, rapid, and stable performance.
e) Hydraulic Element Installation and Maintenance:
The installation and maintenance of hydraulic elements are made easy, thanks to being equipped with a removable and mobilizable oil tank.
f) Computer-controlled Machine:
The whole machine is controlled by a computer, with the hydraulic system adopting double proportional control. The machine can also automatically report faults, allowing for reliable operation and high automation. There's also a data memory of up to 40 sets of molds.
g) Operation Modes:
The machine allows for three operation modes: “Manual”, “Semi Auto,” and “Full Auto.”
h) Safety Features:
The safety door comes equipped with electric and mechanical safety devices, which prevent mould closing when the door is open, ensuring safe and reliable operation.
j) Oblique Blowing Function:
The machine also features an oblique blowing function, which allows for unique product designs.
Applications:
The MEPER mp70fs Extrusion Blow Molding Machine has a maximum product volume of 10L, making it ideal for producing a wide range of containers such as bottles, jars, and cans. The machine has a total power of 70KW, providing enough power to produce high-quality products at a fast pace.
This Extrusion Blow Molding Machine has a screw slenderness ratio of 24L/D, which ensures that the materials are properly mixed and melted for consistent product quality. The machine is compatible with a wide range of materials, including PE, PP, PVC, and PA, making it a versatile choice for businesses that produce different types of containers.
The MEPER mp70fs Extrusion Blow Molding Machine is designed for businesses that have a high demand for container production. This machine can produce up to 100 sets per month, making it a great choice for businesses that need to meet high production demands. Compression air volume of 1.5M3/min ensures the products are produced at a steady pace without any interruptions.
The machine is suitable for a variety of application occasions and scenarios such as production lines of water bottles, milk bottles, juice bottles, cosmetics, daily necessities, etc. The machine can be used in various industries such as food and beverage, cosmetics, and pharmaceuticals. The standard export package of this machine includes a wooden pallet, while a wooden case is optional.
The MEPER mp70fs Extrusion Blow Molding Machine offers flexible payment terms such as L/C and T/T, making it easier for businesses to invest in this high-quality product. With a delivery time of 25-35 work days, businesses can expect a quick turnaround time after placing their order.
In conclusion, the MEPER mp70fs Extrusion Blow Molding Machine is a high-quality product that offers versatility, reliability, and flexibility to businesses of all sizes. Its compatibility with a wide range of materials, high production capacity, and flexible payment terms make it a great investment for businesses looking to increase their container production.
Support and Services:
Our Extrusion Blow Molding Machine product comes with comprehensive technical support and services to ensure smooth operation and maximum efficiency. Our experienced technicians are available to provide installation, training, maintenance, and repair services to help you get the most out of your investment. In addition, we offer upgrades and retrofits to keep your equipment up-to-date with the latest technology and industry standards. Our technical support team is always available to answer any questions or concerns you may have and can provide remote assistance if needed. Contact us for more information on our product technical support and services.
Packing and Shipping:
Product Packaging:
- The Extrusion Blow Molding Machine will be securely wrapped in protective material to prevent any damages during transportation.
- The machine will be placed in a sturdy wooden crate to ensure safe delivery.
- All necessary accessories and components will be packed separately to avoid any scratches or damages.
Shipping:
- Shipping will be facilitated by a reputable carrier company to ensure timely and safe delivery.
- The shipping cost will be calculated based on the weight and dimensions of the wooden crate.
- The buyer will be responsible for any customs duties or taxes that may apply.
