Product Description:

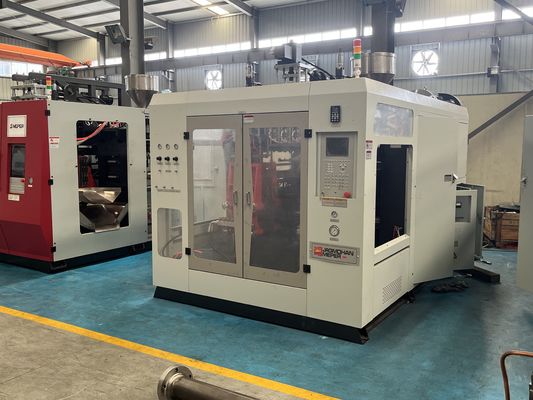

The MP plastic blow molding machine is a highly specialized piece of equipment that is designed for the production of a wide range of plastic hollow products with high molecule content. Whether you need to create bottles, toys, tool boxes, chairs, or auto parts, this machine has the capability to produce products of all shapes and sizes.
One of the key features of the MP plastic blow molding machine is its flexibility. It can produce hollow products anywhere in the range from 5 milliliters to 100 liters, making it suitable for a variety of applications. This machine can blow different materials, including PE, PP, PVC, PA, PC, PS, and EVA.
In addition to its versatility, the MP plastic blow molding machine also offers perfect process control, ensuring that your products are of the highest quality. Whether you're producing bottles, pots, jars, barrels, bed boards, or desk boards, this machine is designed to provide precise and consistent performance.
Overall, the MP plastic blow molding machine is an essential tool for any manufacturer looking to produce high-quality plastic products. With its advanced capabilities and perfect process control, this machine is sure to be a valuable asset to any production line.
Features:
a) Improved Extruding Device:
The extruding device has been upgraded with a variable frequency motor that meets the requirements of rotating the screw during the blowing process. The screw has a high slenderness ratio and can handle various materials with strong plasticizing ability, low energy consumption, and high production output. The barrel is incorporated with a resistance heater for quick, stable, and uniform heating and is controlled by computer.
b) Combined Extrusion System:
The combined extrusion system between two extrusion machines has the flexibility to install different heads, which allows for producing products with a single view strip line or double layers.
c) Mould Clamping Device:
The mould clamping device is designed with a toggle type and linear guider for double-station use. The mould platen moves at a faster and more stable rate.
d) Improved Hydraulic Oil Loop:
The hydraulic oil loop has been redesigned to enhance power saving, rapidness, and stability.
e) Convenient Hydraulic Elements Installation and Maintenance:
The hydraulic elements are easy to install and maintain, equipped with a removable, mobilizable oil tank.
f) Computer-Controlled Machine:
The machine is entirely computer-controlled, with a hydraulic system that uses double proportional control. It includes a fault automatic alarm, reliable operation, high automation, and can store data memory of 40 sets of molds.
g) Three Operation Modes:
The machine offers three operation modes, including "Manual," "Semi-Auto," and "Full Auto," that users can select from depending on their needs.
h) Safe and Reliable Safety Door:
The safety door includes electric and mechanical safety devices, ensuring that no mould closing happens when the safety door is open, thus making the operation safe and reliable.
i) Oblique Blowing Function:
The machine provides an oblique blowing function to produce a more creative and unique product design.
Technical Parameters:
| System |
Item |
Unit |
Basic Parameter |
|
Basic specifications
|
Applicable materials |
|
PE PP PVC PA… |
| Max product volume |
L |
10 |
| Number of heads |
SET |
1,2,3,4 |
|
Machine dimension
(LxWxH)
|
M |
3.7×3×2.5 |
| Machine weight |
TON |
8 |
| |
|
Mould clamping system
|
Mould clamping force |
KN |
150 |
| Platen opening strokes |
MM |
240-600 |
| Plate stroke |
|
360 |
| Max mould sizes(WxH) |
MM |
500×360 |
| |
|
Extrusion system
|
Screw diameter |
MM |
70 |
| Screw slenderness ratio |
L/D |
24 |
| Plasticizing ability (HDPE) |
KG/H |
90 |
| Screw heating stage/zone |
Zone |
3 |
| Screw heating power |
KW |
12 |
| Screw fan power |
KW |
0.28 |
| Extrusion motor power |
KW |
18.5 |
| |
|
|
Head
|
Head heating stage/zone |
Zone |
10 |
| Head heating power |
KW |
16.5 |
| Max extrusion gate mould diameter |
MM |
3 |
| |
|
Energy consumption
|
Total machine power |
KW |
70 |
| Oil motor power |
KW |
15 |
| Air pressure |
MPA |
0.6-0.8 |
| Average energy consumption |
KW |
1.5 |
| Compression air volume |
M3/H |
50 |
| Cooling water volume |
M3/H |
55.5 |
Applications:
Extrusion Blow Molding Machines are designed to manufacture plastic products, such as bottles, containers, and tanks. The MEPER mp70fs is a perfect fit for small to medium-sized businesses that require high-quality plastic products. The machine has a supply ability of 100 sets per month, making it readily available for those in need.
The Extrusion Blow Moulder is versatile in its application, making it ideal for a range of industries. The packaging industry, for example, can use the machine to produce bottles, jars, and containers for various products such as cosmetics, food, and cleaning agents. The automotive industry can use the machine to produce fuel tanks, oil tanks, and other plastic components. The machine's ability to manufacture products with high precision and accuracy makes it an excellent choice for the medical industry as well.
The MEPER Extrusion Blow Molding Machine is suitable for a variety of product application occasions and scenarios. It is ideal for start-up businesses, small to medium-sized companies, and large corporations looking to expand their production processes. The machine can be used in manufacturing plants, factories, and other industrial settings. The product comes in a standard export package with a wooden pallet, and a wooden case is an optional packaging detail. The delivery time for the product is between 25-35 work days, and the payment terms include L/C and T/T. The minimum order quantity for the product is one set, and the price is negotiable.
Support and Services:
Our Extrusion Blow Molding Machine product is backed by our expert technical support and services team. We offer a range of services to help you get the most out of your equipment and optimize your production processes.
Our technical support team is available to provide troubleshooting assistance, as well as on-site and remote support for maintenance and repairs. We also offer customized training programs to help your team operate the equipment safely and efficiently.
In addition, we offer a range of spare parts and accessories to keep your equipment running smoothly. Our experienced service technicians can help you identify the parts you need and provide fast, reliable delivery.
Whether you need technical support, maintenance services, or spare parts, our team is committed to providing you with the highest level of service and support. Contact us today to learn more about our services and how we can help you optimize your production processes.
Packing and Shipping:
Product Packaging:
The Extrusion Blow Molding Machine is carefully packed in a sturdy wooden crate to ensure safe transportation to your location. The machine is secured with foam padding and straps to prevent any damage during shipping.
Shipping:
We offer worldwide shipping for the Extrusion Blow Molding Machine. The shipping cost will depend on your location and the shipping method you choose. Please contact us for a shipping quote and estimated delivery time.
