| Air Pressure: | 0.6-0.8MPA | Compression Air Volume: | 1.5M3/min |
|---|---|---|---|
| Total Machine Power: | 80KW | Oil Motor Power: | 18.7KW |
| Mould Clamping Force: | 150kn | Head Heating Stage/zone: | 3 Zone |
| Applicable Materials: | PE PP PVC PA | Plate Stroke: | 540mm |
| Highlight: | 540mm Plate Stroke Blow Molding Machine,MEPER Blow Molding Machine,0.8MPA Blow Molding Machine |
||

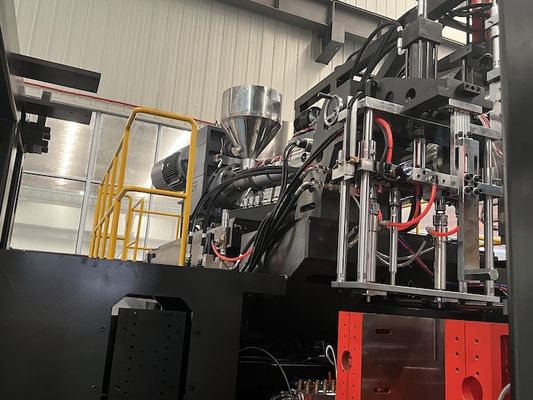

The MP plastic blow molding machine is designed to process a wide range of plastic hollow products with high molecule. With its ability to produce hollow products ranging from 5 milliliters to 100 liters in size, it's an excellent choice for manufacturing bottles, pots, jars, barrels, toys, tool boxes, bed boards, desk boards, chairs, and auto parts, among many other items. Additionally, this machine can blow different materials including PE, PP, PVC, PA, PC, PS, and EVA, ensuring versatile production capabilities.
Whether you're producing products for personal use or to sell, the MP plastic blow molding machine is equipped to provide the perfect manufacturing process for your needs. Its ability to handle a wide range of plastic materials means you can produce products with varying levels of durability and other characteristics to meet the specific requirements of your application.
Choose the MP plastic blow molding machine for your plastic manufacturing needs and produce high-quality products with ease.
Major technical parameters
| System | Item | Unit | Basic Parameter |
|
Basic specifications
|
Applicable materials | PE PP PVC PA… | |
| Max product volume | L | 10 | |
| Number of heads | SET | 1,2,3,4 | |
|
Machine dimension (LxWxH) |
M | 4x2.3x2.5 | |
| Machine weight | TON | 8.2 | |
|
Mould clamping system |
Mould clamping force | KN | 150 |
| Platen opening strokes | MM | 220-620 | |
| Plate stroke | MM | 540 | |
| Max mould sizes(WxH) | MM | 520x460 | |
|
Extrusion system
|
Screw diameter | MM | 80 |
| Screw slenderness ratio | L/D | 24 | |
| Plasticizing ability (HDPE) | KG/H | 90 | |
| Screw heating stage/zone | Zone | 4 | |
| Screw heating power | KW | 15.85 | |
| Screw fan power | KW | 0.28 | |
| Extrusion motor power | KW | 30 | |
|
Head |
Head heating stage/zone | Zone | 3 |
| Head heating power | KW | 10 | |
|
Energy consumption |
Total machine power | KW | 80 |
| Oil motor power | KW | 18.7 | |
| Air pressure | MPA | 0.6-0.8 | |
| Compression air volume | M3/min | 1.5 | |
| Cooling water volume | L/min | 40 | |
MEPER 100 FD Extrusion Blow Molding Machine is an advanced technology machine used for the production of plastic bottles, containers, and other hollow plastic products. The machine is designed and manufactured in China and has gained CE/ISO9001:2008 certification. With a minimum order quantity of 1 set, the price is negotiable and the packaging details include standard export package with a wooden pallet or wooden case as an optional choice.
The Extrusion Blow Molding Machine is a versatile machine with a supply ability of 100 sets per month. Its screw heating power is 15.85KW, allowing it to operate efficiently and effectively. The machine's plasticizing ability is 90KG/H, which makes it ideal for large-scale production. The machine's dimensions are 4x2.3x2.5m, providing a large workspace for the production of plastic products.
The Extrusion Blow Molding Machine is suitable for use with various materials such as PE, PP, PVC, and PA. It has a head heating stage/zone of 3 zones, which ensures that the plastic material is melted and molded properly. This makes the machine ideal for the production of high-quality plastic products.
The Extrusion Blow Molding Machine is widely used in various industries, including the food and beverage industry, cosmetic industry, and pharmaceutical industry. It is also suitable for the production of plastic products for household use, such as plastic bottles and containers. The machine is easy to operate and maintain, making it an ideal choice for small and medium enterprises.
The Extrusion Blow Molding Machine is designed to meet the demand for high-quality plastic products. With its advanced technology and efficient operation, it is an ideal choice for businesses looking to increase their production capacity and improve their product quality. The delivery time for the machine is 25-35 work days, and payment terms include L/C and T/T.
The Extrusion Blow Molding Machine product comes with comprehensive technical support and services to ensure optimal performance and minimal downtime. Our team of experienced technicians is available to provide on-site installation, maintenance, and repair services to maximize the lifespan of your equipment. We also offer training and consultation services to help you optimize your production processes and ensure consistent, high-quality output. Our technical support team is available 24/7 to assist with any questions or concerns you may have.
Q: What is the brand name of the Extrusion Blow Molding Machine?
A: The brand name of the Extrusion Blow Molding Machine is MEPER.
Q: What is the model number of the Extrusion Blow Molding Machine?
A: The model number of the Extrusion Blow Molding Machine is 100 FD.
Q: Where is the Extrusion Blow Molding Machine manufactured?
A: The Extrusion Blow Molding Machine is manufactured in China.
Q: What certifications does the Extrusion Blow Molding Machine have?
A: The Extrusion Blow Molding Machine is certified with CE/ISO9001:2008.
Q: What is the minimum order quantity for the Extrusion Blow Molding Machine?
A: The minimum order quantity for the Extrusion Blow Molding Machine is 1 set.
Q: What is the price of the Extrusion Blow Molding Machine?
A: The price of the Extrusion Blow Molding Machine is negotiable.
Q: What are the packaging details for the Extrusion Blow Molding Machine?
A: The packaging details for the Extrusion Blow Molding Machine are standard export package, wooden pallet (standard) wooden case (optional).
Q: What is the delivery time for the Extrusion Blow Molding Machine?
A: The delivery time for the Extrusion Blow Molding Machine is 25-35 work days.
Q: What are the payment terms for the Extrusion Blow Molding Machine?
A: The payment terms for the Extrusion Blow Molding Machine are L/C, T/T.
Q: What is the supply ability for the Extrusion Blow Molding Machine?
A: The supply ability for the Extrusion Blow Molding Machine is 100 sets per month.
