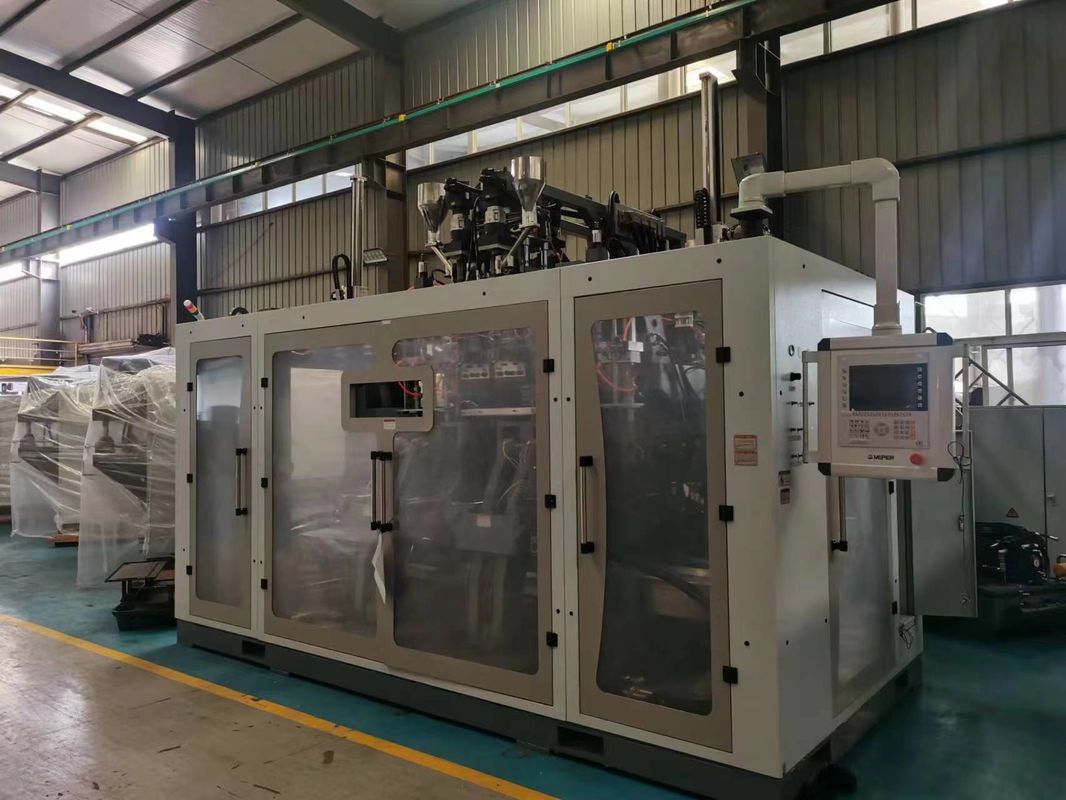

Four Layers Double Stations Blowing Bottle Machine MP100FD

Double Stations Blowing Bottle Machine MP100FD

Introduction:
MP100FD is specifically designed for making bottles from 20L bottle. It is hydraulic driven with accrate eletrical control system. MP100FD has double stations to increase the production efficiency. Also, it has variety of choice of die heads. With more than 10 years of success in the market, MP100FD is updated to be one of the most reliable and popular model in the world.

Advantage:
Adopt fast response PLC from Taiwan-techmation
Seperately control for 3 extrusin unit
Layer structure from outer to inner is :PE/REPE/PE
EACH LAYER THICKNESS IS CONTROLLED INDIVIDUALLY

Standard Features:
Auto Lubrication
Water Cooled Modular Blow Pin
Hot Wire Cutting
Positioning Hole For Quick Mold Change
Adjustable Die head
Linear Transducer
FRL(Filter Regulator Lubricator) for Pneumatic
Proportional Hydraulic System fro better control
Swing and Adjustable Extrusion Platform


Check weekly

1) Lubricating of all moving area is normal or not.

2) Screws of all stroke switches are loose or not.

3) Heating ring is loose or not. Connection between electric thermocouple and material barrel bottom is good or not.

4) Resistance of earth wires.

5) All pressure oil pipelines and pipeline conncetors are leaking or not.

6) Clean hydraulic oil filter.

Check periodically

1) Hydraulic oil quality. For new machine, oil should be changed after 3 month’s operation. At the same time, clean oil tank and intake filter of oil pump. Later, change oil every 6 months in order to prolong service of oil pump, hydraulic elements and oil rings.

2) Clean motor, hydraulic elements and other elements inside in order to keep normal operation of the machine.
