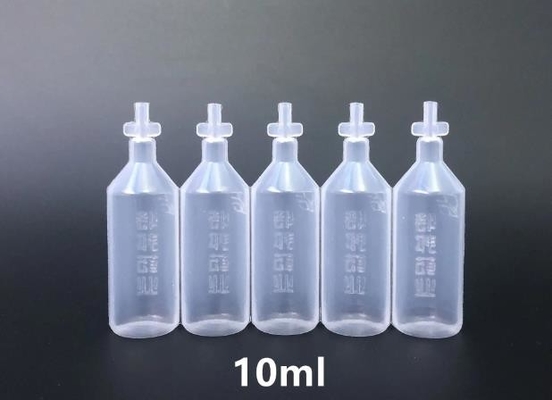

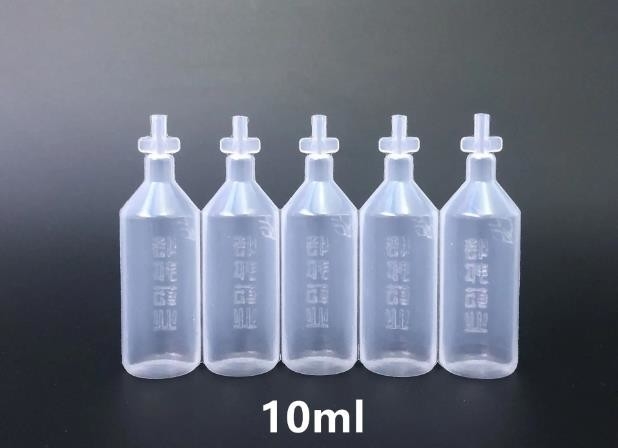

MP55D HDPE Extrusion Double Station Blow Molding Machine For Potion Bottle 10ml

10ml HDPE Extrusion Blow Molding Machine MP55D for Potion Bottle

Introduction:

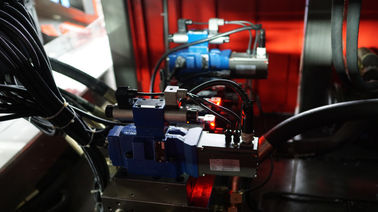

MP55D is specifically designed for making bottles from 5ml up to maximum 1L. It is hydraulic driven with accrate eletrical control system. MP55D has double stations to increase the production efficiency. Also, it has variety of choice of die heads. With more than 10 years of success in the market, MP55D is updated to be one of the most reliable and popular model in the world.

Manual: Push “Manual” key, this machine enters manual state. Under manual state, set all parameter of all action. Setting methods of all parameters are as Computer Operation Manual. Push each action key, finish each action and check its action situation. At the same time, adjust operation pressure, flowrate and position or stroke switch until they are in best situation. Then begin semiautomatic or full automatic operation. This kind of operation mode is probably used during mould test and production beginning stage or used for products which are difficult to be produced automatically. When set to low speed, it can be used during dismantling mould & screw and repairing machine. During operating mechanical action manually, follow action order required by machine.

Pay much attention to lubrication of machine and operate it according to operation requirement strictly. Running in oil starvation will cause wearing to machine (esp. puller bar of mould clamping device) and locking or stop of machine.

Connecting thread area of barrel and head, which are under high temperature, should be coated with lubrication grease (red lead or molybdenum disulfide) for fear of locking during dismantling.

Specifications:

MP55D
Double station blow molder with horizontal linear mould shuttle
	Length:	2870mm
	Width:	2140mm
	Height:	2280mm
Key Data		MP55D
		mm
Linear mould stroke	A	380
Mould Width	B	360
Mould Length	C	300
Mould Thickness	D	130
Opening Stroke	E	220
Platen Daylight	D+E	350
Clamping Force		30kN
Centre Distance	2x2 fold	130
	2x3 fold	90
	2x4 fold	75
	2x5 fold	60
	2x6 fold	50
Extruder		φ55	φ60	φ65
Screw Speed	r/min	0~65	0~65	0~65
Screw Diameter	mm	55	60	65
Screw L/D Ratio	L/D	24	24	24
Energy Requirements
Extruder Inverter Power	kW	11	15	18.5
Extruder Moter Power	kW	11	15	18.5
Srew Heating Power	kW	5.85	9.4	12.3
Fan Power	kW	0.14X2	0.14X2	0.14X2
Oil pump Motor Power	kW	7.5	7.5	7.5
Total Power of Machine	kW	33.34	40.92	47.29
Air Requirement approx	m3/min	0.8-1	0.8-1	0.8-1
Air Working Pressure	Mpa	0.6-0.8	0.6-0.8	0.6-0.8
Cooling Requirements
Consumption Cooling Water	L/min	30	30	30
