Double Station Medical Bottle Extrusion Blow Molding Machine Fully Automatic MP55D

10ml-1L HDPE Extrusion Blow Molding Machine Fully Automatic MP55D for Medical Bottle

Introduction:

MP55D is specifically designed for making bottles from 5ml up to maximum 1L. It is hydraulic driven with accrate eletrical control system. MP55D has double stations to increase the production efficiency. Also, it has variety of choice of die heads. With more than 10 years of success in the market, MP55D is updated to be one of the most reliable and popular model in the world.

Advantages:

EXTRUSION DIE HEAD: HIGHLY EXPERIENCED MULTI-CAVITY AND MULTI-LAYER TECHNOLOGY

Adopting with latest die head design, MEPER focuses on providing high quality and high precision self-manufactured extrusion die heads for customers.

CONTROL SYSTEM: HIGHLY OPTIMIZED USER-FRIENDLY CONTROL TECHNOLOGY

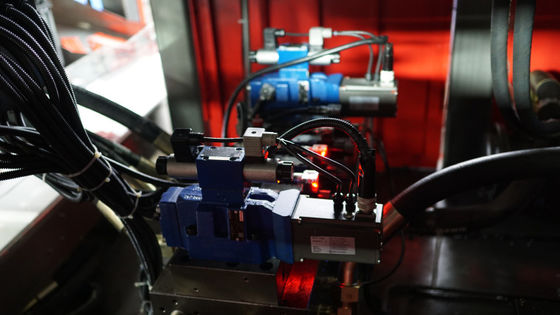

All MEPER machines is equipped in standard with easy operational TECHMATION control system or optional with B&R control system. MOOG Parison Control is also optional based on different requirements.

Continuous extrusion head can be assorted into up adjusting and down adjusting. The core mould of up adjusting head is connected with a long bar by threads. The long bar through head down to up is fixed to head top with two nuts. So first loose down nut, then tighten up nut and the core mould bottom is lifted. Contraliwise, loose up nut, then tighten down nut and the core mould bottom is let down. For down adjusting mould, adjust core mould. Its mould gate is fixed after lock. If you want to change weight of products, you should turn core mould clockwise to lift core mould or turn it counter-clockwise to let it down.

The above head is adjusted manually. The gap will not change after adjusting of core mould and gate mould, i.e., the weight of product will not change.

Adjust equality of material pipe in circular direction.

Open material vent to remove product bond line quickly.

Adjust position of blow pin in all directions and adjust action speed and time of head blowing, cutter and head so that products have equal thickness and even bottle mouth.

Specifications:

MP55D
Double station blow molder with horizontal linear mould shuttle
	Length:	2870mm
	Width:	2140mm
	Height:	2280mm
Key Data		MP55D
		mm
Linear mould stroke	A	380
Mould Width	B	360
Mould Length	C	300
Mould Thickness	D	130
Opening Stroke	E	220
Platen Daylight	D+E	350
Clamping Force		30kN
Centre Distance	2x2 fold	130
	2x3 fold	90
	2x4 fold	75
	2x5 fold	60
	2x6 fold	50
Extruder		φ55	φ60	φ65
Screw Speed	r/min	0~65	0~65	0~65
Screw Diameter	mm	55	60	65
Screw L/D Ratio	L/D	24	24	24
Energy Requirements
Extruder Inverter Power	kW	11	15	18.5
Extruder Moter Power	kW	11	15	18.5
Srew Heating Power	kW	5.85	9.4	12.3
Fan Power	kW	0.14X2	0.14X2	0.14X2
Oil pump Motor Power	kW	7.5	7.5	7.5
Total Power of Machine	kW	33.34	40.92	47.29
Air Requirement approx	m3/min	0.8-1	0.8-1	0.8-1
Air Working Pressure	Mpa	0.6-0.8	0.6-0.8	0.6-0.8
Cooling Requirements
Consumption Cooling Water	L/min	30	30	30
