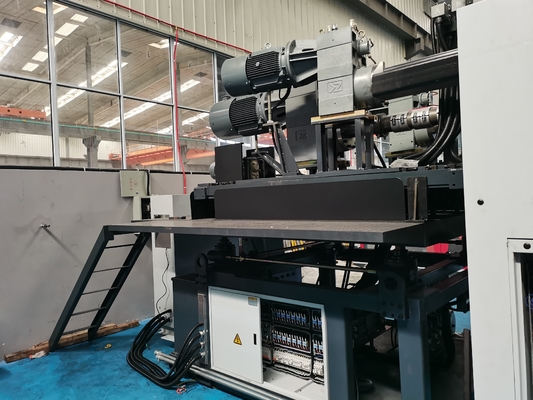

MP100FD Extrusion Blow Molding Machine Toggle Clamping For Plastic Tool Box

Large Image : MP100FD Extrusion Blow Molding Machine Toggle Clamping For Plastic Tool Box

Product Details:

Place of Origin:	CHINA
Brand Name:	MEPER
Certification:	CE/ISO9001:2008
Model Number:	MP100FD

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Price negotiation
Packaging Details:	Standard export package wooden pallet(standard) wooden case(optional)
Delivery Time:	25-35 work days
Payment Terms:	L/C, T/T
Supply Ability:	10 sets per month

Contact Now

Detailed Product Description

Product Capacity:	Customize Size	Applicable Material:	HDPE LDPE PP

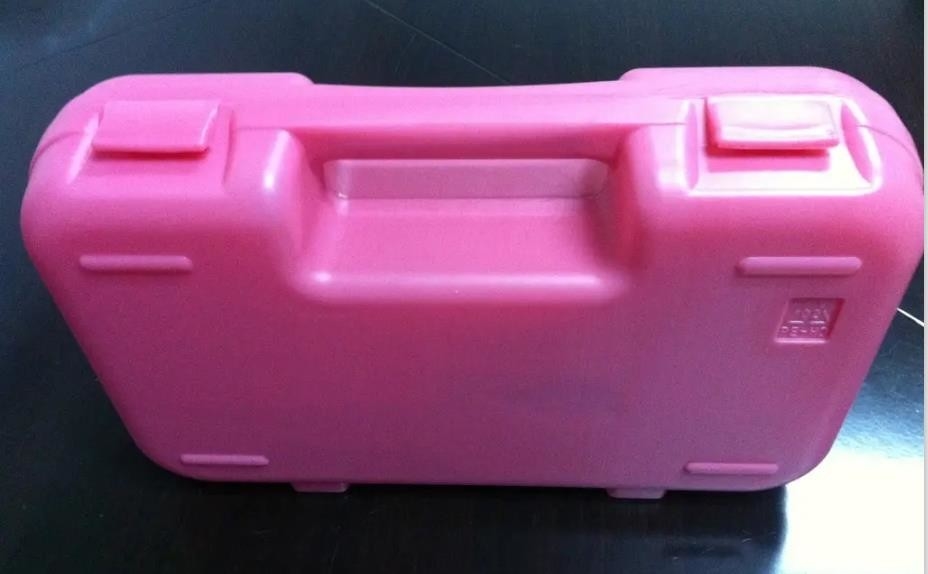

Product:	Plastic Tool Box	Machine Type:	Toggle Clamping
PLC:	Techmation Or B&R	Station:	Double
Highlight:	Toggle Clamping Extrusion Blow Molding Machine , HDPE Plastic Extrusion Blow Molding Machine , Plastic Tool Box Blow Molding Machine

High speed MP100FD Extrusion Blow Molding Machine For Plastic Tool Box

STANDARD CONFIGURATION(EXPORT)
control sytem
computer(PLC&touchable screen)	TECHMATION	TAIWAN
rely	LG	KOREA
Linear transducer	Novetechinic	GERMANY
stroke switch	SCHNERIDER	GERMANY
extrusion parts
screw and barrel	JINXING	CHINA
gear box	JIANGWEI	CHINA
inverter	DELTA	TAIWAN
pneumatic system
press adjustment valve	AIRTAC	TAIWAN
cylinder	AIRTAC	TAIWAN
throttle valve	AIRTAC	TAIWAN
pneumatic valve	REXROTH	GERMANY
hydraulic system
oil pump	VICKERS	U.S.A
hydraulic valve	VICKERS	U.S.A
proportional valve	HNC	TAIWAN
seal ring	NOK	JAPAN
Lubrication	Automatic

Features :

Lifting device and lifting

The major function of lifting device is to adjust the distance from head bottom to mould top.

Platform of extrusion machine can adjust up and down by shaking the handle in the back and transmission device of turbo wheel & turbo bar.

It is made up of turbo wheel, turbo bar, line tooth taper gear, transmission axle and shaking handle.

The major functions of lifting are:

1) Voiding accumulation of running materials in mould bottle mouth;

2) Preventing material pipe from touching mould;

3) Helping cutter to cut material pipe smoothly.

Two oil cylinders are located in platform front. They lift the whole platform of extrusion machine and lifting was realized. It is mainly made up of lifting oil cylinder.

Parameters	MP100FD
Material	PE PP PVC PA…
Max container capacity	10L
Number of die	1,2,3,4,6
Machine Dimension(LxWxH)	5.2x6.5x3.1m
Total weight	15ton
Clamping force	200kN
Platen openning stokes	240-640mm
Toggle stokes	720mm
Max mould size(WxH)	670x430mm
Screw diameter	100mm
Screw L/D ratio	26 L/D
(HDPE) Plasticizing capacity	218kg/h
Screw heating zone	4 zone
Screw heating power	17kw
Screw fan power	0.14kw
Extrusion motor power	55kw
Die head heating zone	10 zone
Power of die heating	12.8kw
Total power of machine	136kw
Power of oil pump motor	31kw
Air pressure	0.6-0.8 Mpa
Average energy consumption	95kw
Consumption compression air	3.2m³/min
Consumption cooling water	110L/min

MP100FD Extrusion Blow Molding Machine Toggle Clamping For Plastic Tool Box 0
