Product Details:
Payment & Shipping Terms:
|
| Container Capacity: | 1L | Applicable Material: | HDPE LDPE PP PETG PVC PC PA EVOH EPET |
|---|---|---|---|
| Layer: | ONE | Head: | FOUR |
| PLC: | Techmation | Product: | Package Bottle |
| Highlight: | 50ml bottle blow molding machine,plc bottle blow molding machine,50ml plastic bottle blowing machine |
||

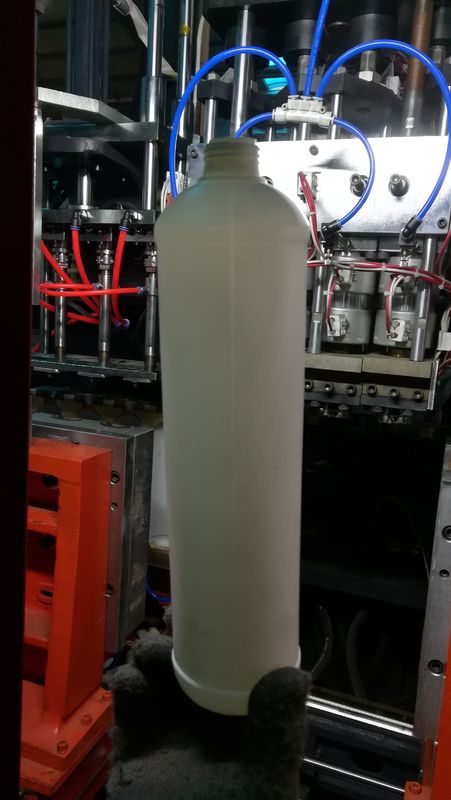

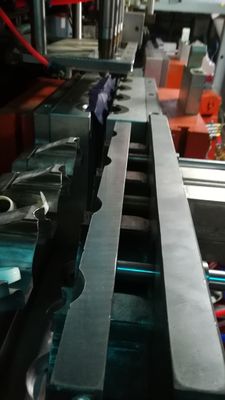

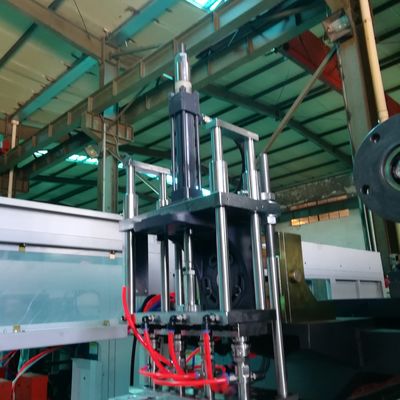

four heads Blow Molding machines MP70F
Introduction:
MP70F is specifically designed for making bottles from 50ml up to maximum 5L. It is hydraulic driven with accrate eletrical control system. MP70F has double stations to increase the production efficiency. Also, it has variety of choice of die heads. With more than 10 years of success in the market, MP70F is updated to be one of the most reliable and popular model in the world.
| CONFIGURATION OF EXTRUSION BLOW MOLDING MACHINE | ||
| COMPONENT | BRAND | ORIGIN |
| electric system | ||
| controller(computer) | TECHMATION | TAIWAN |
| interface | TECHMATION | TAIWAN |
| contactor | LS | KOREA |
| linear transducer | NOVETECHINIC | GERMANY |
| stroke switch | SCHNEIDER | GERMANY |
| inverter | DELTA | TAIWAN |
| servo system | TECHMATION | TAIWAN |
| extruder motor | ZHONGDA | CHINA |
| screw and barrel | JINGXIN | CHINA |
| hydraulic system | ||
| oil pump | VICKERS | USA |
| hydraulic valve | VICKERS | USA |
| proportional valve | HNC | TAIWAN |
| seal ring | NOK | JAPAN |
| pneumatic system | ||
| air cylinder | ARK | KOREA |
| pneumatic valve | REXROTH | GERMANY |
Advantage:
Adopt fast response PLC from Taiwan-techmation
Seperately control for 3 extrusin unit
Layer structure from outer to inner is :PE/REPE/PE
EACH LAYER THICKNESS IS CONTROLLED INDIVIDUALLY
Standard Features:
Auto Lubrication
Water Cooled Modular Blow Pin
Hot Wire Cutting
Positioning Hole For Quick Mold Change
Adjustable Die head
Linear Transducer
FRL(Filter Regulator Lubricator) for Pneumatic
Proportional Hydraulic System fro better control
Swing and Adjustable Extrusion Platform
| Parameters | MP70F |
| Material | PE PP PVC PA… |
| Max container capacity | 5L |
| Number of die | 1,2,3,4,6 |
| Machine Dimension(LxWxH) | 3.6x2.2x2.36m |
| Total weight | 5.5ton |
| Clamping force | 90kN |
| Platen openning stokes | 180-480mm |
| Toggle stokes | 450mm |
| Max mould size(WxH) | 430x400mm |
| Screw diameter | 70mm |
| Screw L/D ratio | 24 L/D |
| (HDPE) Plasticizing capacity | 70kg/h |
| Screw heating zone | 3 zone |
| Screw heating power | 14.1kw |
| Screw fan power | 0.14kw |
| Extrusion motor power | 18.5kw |
| Die head heating zone | 3 zone |
| Power of die heating | 6.5kw |
| Total power of machine | 49.14kw |
| Power of oil pump motor | 9.5kw |
| Air pressure | 0.6-0.8 Mpa |
| Average energy consumption | 28kw |
| Consumption compression air | 1.2m³/min |
| Consumption cooling water | 40L/min |
