Low Power Consumption High Speed Injection Moulding Machine For Plastic Caps And Handles

Large Image : Low Power Consumption High Speed Injection Moulding Machine For Plastic Caps And Handles

Product Details:

Place of Origin:	China
Brand Name:	MINZEN
Certification:	ISO,CE
Model Number:	MZ-280

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Price negotiation
Packaging Details:	Standard export package,Wooden pellet Wooden case(optional)
Delivery Time:	30 work days
Payment Terms:	L/C, , T/T
Supply Ability:	100 sets per month

Contact Now

Detailed Product Description

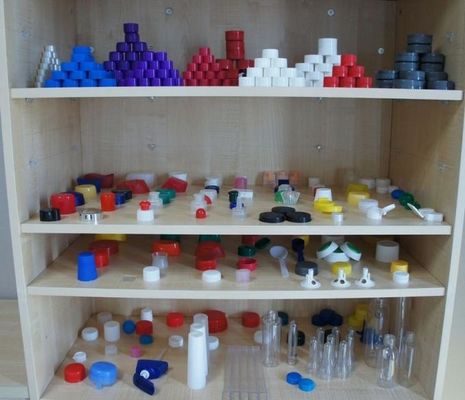

Product:	Plastic Caps And Handle	Injection Speed:	250mm / Sec
Wall Thickness:	0.38mm	Cycle Time:	4s
Speed:	High	Type:	Servo System
High Light:	thin wall injection molding machine , low cost injection molding machine

PP food container Injection Moulding Machine Thin Wall With Hopper dryer

Standard configuration:

Adopt famous hydraulic components:

Yuken-Japan pump,Yuken-Japan direction valve,

Hydraulic motor for melting plastic using intermot italy-China

Back pressure valve Yuken Japan

Air switch from LG Korea

Breaker AC contactor ,single phase breaker ,three-phase breaker from Schneider france

T-slot makes the adjustment easier, compare with the screw adjustment, it has better adaptability and longer life-span

Optional function

nitrogen injection devices
technological meter device for plasticizing speed indication
prolonged nozzle
hydraulic safety interlock
core pull and unscrew motor
robot interface
special screw
Be-clear at one glance for checking the chiller water speed and temp
Auto-loader
Hopper dryer
Chiller
Mixer
Crusher

SPECIFICATIONS

SPECIFICATIONS
DESCRIPTION	UNIT	MZ-280
INJECTION		A	B	C
SHOT VOLUME	CM3	700	792	930
SHOT WEIGHT	G	636	720	845
(PS)	OZ	22.2	25.2	29.5
SCREW DIAMETER	MM	55	60	65
INJECTION PRESSURE	MPA	211	177	151
SCREW L:D RATIO		22:1	20:1	18.5:1
SCREW STROKE	MM	300
SCREW SPEED (STEPLESS)	R/MIN	0~150
CLAMPING UNIT
CLAMPING FORCE	KN	2800
OPENING STROKE	MM	570
PLATEN SIZE	MM*MM	870*850
SPACE BETWEEN TIE BARS	MM*MM	610*590
MOLD THICKNESS (MIN-MAX)	MM	220~620
MAX.DAYLIGHT	MM	1190
HYDRAULIC EJECTION STROKE	MM	160
HYDRAULIC EJECTION FORCE	KN	77
POWER UNIT
HYDRAULIC SYSTEM PRESSURE	MPA	17.5
PUMP MOTOR(V/S)	KW	22/28.3
HEATING CAPACITY	KW	18
NUMBER OF TEMP CONTROL ZONES		5+(NOZZLE )
GENERAL
DRY-CYCLE TIME	SEC	5
OIL TANK CAPACITY	L	380
MACHINE DIMENSIONS	MXMXM	6.41.52.2
MACHINE WEIGHT	KG	11000
