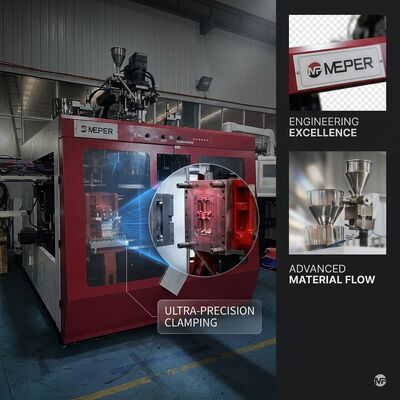

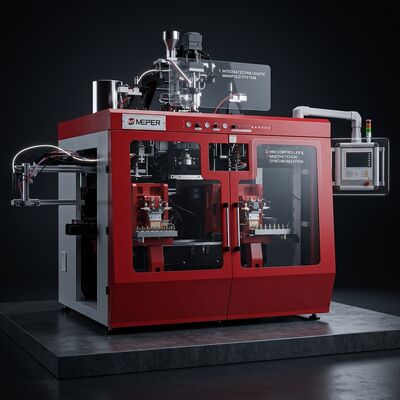

Product Overview
At the core of the MP70FS lies a 70 mm screw with a 24:1 length-to-diameter ratio, a combination chosen to deliver high plasticizing output while holding melt temperature and mixing quality under tight control. For producers of 10 L plastic bottles this means faster cycles and steadier parison weight.
The variable-frequency extrusion motor adjusts screw speed to match demand, so the machine produces only the melt it needs and trims energy use during every run.
Key Features
- 70 mm Screw, 24:1 L/D: A large-diameter screw provides about 90 kg/h plasticizing capacity for HDPE, feeding fast cycles on 10 L bottles.
- Variable-Frequency Extrusion Drive: Motor speed is electronically matched to output demand, reducing power draw while keeping melt quality constant.
- Three-Zone Barrel Heating: Twelve kilowatts of controlled barrel heat and a fan-cooled screw section keep the melt in the ideal processing window.
- Uniform Parison Weight: Microcomputer parison programming holds wall thickness steady, so bottle weight varies little from the first part to the last.
- High-Speed Shuttle Clamping: Linear-guide platens and a toggle frame shorten dry cycle time and protect mould alignment at speed.
- Zero-Flash Parting Line: A hydraulic one-way valve locks the clamping circuit after closing, removing flashes on large bottle moulds.
- Recipe Memory for 40 Moulds: The central controller stores forty mould settings, cutting changeover time between bottle sizes.
Technical Specifications
System Basic Parameters| Parameter | Specification |
|---|
| Applicable Materials | PE, PP, PVC, PA, PC, PS, EVA |
| Max Product Volume | 10 L |
| Number of Die Heads | 1, 2, 3, 4 |
| Mould Clamping Force | 150 kN |
| Platen Opening Stroke | 240 - 600 mm |
| Max Mould Size (W x H) | 500 x 360 mm |
| Screw Diameter | 70 mm |
| Screw L/D Ratio | 24 |
| Plasticizing Capacity (HDPE) | 90 kg/h |
| Machine Dimension (L x W x H) | 3.7 x 3 x 2.5 m |
| Machine Weight | 8 Ton |
| Control System | Centralized Microcomputer, 40 Mould Recipes |
| Voltage | 380V ±10% (50Hz) |
| Parameter | Specification |
|---|
| Total Machine Power | 70 kW |
| Extrusion Motor Power | 18.5 kW (Variable Frequency) |
| Oil Motor Power | 15 kW |
| Head Heating Power | 16.5 kW (10 Zones) |
| Air Pressure | 0.6 - 0.8 MPa |
| Compression Air Volume | 50 m³/h |
| Cooling Water Volume | 55.5 m³/h |
| Average Energy Consumption | 1.5 kW |
| Hydraulic Control | Double Proportional Valve (PQ) |
| Max Oil Pressure | 14 MPa |
This high-output blow molding machine is aimed at beverage, dairy, and edible-oil bottles in the 1 to 10 L range, where throughput and consistent weight directly affect profitability.
It also serves chemical and household bottles such as bleach, disinfectant, and detergent packaging, where a robust screw and stable output keep production predictable.
Product Q&A
Q: Why is a 70 mm screw important?
A: The 70 mm diameter, paired with a 24:1 L/D ratio, raises plasticizing capacity to about 90 kg/h for HDPE, which is what allows fast, stable cycles on 10 L bottles without melt degradation.
Q: Does the screw speed adjust automatically?
A: Yes. The variable-frequency extrusion motor changes screw speed to match demand, so output tracks the cycle and energy use is reduced.
Q: How consistent is bottle weight?
A: Microcomputer parison control keeps wall thickness uniform, so bottle weight stays stable across a long production run.
Q: What products fit this output level?
A: Bottles and containers from roughly 1 to 10 L, including edible-oil, detergent, and chemical bottles, benefit most from this output class.
Packaging & Quality Assurance
Every unit is packed in a standard export package with an optional wooden pallet or wooden case for long-distance sea freight. The machine is CE and ISO9001:2008 certified and is supported by remote commissioning, operator training, wearing-part supply, and responsive after-sales service worldwide.
