Product Overview

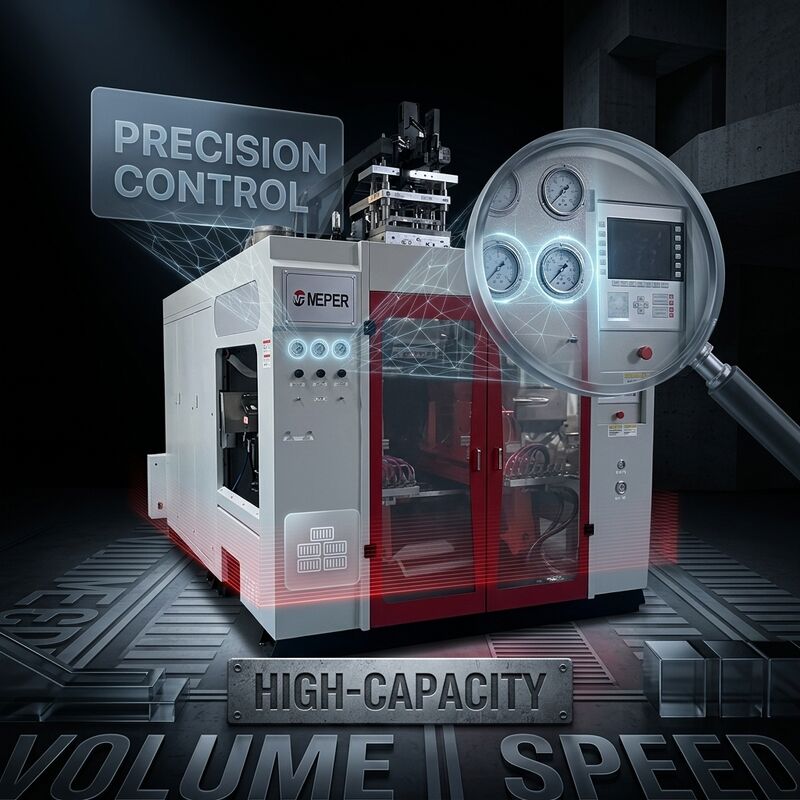

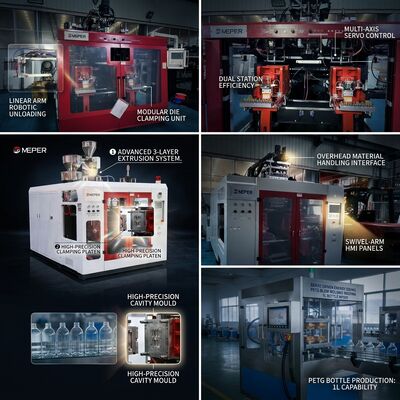

The MP70FS twin station hollow extrusion blow molder is built around a shuttle clamping layout that lets two moulds work in parallel, raising jar output without lengthening the cycle. It is a dependable choice for 10 L plastic jars that must hold shape, seal cleanly, and stack neatly.
A 70 mm screw, electro-hydraulic proportional control, and a parison programmer cooperate to keep jar walls uniform and jar necks burr-free, so downstream capping and filling lines run without interruption.
Key Features
- Twin Station Parallel Moulding: Two clamping stations alternate automatically, nearly doubling the number of jars produced per cycle while drawing moderate power.
- Hollow Body Built for 10 L: The 150 kN clamping force and 500 x 360 mm platen handle large hollow jars with stable mould locking and no deflection.
- 70 mm Screw Plasticizing 90 kg/h: High melt output keeps jars at consistent weight and thickness across a full shift.
- Automatic Neck Calibration: The down-blowing blow pin trims and calibrates the jar neck during inflation for a smooth, burr-free sealing edge.
- Zero-Drift Flashing Control: A liquid control one-way valve hydraulically locks the clamping circuit to eliminate flashes and improve the parting-line appearance.
- Centralized Microcomputer Control: Sequencing, heating, and parison profiles are managed from one panel with forty stored mould recipes.
- Anti-Cold-Start Protection: The variable-frequency extrusion drive cannot rotate until every barrel zone reaches its set temperature, protecting the screw.
Technical Specifications
System Basic Parameters| Parameter | Specification |
|---|
| Applicable Materials | PE, PP, PVC, PA, PC, PS, EVA |
| Max Product Volume | 10 L |
| Number of Die Heads | 1, 2, 3, 4 |
| Mould Clamping Force | 150 kN |
| Platen Opening Stroke | 240 - 600 mm |
| Max Mould Size (W x H) | 500 x 360 mm |
| Screw Diameter | 70 mm |
| Screw L/D Ratio | 24 |
| Plasticizing Capacity (HDPE) | 90 kg/h |
| Machine Dimension (L x W x H) | 3.7 x 3 x 2.5 m |
| Machine Weight | 8 Ton |
| Control System | Centralized Microcomputer, 40 Mould Recipes |
| Voltage | 380V ±10% (50Hz) |
| Parameter | Specification |
|---|
| Total Machine Power | 70 kW |
| Extrusion Motor Power | 18.5 kW (Variable Frequency) |
| Oil Motor Power | 15 kW |
| Head Heating Power | 16.5 kW (10 Zones) |
| Air Pressure | 0.6 - 0.8 MPa |
| Compression Air Volume | 50 m³/h |
| Cooling Water Volume | 55.5 m³/h |
| Average Energy Consumption | 1.5 kW |
| Hydraulic Control | Double Proportional Valve (PQ) |
| Max Oil Pressure | 14 MPa |
Large plastic jars for jams, sauces, pickles, and dried foods are a natural fit, because the twin station layout keeps up with high daily demand.
The machine also produces industrial and household jars for paints, adhesives, cleaning agents, and lubricants, where a sturdy hollow body and a leak-free neck are essential.
Product Q&A
Q: What does twin station mean on a blow molder?
A: Twin station refers to two clamping stations that alternate under one extruder, so the machine forms two mould sets per cycle and raises jar output without a longer dry cycle.
Q: Can it mould 10 L jars reliably?
A: Yes. The 150 kN clamping force and generous platen size hold large jar moulds firmly, keeping walls even and preventing mould deflection at high pressure.
Q: How is the jar neck finished?
A: A down-blowing blow pin calibrates and trims the neck during inflation, leaving a smooth, burr-free edge ready for capping.
Q: Is operator safety covered?
A: The machine uses Category-4 safety door interlocking with dual limit sensors, cutting clamping power the moment a guard opens.
Packaging & Quality Assurance
Every unit is packed in a standard export package with an optional wooden pallet or wooden case for long-distance sea freight. The machine is CE and ISO9001:2008 certified and is supported by remote commissioning, operator training, wearing-part supply, and responsive after-sales service worldwide.
