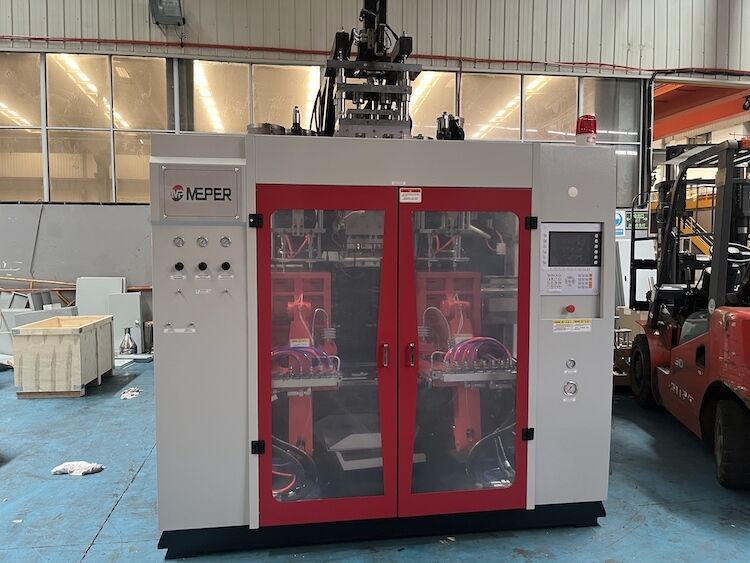

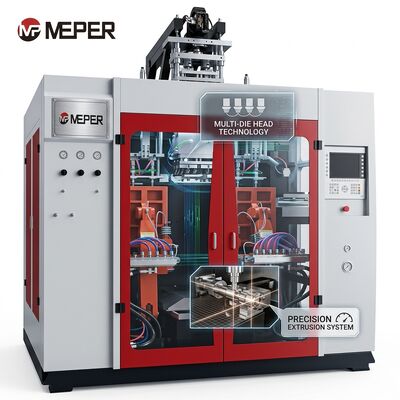

Low-Waste Precision PE Extrusion Blow Molding Machine 80FDE-4S(100)

Low-Waste Precision PE Extrusion Blow Molding Machine 80FDE-4S(100)
Low-Waste Precision PE Extrusion Blow Molding Machine 80FDE-4S(100) Low-Waste Precision PE Extrusion Blow Molding Machine 80FDE-4S(100)

Large Image :  Low-Waste Precision PE Extrusion Blow Molding Machine 80FDE-4S(100)

Product Details:
Place of Origin: China
Brand Name: MEPER
Certification: CE, ISO 9001:2015
Model Number: 80FDE-4S(100)
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $22500 - $35000 / Set
Packaging Details: Seaworthy fumigated wooden case packaging with anti-rust treatment and vacuum-sealed moisture barrier
Delivery Time: 45 Working Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20 Sets per Month
Detailed Product Description
Material: PE / HDPE Max Container Capacity: 500 ML
Number Of Die: 4 Sets Max Mouth Mold Diameter: 35 Mm
Toggle Stroke: 540 Mm Platen Opening: 240 - 600 Mm
Highlight:

Low-Waste PE Extrusion Blow Molding Machine

,

Automatic Blow Moulding Machine with warranty

,

Precision PE Extrusion Machine 80FDE-4S

The 80FDE-4S(100) is a high-performance industrial extrusion blow molding machine engineered for precision and efficiency in plastic packaging production. Featuring a robust 4-die head setup and an advanced 75mm screw diameter, this machine delivers consistent plasticizing capacity (HDPE 85 Kg/h) and a maximum container capacity of 500ml. Designed for high-speed automated operations, it ensures exceptional wall-thickness uniformity, energy efficiency, and reliable continuous output for industrial manufacturing lines.

The 80FDE-4S(100) incorporates multiple design features specifically targeting material waste reduction—a critical profitability lever in high-volume container manufacturing where even 1% flash represents significant annual material cost. The combination of 120 kN precision clamping, programmable parison wall thickness control, and synchronized die head timing achieves flash rates below 3% of shot weight, compared to the 5-8% typical of less refined blow molding systems.

Key Features
  • Sub-3% Flash Rate: Combined precision clamping, optimized parison programming, and synchronized multi-die timing achieve industry-leading flash rates, directly reducing regrind reprocessing costs.
  • Programmable Parison Wall Control: Axial parison wall thickness programming with 100-point resolution enables material distribution exactly where needed, eliminating excess material in low-stress container zones.
  • Synchronized Die Head Timing: Electronic synchronization of all four die head extrusion rates prevents the parison-length variation that causes excess tail flash on shorter-parison cavities.
  • Closed-Loop Melt Pressure Control: Real-time melt pressure feedback adjusts screw RPM to maintain consistent die head pressure, preventing the over-pack flash that occurs during pressure spikes.
  • In-Line Regrind Compatibility: Machine processing stability accommodates up to 30% in-line regrind reintroduction without melt quality degradation, enabling closed-loop material utilization.
Technical Specifications
ParameterSpecification
MaterialPE (Polyethylene) / HDPE
Max Container Capacity500 mL
Number of Die4 Sets
Machine Dimension (LxWxH)3.82 x 4 x 2.5 M
Total Weight8.6 Ton
Clamping Force120 kN
Platen Opening240 - 600 mm
Toggle Stroke540 mm
Max Mould Size (WxH)480 x 500 mm
Screw Diameter75 mm
Screw L/D Ratio24 L/D
Plasticizing Capacity (HDPE)85 Kg/h
Screw Heating Zone3 Zones
Screw Heating Power15.3 kW
Fan Power0.14 kW
Extruder Motor Power22 kW
Die Head Heating Zone15 Zones
Die Head Heating Power16.5 kW
Max Mouth Mold Diameter35 mm
Total Machine Power72 kW
Oil Pump Motor Power15 kW
Air Pressure0.6 - 0.8 MPa
Compression Air Consumption1.5 m³/min
Cooling Water Consumption0.4 m³/min
Applications

Cost-sensitive high-volume manufacturers where raw material represents 60-70% of container production cost. Sustainability-focused producers marketing reduced-carbon-footprint packaging. Operations in markets with extended producer responsibility (EPR) regulations that impose fees based on virgin material consumption.

Packaging & Quality Assurance

Heavy-duty export packaging with ISPM 15 certified fumigated wooden case. The 8.6-ton machine is bolted to a reinforced steel skid base. All electrical cabinets are sealed with desiccant packs. A full set of installation tools, spare heating elements, and seal kits are included in a separately marked accessory box within the main crate.

Every 80FDE-4S(100) undergoes a comprehensive factory acceptance test (FAT) before shipment, including a minimum 8-hour continuous production run with documented quality sampling. Our quality management system is ISO 9001:2015 certified, and all critical components are traceable to material heat lots and machining batch records. We provide 12 months comprehensive warranty covering all manufacturing defects, with remote technical support and spare parts availability guaranteed for 10 years from machine delivery.
