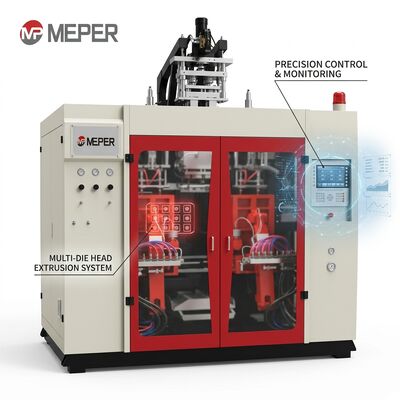

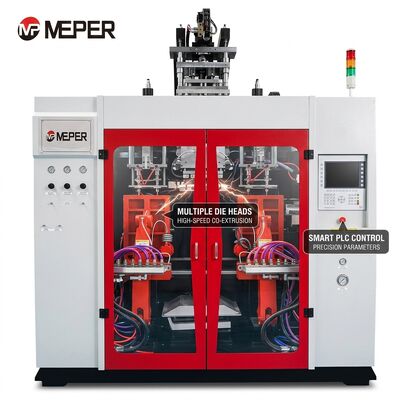

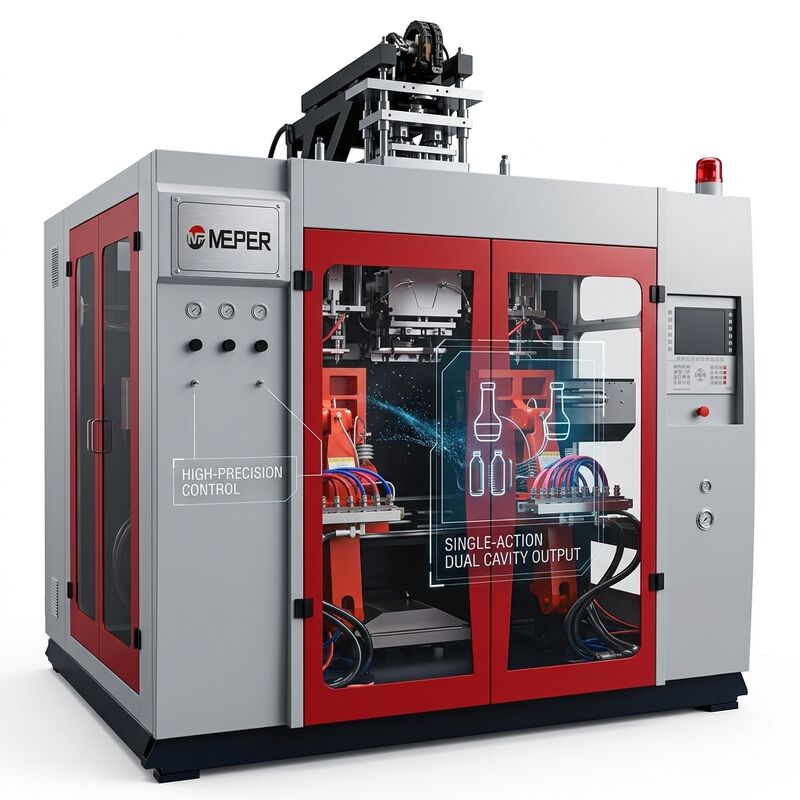

Heavy-Duty 8.6-Ton Industrial Extrusion Blow Molder 80FDE-4S(100)

Heavy-Duty 8.6-Ton Industrial Extrusion Blow Molder 80FDE-4S(100)
Heavy-Duty 8.6-Ton Industrial Extrusion Blow Molder 80FDE-4S(100) Heavy-Duty 8.6-Ton Industrial Extrusion Blow Molder 80FDE-4S(100) Heavy-Duty 8.6-Ton Industrial Extrusion Blow Molder 80FDE-4S(100)

Large Image :  Heavy-Duty 8.6-Ton Industrial Extrusion Blow Molder 80FDE-4S(100)

Product Details:
Place of Origin: China
Brand Name: MEPER
Certification: CE, ISO 9001:2015
Model Number: 80FDE-4S(100)
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $21000 - $28000 / Set
Packaging Details: Seaworthy fumigated wooden case packaging with anti-rust treatment and vacuum-sealed moisture barrier
Delivery Time: 35 Working Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20 Sets per Month
Detailed Product Description
Material: PE / HDPE Max Container Capacity: 500 ML
Number Of Die: 4 Sets Total Weight: 8.6 Ton
Machine Dimension (LxWxH): 3.82 X 4 X 2.5 M Extruder Motor Power: 22 KW
Highlight:

8.6-ton industrial blow molder

,

automatic extrusion blow moulding machine

,

heavy-duty blow molder with warranty

The 80FDE-4S(100) is a high-performance industrial extrusion blow molding machine engineered for precision and efficiency in plastic packaging production. Featuring a robust 4-die head setup and an advanced 75mm screw diameter, this machine delivers consistent plasticizing capacity (HDPE 85 Kg/h) and a maximum container capacity of 500ml. Designed for high-speed automated operations, it ensures exceptional wall-thickness uniformity, energy efficiency, and reliable continuous output for industrial manufacturing lines.

At 8.6 tons with a 3.82 x 4 x 2.5 meter footprint, the 80FDE-4S(100) is engineered as a permanent industrial asset rather than a disposable production tool. The heavy-gauge steel frame absorbs molding forces without deflection, maintaining platen parallelism over decades of continuous operation. This structural integrity directly translates to consistent part quality, as mold alignment drift—a common failure mode in lighter machines—is virtually eliminated.

Key Features
  • 8.6-Ton Reinforced Steel Frame: Heavy-gauge structural steel construction with robotic-welded joints absorbs 120 kN clamping forces without frame deflection, ensuring decades of precise mold alignment.
  • Industrial-Grade Gearbox: Hardened and ground helical gear transmission rated for continuous 24/7 duty cycles, eliminating the premature gear wear common in lighter commercial-grade drive trains.
  • Reinforced Tie-Bar Assembly: Oversized chrome-plated tie bars with hardened bushings maintain platen guidance accuracy through millions of cycles, preventing the progressive misalignment that causes flash defects.
  • Thermal-Stable Base Casting: Stress-relieved cast iron base platform provides vibration damping and thermal stability, ensuring dimensional consistency across ambient temperature fluctuations in factory environments.
  • Lifetime-Lubricated Linear Bearings: Sealed bearing assemblies on all moving platens eliminate daily lubrication maintenance, reducing operator intervention and preventing contamination of molded products.
Technical Specifications
ParameterSpecification
MaterialPE (Polyethylene) / HDPE
Max Container Capacity500 mL
Number of Die4 Sets
Machine Dimension (LxWxH)3.82 x 4 x 2.5 M
Total Weight8.6 Ton
Clamping Force120 kN
Platen Opening240 - 600 mm
Toggle Stroke540 mm
Max Mould Size (WxH)480 x 500 mm
Screw Diameter75 mm
Screw L/D Ratio24 L/D
Plasticizing Capacity (HDPE)85 Kg/h
Screw Heating Zone3 Zones
Screw Heating Power15.3 kW
Fan Power0.14 kW
Extruder Motor Power22 kW
Die Head Heating Zone15 Zones
Die Head Heating Power16.5 kW
Max Mouth Mold Diameter35 mm
Total Machine Power72 kW
Oil Pump Motor Power15 kW
Air Pressure0.6 - 0.8 MPa
Compression Air Consumption1.5 m³/min
Cooling Water Consumption0.4 m³/min
Applications

High-volume manufacturers running 24/7 production schedules in demanding environments, including factories in tropical climates where ambient heat and humidity challenge lighter machines. The robust construction makes it suitable for operations in regions with unstable power grids where voltage fluctuations could damage sensitive electronics in lighter equipment.

Packaging & Quality Assurance

Export-standard fumigated wooden crate packaging with reinforced steel strapping protects the 80FDE-4S(100) during ocean freight. Critical components are separately wrapped in VCI (Volatile Corrosion Inhibitor) film. The complete package includes a tool kit, spare parts kit, and comprehensive English-language technical documentation.

Every 80FDE-4S(100) undergoes a comprehensive factory acceptance test (FAT) before shipment, including a minimum 8-hour continuous production run with documented quality sampling. Our quality management system is ISO 9001:2015 certified, and all critical components are traceable to material heat lots and machining batch records. We provide 12 months comprehensive warranty covering all manufacturing defects, with remote technical support and spare parts availability guaranteed for 10 years from machine delivery.
