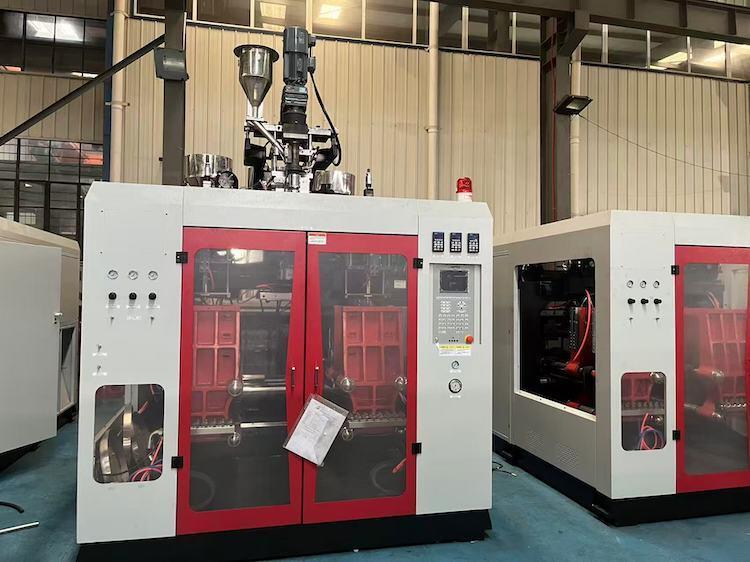

22kW Motor Driven Extrusion Blow Molding Machine

22kW Motor Driven Extrusion Blow Molding Machine
22kW Motor Driven Extrusion Blow Molding Machine 22kW Motor Driven Extrusion Blow Molding Machine

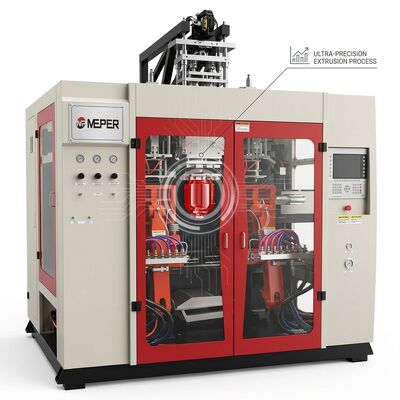

Large Image :  22kW Motor Driven Extrusion Blow Molding Machine

Product Details:
Place of Origin: China
Brand Name: MEPER
Certification: CE, ISO 9001:2015
Model Number: 80FDE-4S(100)
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $22500 - $28000 / Set
Packaging Details: Seaworthy fumigated wooden case packaging with anti-rust treatment and vacuum-sealed moisture barrier
Delivery Time: 35 Working Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20 Sets per Month
Detailed Product Description
Material: PE / HDPE Max Container Capacity: 500 ML
Number Of Die: 4 Sets Extruder Motor Power: 22 KW
Power Of Oil Pump Motor: 15 KW Fan Power: 0.14 KW
Highlight:

22kW extrusion blow molding machine

,

automatic blow molding machine with motor

,

motor driven blow molding equipment

The 80FDE-4S(100) is a high-performance industrial extrusion blow molding machine engineered for precision and efficiency in plastic packaging production. Featuring a robust 4-die head setup and an advanced 75mm screw diameter, this machine delivers consistent plasticizing capacity (HDPE 85 Kg/h) and a maximum container capacity of 500ml. Designed for high-speed automated operations, it ensures exceptional wall-thickness uniformity, energy efficiency, and reliable continuous output for industrial manufacturing lines.

The 22 kW extruder motor on the 80FDE-4S(100) provides the robust driving force behind its 85 Kg/h plasticizing performance. This oversized power rating—exceeding the actual running demand—delivers substantial torque reserve for processing high-viscosity HDPE grades, recycled materials, and heavily pigmented compounds that challenge under-powered extruders. The direct-coupled helical gear transmission achieves 95%+ mechanical efficiency, converting motor power into screw torque with minimal losses.

Key Features
  • 22 kW Oversized Motor Rating: Power headroom above steady-state demand provides torque reserve for processing high-molecular-weight HDPE and heavily filled compounds without RPM sag.
  • 95%+ Efficient Helical Gear Drive: Direct-coupled precision-ground helical gear transmission with hardened tooth profiles converts motor power to screw torque with industry-leading mechanical efficiency.
  • Variable Frequency Drive Ready: Motor compatibility with VFD speed control enables screw RPM optimization for different materials and container wall thickness requirements without pulley changes.
  • Thermal Overload Protection: Integrated motor thermal protection with automatic current monitoring prevents winding damage during extended high-torque operation with viscous materials.
  • Soft-Start Motor Control: Programmed ramp-up starting sequence reduces mechanical shock on gearbox and screw during cold starts, extending drive train service life in frequent start-stop operations.
Technical Specifications
ParameterSpecification
MaterialPE (Polyethylene) / HDPE
Max Container Capacity500 mL
Number of Die4 Sets
Machine Dimension (LxWxH)3.82 x 4 x 2.5 M
Total Weight8.6 Ton
Clamping Force120 kN
Platen Opening240 - 600 mm
Toggle Stroke540 mm
Max Mould Size (WxH)480 x 500 mm
Screw Diameter75 mm
Screw L/D Ratio24 L/D
Plasticizing Capacity (HDPE)85 Kg/h
Screw Heating Zone3 Zones
Screw Heating Power15.3 kW
Fan Power0.14 kW
Extruder Motor Power22 kW
Die Head Heating Zone15 Zones
Die Head Heating Power16.5 kW
Max Mouth Mold Diameter35 mm
Total Machine Power72 kW
Oil Pump Motor Power15 kW
Air Pressure0.6 - 0.8 MPa
Compression Air Consumption1.5 m³/min
Cooling Water Consumption0.4 m³/min
Applications

Manufacturers processing challenging materials including high-viscosity HDPE, post-consumer recycled content, and heavily pigmented compounds that increase screw torque demand. The motor power reserve supports production of thick-walled industrial containers requiring higher back-pressure during plasticizing. Facilities with unstable power supply benefit from the motor's ability to maintain output despite voltage fluctuations.

Packaging & Quality Assurance

Heavy-duty export packaging with ISPM 15 certified fumigated wooden case. The 8.6-ton machine is bolted to a reinforced steel skid base. All electrical cabinets are sealed with desiccant packs. A full set of installation tools, spare heating elements, and seal kits are included in a separately marked accessory box within the main crate.

Every 80FDE-4S(100) undergoes a comprehensive factory acceptance test (FAT) before shipment, including a minimum 8-hour continuous production run with documented quality sampling. Our quality management system is ISO 9001:2015 certified, and all critical components are traceable to material heat lots and machining batch records. We provide 12 months comprehensive warranty covering all manufacturing defects, with remote technical support and spare parts availability guaranteed for 10 years from machine delivery.
