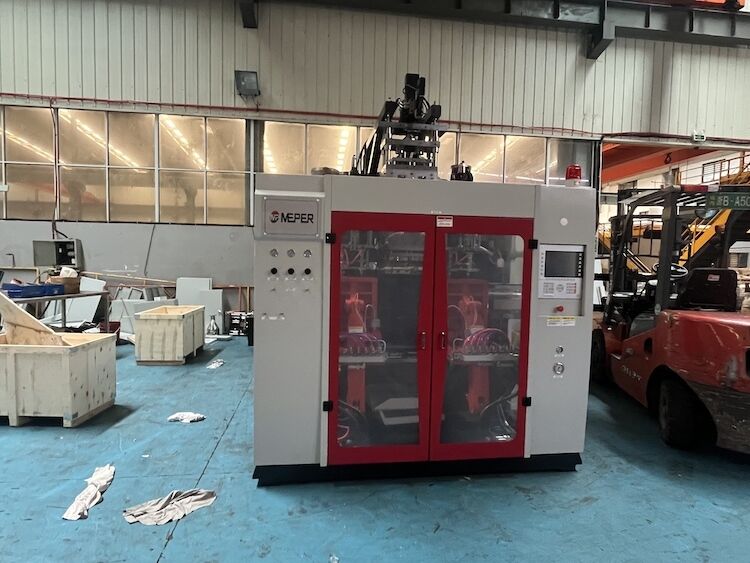

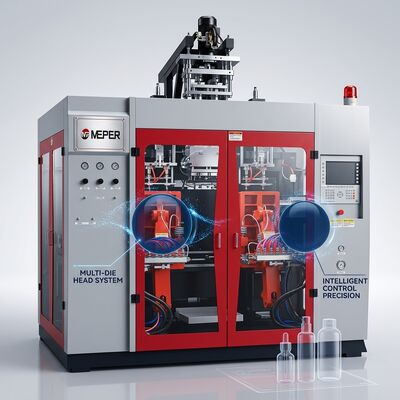

85kg/h High-Capacity PE Extrusion Blow Molder Meper 80FD

The 80FDE-4S(100) is a high-performance industrial extrusion blow molding machine engineered for precision and efficiency in plastic packaging production. Featuring a robust 4-die head setup and an advanced 75mm screw diameter, this machine delivers consistent plasticizing capacity (HDPE 85 Kg/h) and a maximum container capacity of 500ml. Designed for high-speed automated operations, it ensures exceptional wall-thickness uniformity, energy efficiency, and reliable continuous output for industrial manufacturing lines.

Delivering 85 Kg/h of HDPE plasticizing capacity, the 80FDE-4S(100) positions itself as a high-throughput workhorse for volume-driven container manufacturing. This output rate, achieved through the combination of a 75mm diameter screw, 24:1 L/D ratio, and 22 kW extruder drive, translates to approximately 1,700-2,000 containers per hour across the four die heads (for 500ml / 30g bottles). The 0.14 kW barrel cooling fan maintains thermal equilibrium at sustained high throughput, preventing the overheating that limits output on lesser machines.

• 85 Kg/h Sustained HDPE Output: Continuous 85 Kg/h plasticizing capacity verified across 24-hour production trials, enabling annual container output exceeding 15 million units on single-shift operation.
• 22 kW High-Torque Extruder Drive: Oversized motor with direct-coupled helical gearbox delivers consistent screw torque at production speeds, preventing the RPM droop that reduces output during peak demand.
• Forced-Air Barrel Cooling: 0.14 kW fan with thermostatically controlled activation prevents barrel overheating during sustained high-throughput operation, maintaining consistent melt temperature without output reduction.
• Balanced Material Flow Distribution: Flow channel geometry within the die head manifold ensures equal material delivery to all four die orifices, maintaining per-cavity output consistency at maximum throughput rates.
• Sustained-Rate Thermal Equilibrium: Combined 31.8 kW heating capacity (15.3 kW screw + 16.5 kW die head) with active cooling maintains stable thermal conditions at continuous full-rate operation without degradation.

High-volume contract manufacturers and brand-owner in-house operations producing millions of containers annually. The throughput capacity supports supply agreements requiring just-in-time delivery of packaging to high-speed filling lines. Markets with seasonal demand spikes (beverage season, holiday gift sets) benefit from the machine's ability to build buffer inventory during off-peak periods.

The 80FDE-4S(100) is securely packed in a seaworthy wooden case with vacuum-sealed moisture barrier film. All exposed metal surfaces receive anti-rust treatment. The machine is anchored to the pallet base with vibration-dampening mounts. Documentation including operation manual, electrical schematics, and installation guide is included in a waterproof document pouch.

Every 80FDE-4S(100) undergoes a comprehensive factory acceptance test (FAT) before shipment, including a minimum 8-hour continuous production run with documented quality sampling. Our quality management system is ISO 9001:2015 certified, and all critical components are traceable to material heat lots and machining batch records. We provide 12 months comprehensive warranty covering all manufacturing defects, with remote technical support and spare parts availability guaranteed for 10 years from machine delivery.
