Energy-Saving 120kW Extrusion Blow Molding Machine 100mm MP100FD

Energy-Saving 120kW Extrusion Blow Molding Machine 100mm MP100FD
Energy-Saving 120kW Extrusion Blow Molding Machine 100mm MP100FD Energy-Saving 120kW Extrusion Blow Molding Machine 100mm MP100FD Energy-Saving 120kW Extrusion Blow Molding Machine 100mm MP100FD

Large Image :  Energy-Saving 120kW Extrusion Blow Molding Machine 100mm MP100FD

Product Details:
Place of Origin: NINGBO, CHINA
Brand Name: MEPER
Certification: CE/ISO9001:2008
Model Number: MP100FD
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Price negotiation
Packaging Details: Standard export fumigated wooden pallet, protective film wrapping
Delivery Time: 30-50 work days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per month
Detailed Product Description
Highlight:

120kW extrusion blow molding machine

,

automatic blow moulding machine with warranty

,

100mm MP100FD blow molding machine

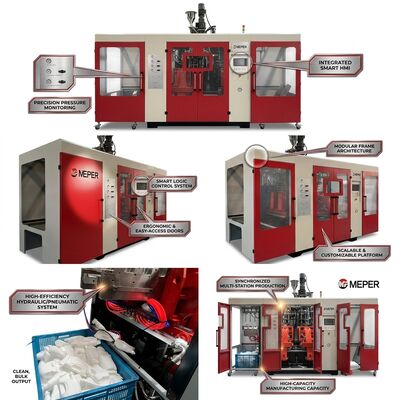

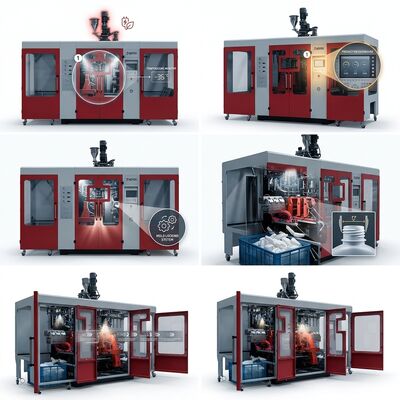

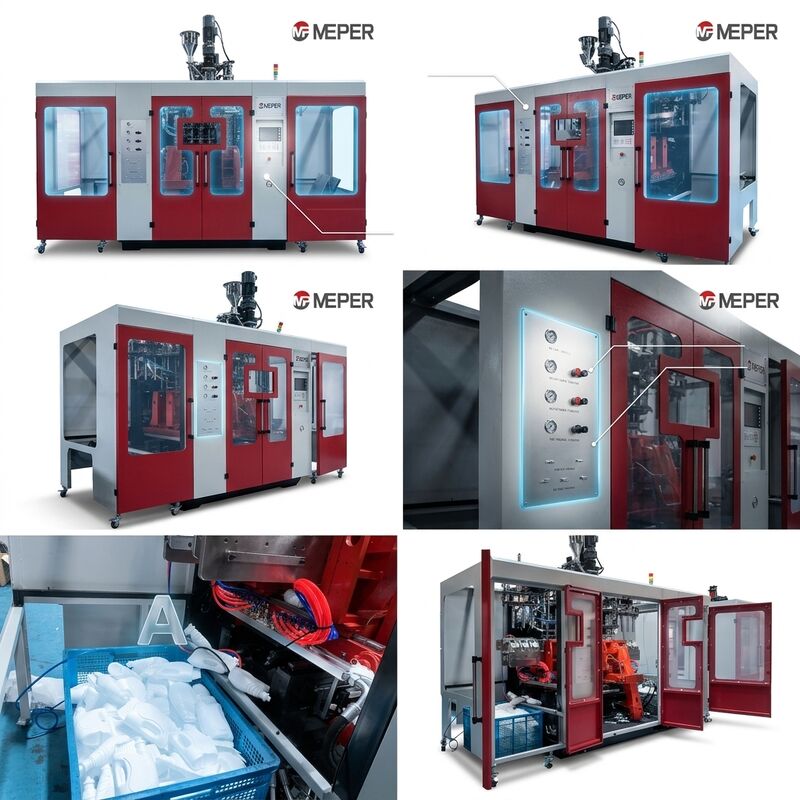

The MEPER MP100FD is an industrial-grade extrusion blow molding machine engineered around a 100mm diameter screw extruder achieving 180kg/h plasticizing capacity for HDPE. With 200kN hydraulic clamping force, 750mm plate stroke, and 700x420mm maximum mold dimensions, this double-station machine handles large-format blow molding applications from 5ml to 100-liter product volumes. The 14-zone precision die head with 30kW total heating power, combined with 4-zone barrel heating at 17.4kW, provides the comprehensive thermal management essential for consistent parison formation across a wide range of materials including PE, PP, PVC, PA, PC, PS, and EVA. Built on a robust 17.4-ton machine base and powered by a 55kW extruder motor with 30kW hydraulic pump, the MP100FD delivers the production capability that demanding industrial blow molding operations require. The computer-controlled system with 40-mold program memory, double-proportional hydraulic control, and automated fault detection ensures reliable operation across continuous production cycles.

Key Features
  • Optimized 120kW Total Power System: Strategic power distribution across 55kW extruder, 30kW hydraulic pump, 17.4kW screw heating, and 30kW die head heating minimizes total energy consumption while maintaining 180kg/h production output.
  • Variable Frequency Extruder Control: The 55kW extruder motor with VFD technology adjusts rotation speed based on actual material demand rather than running at constant speed, reducing energy consumption during partial-output production scenarios.
  • PID-Regulated Heating Efficiency: 4-zone screw heating and 14-zone die head heating with PID control apply power only when temperature drops below setpoint, preventing the energy waste of simple on/off thermostatic control systems.
  • Toggle Clamping Energy Advantage: The mechanical toggle mechanism amplifies hydraulic force at mold closure, allowing a 30kW oil pump to deliver 200kN clamping force without the energy losses of direct hydraulic clamping systems.
  • Active Cooling Power Management: 0.56kW screw fan cooling provides targeted thermal dissipation at critical barrel zones, reducing reliance on energy-intensive cooling water systems and maintaining optimal processing temperatures.
  • Double-Station Efficiency: Alternating station operation eliminates idle time and reduces per-unit energy consumption compared to single-station machines, as the extruder runs continuously rather than cycling on and off between mold changes.
  • Standby Mode Reduction: Automated power reduction during production pauses lowers energy consumption during mold changes and maintenance periods, with rapid thermal recovery enabling quick return to full production without extended warm-up cycles.
Technical Specifications
ParameterSpecification
Applicable MaterialsPE, PP, PVC, PA, PC, PS, EVA
Product Volume Range5ml - 100L
Machine Dimension (LxWxH)3.5 x 5.6 x 2.65 m
Total Machine Weight17.4 Tons
Clamping Force200 kN
Platen Opening Range240 - 640 mm
Plate Stroke750 mm
Maximum Mold Size (WxH)700 x 420 mm
Screw Diameter100 mm
Screw L/D Ratio26:1
Plasticizing Capacity (HDPE)180 Kg/h
Screw Heating Zones / Power4 Zones / 17.4 kW
Extruder Motor Power55 kW
Screw Fan Power0.56 kW
Die Head Heating Zones / Power14 Zones / 30 kW
Total Machine Power120 kW
Oil Pump Motor Power30 kW
Operating Air Pressure0.6 - 1.0 MPa
Compressed Air Consumption1.2 m³/min
Cooling Water Consumption1000 L/min
Applications

The MP100FD's 120kW optimized power architecture delivers particular value for manufacturers operating in regions with high industrial electricity costs. European, Japanese, and North American manufacturing facilities where energy costs constitute a significant percentage of total production expenses benefit from the machine's efficient power distribution. Multi-machine installations see compounded savings when replacing older, less efficient blow molding equipment with MP100FD units. The variable frequency extruder control provides additional savings during partial-capacity production scenarios where constant-speed machines waste energy. Environmentally certified manufacturers tracking carbon footprint metrics leverage the machine's documented energy performance for sustainability reporting and green manufacturing certification programs. The reduced facility infrastructure requirements for electrical supply, cooling water, and compressed air systems generate additional capital expenditure savings for new factory setups.

Packaging and Quality Assurance

Each MP100FD undergoes comprehensive factory acceptance testing including 48-hour continuous operation validation, parison weight consistency analysis, hydraulic system pressure retention testing, and complete thermal system calibration across all 18 heating zones. Export packaging utilizes ISPM-15 certified heavy-duty wooden pallets rated for the 17.4-ton machine weight, multi-layer VCI anti-corrosion protective film, high-density closed-cell foam impact protection at critical components, and bolt-on steel shipping brackets for container transport stability. Delivered accessories include complete maintenance toolkit, spare heating bands for all zones, hydraulic and pneumatic seal replacement kit, and comprehensive English-language technical documentation with electrical schematics, PLC parameter settings, and preventive maintenance schedule. CE and ISO9001:2008 certification documents provided. Standard 12-month warranty with remote technical support; extended warranty and on-site installation with operator training packages available worldwide.
