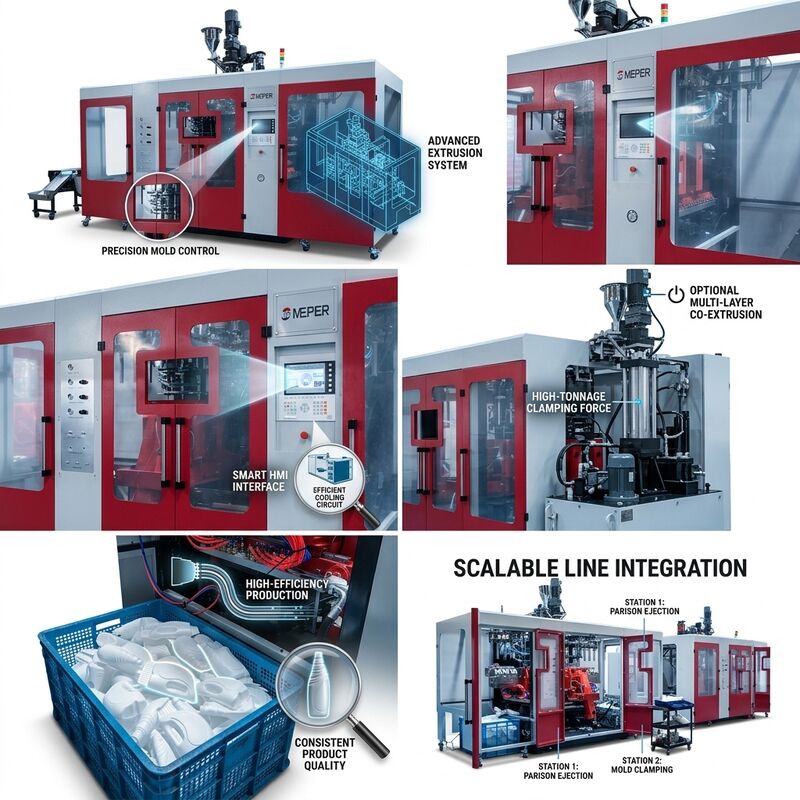

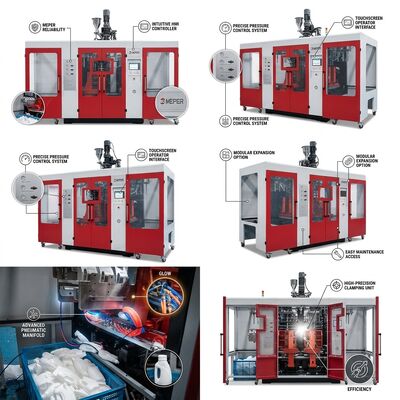

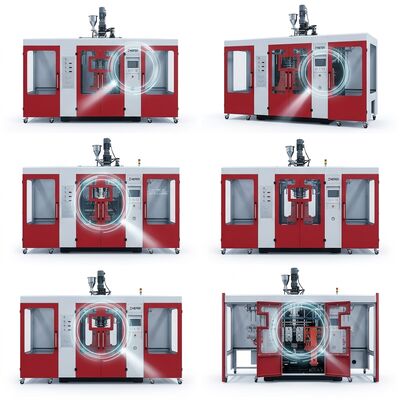

High Output 180kg/h PE Extrusion Blow Molding Machine MP100FD

High Output 180kg/h PE Extrusion Blow Molding Machine MP100FD
High Output 180kg/h PE Extrusion Blow Molding Machine MP100FD High Output 180kg/h PE Extrusion Blow Molding Machine MP100FD High Output 180kg/h PE Extrusion Blow Molding Machine MP100FD

Large Image :  High Output 180kg/h PE Extrusion Blow Molding Machine MP100FD

Product Details:
Place of Origin: NINGBO, CHINA
Brand Name: MEPER
Certification: CE/ISO9001:2008
Model Number: MP100FD
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Price negotiation
Packaging Details: Standard export fumigated wooden pallet, protective film wrapping
Delivery Time: 30-50 work days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per month
Detailed Product Description
Highlight:

PE extrusion blow molding machine 180kg/h

,

automatic blow molding machine high output

,

MP100FD blow molding machine with warranty

The MEPER MP100FD is an industrial-grade extrusion blow molding machine engineered around a 100mm diameter screw extruder achieving 180kg/h plasticizing capacity for HDPE. With 200kN hydraulic clamping force, 750mm plate stroke, and 700x420mm maximum mold dimensions, this double-station machine handles large-format blow molding applications from 5ml to 100-liter product volumes. The 14-zone precision die head with 30kW total heating power, combined with 4-zone barrel heating at 17.4kW, provides the comprehensive thermal management essential for consistent parison formation across a wide range of materials including PE, PP, PVC, PA, PC, PS, and EVA. Built on a robust 17.4-ton machine base and powered by a 55kW extruder motor with 30kW hydraulic pump, the MP100FD delivers the production capability that demanding industrial blow molding operations require. The computer-controlled system with 40-mold program memory, double-proportional hydraulic control, and automated fault detection ensures reliable operation across continuous production cycles.

Key Features
  • Industry-Leading 180kg/h Throughput: The 100mm screw extruder with optimized 26:1 L/D ratio achieves sustained 180kg/h plasticizing output for HDPE, enabling production volumes that smaller machines cannot match in continuous operation.
  • 4-Zone High-Power Heating: 17.4kW distributed across 4 independently controlled screw heating zones ensures rapid thermal recovery during high-speed cycling, maintaining consistent melt quality at maximum throughput rates.
  • 55kW Extruder Motor Power: The industrial-grade drive system delivers the torque required for high-throughput plastication of PE resins, with variable frequency control optimizing energy consumption across different production rates.
  • Double-Station Parallel Processing: While one mold station cools, the other receives fresh parison, effectively doubling effective production rate compared to single-station configurations of equivalent screw capacity.
  • 120kW Balanced Power Distribution: Strategic allocation of 55kW extruder, 30kW hydraulic pump, 17.4kW screw heating, and 30kW die head heating eliminates bottlenecks that limit sustained high-output operation in other machine designs.
  • Rapid Cycle Capability: 750mm plate stroke with 200kN clamping and 240-640mm platen opening supports fast mold open/close sequences, minimizing cycle dead time in high-volume production environments.
  • Continuous Production Durability: The 17.4-ton machine base provides the vibration damping and structural stability needed for 24/7 operation at maximum throughput, with active cooling maintaining thermal equilibrium across extended runs.
Technical Specifications
ParameterSpecification
Applicable MaterialsPE, PP, PVC, PA, PC, PS, EVA
Product Volume Range5ml - 100L
Machine Dimension (LxWxH)3.5 x 5.6 x 2.65 m
Total Machine Weight17.4 Tons
Clamping Force200 kN
Platen Opening Range240 - 640 mm
Plate Stroke750 mm
Maximum Mold Size (WxH)700 x 420 mm
Screw Diameter100 mm
Screw L/D Ratio26:1
Plasticizing Capacity (HDPE)180 Kg/h
Screw Heating Zones / Power4 Zones / 17.4 kW
Extruder Motor Power55 kW
Screw Fan Power0.56 kW
Die Head Heating Zones / Power14 Zones / 30 kW
Total Machine Power120 kW
Oil Pump Motor Power30 kW
Operating Air Pressure0.6 - 1.0 MPa
Compressed Air Consumption1.2 m³/min
Cooling Water Consumption1000 L/min
Applications

The MP100FD is purpose-built for high-volume manufacturing operations where throughput directly determines business competitiveness. Contract blow molding operations running 24/7 depend on the 180kg/h sustained output to meet demanding customer delivery schedules. Multi-national consumer goods packaging suppliers integrate multiple MP100FD units into coordinated production cells achieving enterprise-level container output. The machine's 120kW balanced power architecture and 55kW extruder drive support continuous operation with scheduled maintenance intervals rather than unplanned stoppages. For operations transitioning from multiple smaller machines, a single MP100FD can replace several legacy units while reducing floor space, operator headcount, and per-unit energy consumption through efficient 120kW total power design.

Packaging and Quality Assurance

Each MP100FD undergoes comprehensive factory acceptance testing including 48-hour continuous operation validation, parison weight consistency analysis, hydraulic system pressure retention testing, and complete thermal system calibration across all 18 heating zones. Export packaging utilizes ISPM-15 certified heavy-duty wooden pallets rated for the 17.4-ton machine weight, multi-layer VCI anti-corrosion protective film, high-density closed-cell foam impact protection at critical components, and bolt-on steel shipping brackets for container transport stability. Delivered accessories include complete maintenance toolkit, spare heating bands for all zones, hydraulic and pneumatic seal replacement kit, and comprehensive English-language technical documentation with electrical schematics, PLC parameter settings, and preventive maintenance schedule. CE and ISO9001:2008 certification documents provided. Standard 12-month warranty with remote technical support; extended warranty and on-site installation with operator training packages available worldwide.
