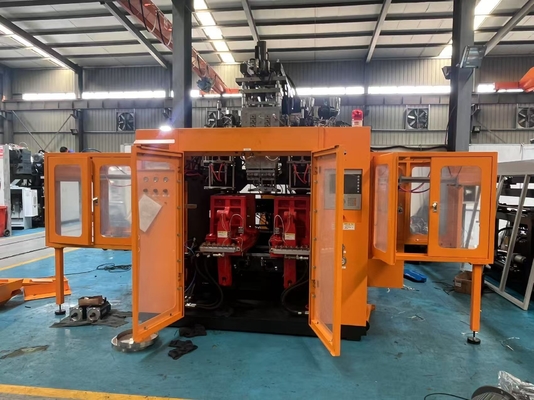

5L Granule Extrusion Molding Machine for Plastic Hollow Products

MP plastic blow molding machine is designed for processing various plastic hollow products with a high molecular profile. The machine is capable of producing hollow items ranging from 5 milliliters to 100 liters in size. These products encompass a wide range of items including bottles, pots, jars, barrels, toys, tool boxes, bed boards, desk boards, chairs, and automotive parts, among others.

The machine is versatile and can work with a variety of materials such as PE, PP, PVC, PA, PC, PS, and EVA. Moreover, it ensures a flawless manufacturing process resulting in high-quality output.

Features:

Features

a) Extruding device adopts variable frequency motor which can satisfy the requirements of rotation change of screw during blowing process. Screw with big slenderness ratio can be used to process many kinds of materials and has strong plasticizing ability, high production and low energy consumption. The barrel adopts resistance heater which is controlled by computer and heats quickly, stably and equably.

b) By installing different head in a combined extrusion system between two extrusion machines, they can blow products with a view strip line or double layers.

c) Mould clamping device adopts a toggle type and linear guider. Double station, the speed of mould platen moving more quickly and stably.

d) Improved design of hydraulic oil loop. Power-saving, rapid and stable.

e) Installation and maintenance of hydraulic elements are convenient. Equipped with a removable and mobilizable oil tank.

f) The whole machine is controlled by a computer. The hydraulic system adopts double proportional control. This machine has fault automatic alarm, reliable operation, high automation, and data memory of 40 sets of molds.

g) Three operation modes - "Manual," "Semi-Auto," "Full Auto" - are allowed to select.

h) Safety door adopts electric and mechanical safety devices (no mold closing happens when the safety door opens) which make operation safe and reliable.

i) This machine has two blowing functions of straight cutting and oblique cutting.

Technical Parameters:

• Applicable materials: PE PP PVC PA…
• Max product volume: 5 L
• Number of heads: 1, 2, 3, 4 SET
• Machine dimension (LxWxH): 3.6×2.3×2.36 M
• Machine weight: 4.9 TON

• Mould clamping force: 90 KN
• Platen opening strokes: 180-480 MM
• Plate stroke: 300
• Max mould sizes (WxH): 400×420 MM

• Screw diameter: 80 MM
• Screw slenderness ratio (L/D): 24
• Plasticizing ability (HDPE): 90 KG/H
• Screw heating stage/zone: 4 Zone
• Screw heating power: 15.85 KW
• Screw fan power: 0.28 KW
• Extrusion motor power: 30 KW

• Head heating stage/zone: 10 Zone
• Head heating power: 16.5 KW

• Total machine power: 80 KW
• Oil motor power: 11 KW
• Air pressure: 0.6-0.8 MPA
• Compression air volume: 1.2 M3/H
• Cooling water volume: 0.4 M3/H

Applications:

• Pipes, rods, and profiles: Production of PVC pipes, PE pipes, ABS rods, window and door profiles, etc.
• Films and sheets: Used to make stretch film, packaging film, PET sheets, etc.
• Cable sheathing: Extrusion of plastic sheaths for electrical wires and cables.
• Woven bag fibers: For polypropylene fiber extrusion used in woven bags.

• Tire treads, seals, and hoses: Continuous extrusion of rubber components.
• Rubber insulation for cables: Provides enhanced thermal and electrical insulation.

• Extruded snack production: Used in making puffed snacks like corn curls, rings, etc.
• Noodles and pasta: Extrusion of rice noodles, spaghetti, and other starch-based products.

Extrusion of aluminum, copper, and other metals for manufacturing profiles, heat sinks, structural parts, etc.

Production of plastic or composite building materials such as panels, flooring, roofing tiles, window frames.

• Functional material extrusion: For conductive plastics, flame-retardant materials, fiber-reinforced composites.
• Laboratory-scale extruders: Used for research and development of new polymers.

• Medical tubing: Production of IV tubes, catheters, and other medical-grade polymer tubes.
• Controlled-release drug materials: Extrusion of polymers used in drug delivery systems.
