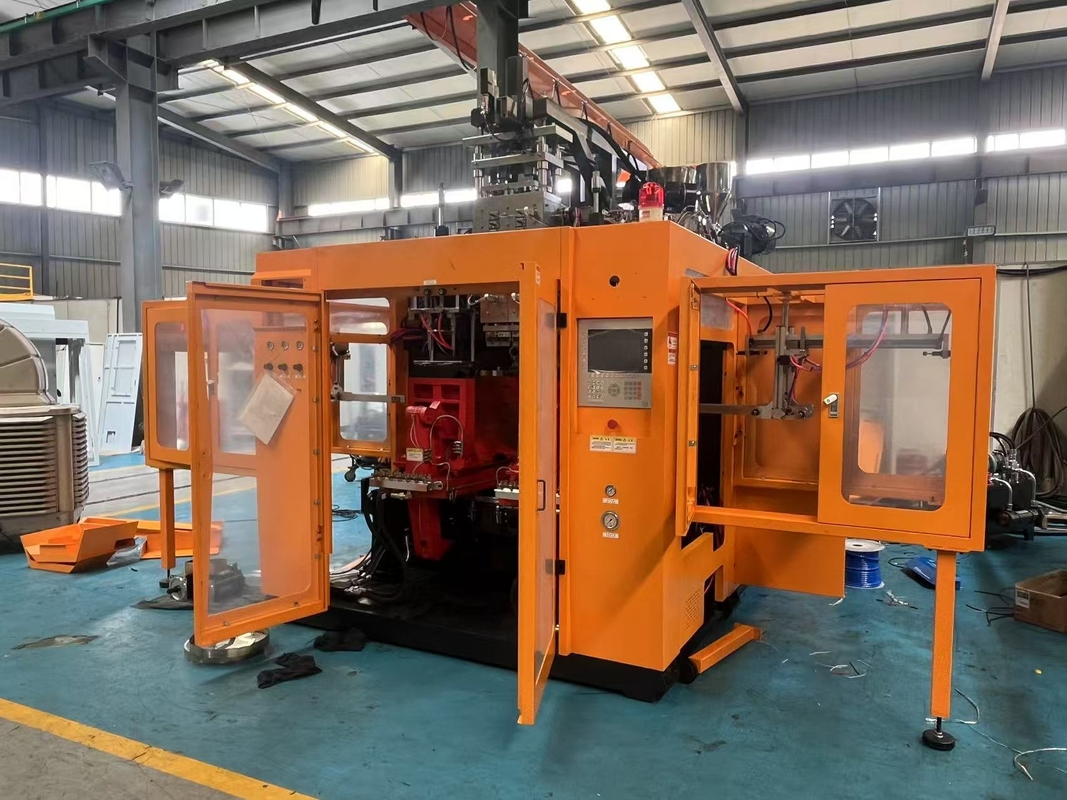

MEPER 70FD 4.9ton Plastic Extrusion Machine for PE PP PVC PA

Product Description:

The MP plastic blow molding machine is designed for processing various plastic hollow products with high molecular weight. It is capable of manufacturing hollow products ranging from 5 milliliters to 100 liters. This includes a wide range of items such as bottles, pots, jars, barrels, toys, tool boxes, bed boards, desk boards, chairs, and automotive parts.

Not only can this machine blow different materials like PE, PP, PVC, PA, PC, PS, and EVA, but it also offers a flawless production process for creating these products.

Features:

a) Extruding device adopts variable frequency motor which can satisfy the requirements of rotation change of screw during blowing process. Screw with big slenderness ratio can be used to process many kinds of materials and has strong plasticizing ability, high production and low energy consumption. The barrel adopts resistance heater which is controlled by computer and heats quickly, stably and equably.

b) By installing different head in combined extrusion system between two extrusion machines, they can blow products with view strip line or double layers.

c) Mould clamping device adopts toggle type and linear guider. Double station, the speed of mould platen moving more quickly and stably.

d) Improved design of hydraulic oil loop. Power saving, rapid and stable.

e) Installation and maintenance of hydraulic elements are convenient. Equipped with removable and mobilizable oil tank.

f) The whole machine is controlled by computer. The hydraulic system adopts double proportional control. This machine has fault automatic alarm, reliable operation, high automation and data memory of 40 sets of moulds.

g) Three operation modes - "Manual", "Semi Auto", "Full Auto" - are allowed to select.

h) Safety door adopts electric and mechanical safety devices (no mould closing happens when safety door opens) which make operation safe and reliable.

i) This machine has two blowing functions of straight cutting and oblique cutting.

Technical Parameters:

Applicable materials: PE PP PVC PA…
Max product volume: 5 L
Number of heads: 1, 2, 3, 4
Machine dimension (LxWxH): 3.6×2.3×2.36 M
Machine weight: 4.9 TON

Mould clamping force: 90 KN
Platen opening strokes: 180-480 MM
Plate stroke: 300
Max mould sizes (WxH): 400×420 MM

Screw diameter: 80 MM
Screw slenderness ratio: 24 L/D
Plasticizing ability (HDPE): 90 KG/H
Screw heating stage/zone: 4 Zone
Screw heating power: 15.85 KW
Screw fan power: 0.28 KW
Extrusion motor power: 30 KW

Head heating stage/zone: 10 Zone
Head heating power: 16.5 KW

Total machine power: 80 KW
Oil motor power: 11 KW
Air pressure: 0.6-0.8 MPA
Compression air volume: 1.2 M3/H
Cooling water volume: 0.4 M3/H

Applications:

1. Plastics Industry
Pipes, rods, and profiles: Production of PVC pipes, PE pipes, ABS rods, window and door profiles, etc.
Films and sheets: Used to make stretch film, packaging film, PET sheets, etc.
Cable sheathing: Extrusion of plastic sheaths for electrical wires and cables.
Woven bag fibers: For polypropylene fiber extrusion used in woven bags.

2. Rubber Industry
Tire treads, seals, and hoses: Continuous extrusion of rubber components.
Rubber insulation for cables: Provides enhanced thermal and electrical insulation.

3. Food Industry
Extruded snack production: Used in making puffed snacks like corn curls, rings, etc.
Noodles and pasta: Extrusion of rice noodles, spaghetti, and other starch-based products.

4. Metal Industry
Extrusion of aluminum, copper, and other metals: For manufacturing profiles, heat sinks, structural parts, etc.

5. Construction & Building Materials
Panels, flooring, roofing tiles, window frames: Production of plastic or composite building materials.

6. Chemical & Material Development
Functional material extrusion: For conductive plastics, flame-retardant materials, fiber-reinforced composites.
Laboratory-scale extruders: Used for research and development of new polymers.

7. Medical & Biotech Industry
Medical tubing: Production of IV tubes, catheters, and other medical-grade polymer tubes.
Controlled-release drug materials: Extrusion of polymers used in drug delivery systems.

FAQ:

Q: What is the brand name of the Extrusion Molding Machine?

A: The brand name is MEPER.

Q: What is the model number of the Extrusion Molding Machine?

A: The model number is 70FD.

Q: Where is the Extrusion Molding Machine manufactured?

A: The machine is manufactured in China.

Q: What certifications does the Extrusion Molding Machine have?

A: The machine is certified with CE/ISO9001:2008.

Q: What is the minimum order quantity for the Extrusion Molding Machine?

A: The minimum order quantity is 1 set.
