Product Description:

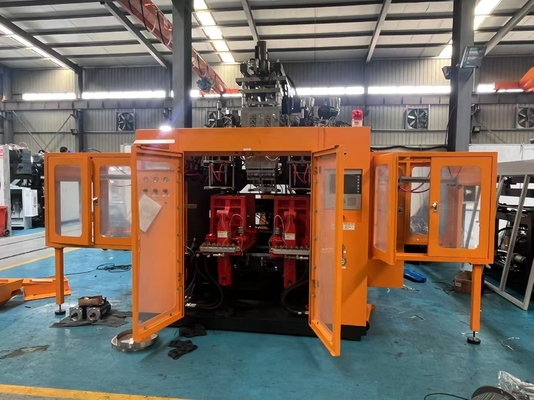

MP Plastic Blow Molding Machine
is designed for processing a variety of plastic hollow items with high molecule content. This machine is capable of manufacturing hollow products ranging in size from 5 milliliters to 100 liters.
The applications of this machine are diverse and include the production of bottles, pots, jars, barrels, toys, tool boxes, bed boards, desk boards, chairs, and automotive parts, among others.
MP plastic blow molding machine has the flexibility to work with a range of materials such as PE, PP, PVC, PA, PC, PS, and EVA. It ensures a precise and efficient manufacturing process for high-quality output.
Features:
Features
a) Extruding device adopts variable frequency motor which can satisfy the requirements of rotation change of screw during blowing process. Screw with big slenderness ratio can be used to process many kinds of materials and has strong plasticizing ability, high production and low energy consumption. The barrel adopts resistance heater which is controlled by computer and heats quickly, stably and equably.
b) By installing different head in combined extrusion system between two extrusion machines, they can blow products with view strip line or double layers.
c) Mould clamping device adopts toggle type and linear guider. Double station, the speed of mould platen moving more quickly and stably.
d) Improved design of hydraulic oil loop. Power saving, rapid and stable.
e) Installation and maintenance of hydraulic elements are convenient. Equipped with removable and mobilizable oil tank.
f) The whole machine is controlled by computer. The hydraulic system adopts double proportional control. This machine has fault automatic alarm, reliable operation, high automation and data memory of 40 sets of moulds.
g) Three operation modes - “Manual”, “Semi Auto”, “Full Auto”, are allowed to select.
h) Safety door adopts electric and mechanical safety devices (no mould closing happens when safety door opens) which make operation safe and reliable.
i) This machine has two blowing functions of straight cutting and oblique cutting.
Technical Parameters:
Basic Specifications
Applicable materials: PE, PP, PVC, PA...
Max product volume: 5L
Number of heads: 1, 2, 3, 4
Machine dimension (LxWxH): 3.6×2.3×2.36 meters
Machine weight: 4.9 tons
Mould Clamping System
Mould clamping force: 90KN
Platen opening strokes: 180-480mm
Plate stroke: 300mm
Max mould sizes(WxH): 400×420mm
Extrusion System
Screw diameter: 80mm
Screw slenderness ratio: 24 L/D
Plasticizing ability (HDPE): 90KG/H
Screw heating stage/zone: 4 zones
Screw heating power: 15.85KW
Screw fan power: 0.28KW
Extrusion motor power: 30KW
Head
Head heating stage/zone: 10 zones
Head heating power: 16.5KW
Energy Consumption
Total machine power: 80KW
Oil motor power: 11KW
Air pressure: 0.6-0.8MPA
Compression air volume: 1.2M3/H
Cooling water volume: 0.4M3/H
Applications:
Application Fields of Extrusion Molding Machines
1. Plastics Industry
-
Pipes, rods, and profiles:
Production of PVC pipes, PE pipes, ABS rods, window and door profiles, etc.
-
Films and sheets:
Used to make stretch film, packaging film, PET sheets, etc.
-
Cable sheathing:
Extrusion of plastic sheaths for electrical wires and cables.
-
Woven bag fibers:
For polypropylene fiber extrusion used in woven bags.
2. Rubber Industry
-
Tire treads, seals, and hoses:
Continuous extrusion of rubber components.
-
Rubber insulation for cables:
Provides enhanced thermal and electrical insulation.
3. Food Industry
-
Extruded snack production:
Used in making puffed snacks like corn curls, rings, etc.
-
Noodles and pasta:
Extrusion of rice noodles, spaghetti, and other starch-based products.
4. Metal Industry
-
Extrusion of aluminum, copper, and other metals:
For manufacturing profiles, heat sinks, structural parts, etc.
5. Construction & Building Materials
-
Panels, flooring, roofing tiles, window frames:
Production of plastic or composite building materials.
6. Chemical & Material Development
-
Functional material extrusion:
For conductive plastics, flame-retardant materials, fiber-reinforced composites.
-
Laboratory-scale extruders:
Used for research and development of new polymers.
7. Medical & Biotech Industry
-
Medical tubing:
Production of IV tubes, catheters, and other medical-grade polymer tubes.
-
Controlled-release drug materials:
Extrusion of polymers used in drug delivery systems.
FAQ:
Q: What is the brand name of this Extrusion Molding Machine?
A: The brand name is MEPER.
Q: What is the model number of this Extrusion Molding Machine?
A: The model number is 70FD.
Q: Where is this Extrusion Molding Machine manufactured?
A: It is manufactured in China.
Q: What certifications does this Extrusion Molding Machine have?
A: It is certified with CE/ISO9001:2008.
Q: What are the accepted payment terms for purchasing this Extrusion Molding Machine?
A: The accepted payment terms are L/C and T/T.
