Product Description:

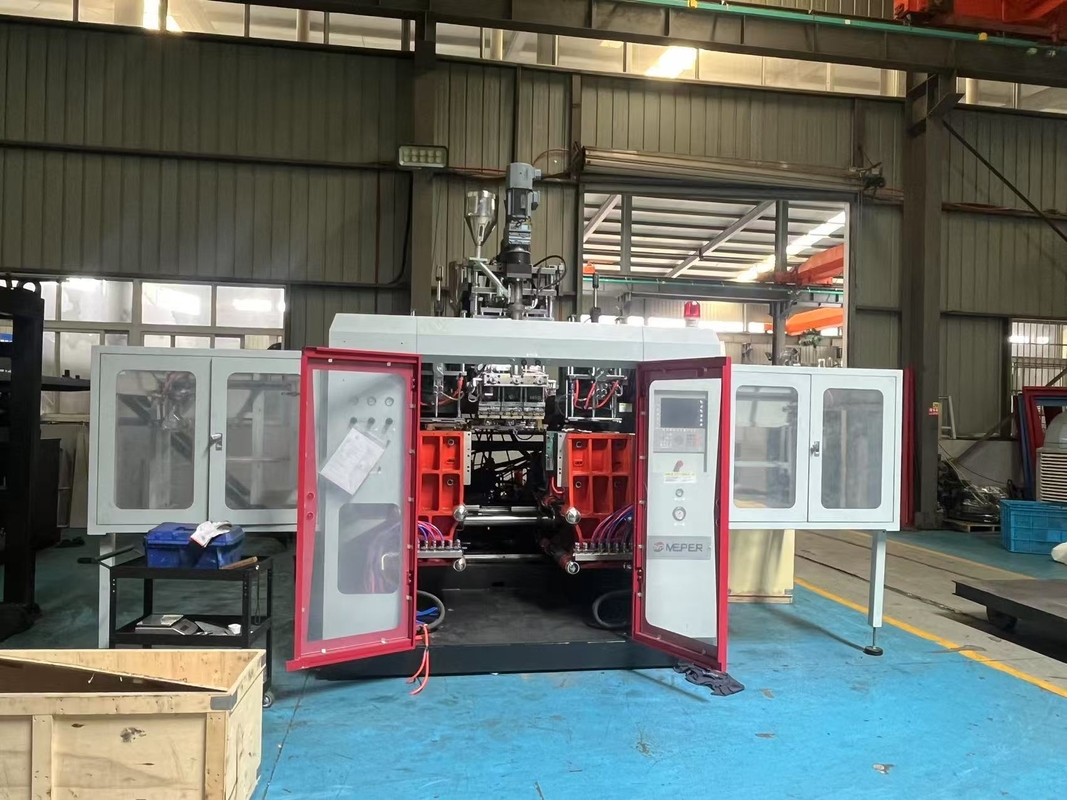

The MP plastic blow molding machine is designed for processing various plastic hollow products with high molecular weight. It is capable of producing hollow items ranging from 5 milliliters to 100 liters in size. This machine is commonly used for manufacturing bottles, pots, jars, barrels, toys, tool boxes, bed boards, desk boards, chairs, auto parts, and more.
The MP machine can work with a variety of materials including PE, PP, PVC, PA, PC, PS, and EVA. It is equipped to deliver flawless production processes, ensuring high-quality output for different types of plastic materials.
Features:
Features
a) Extruding device adopts variable frequency motor which can satisfy the requirements of rotation change of screw during blowing process. Screw with big slenderness ratio can be used to process many kinds of materials and has strong plasticizing ability, high production and low energy consumption. The barrel adopts resistance heater which is controlled by computer and heats quickly, stably and equably.
b) By installing different head in combined extrusion system between two extrusion machines, they can blow products with view strip line or double layers.
c) Mould clamping device adopts vertical compression, three pilot post, big beam arm and linear guider, cylinder spindle and double working position. Mould moves fast and stably.
d) Improved design of hydraulic oil loop. Power saving, rapid and stable.
e) Installation and maintenance of hydraulic elements are convenient. Equipped with removable and mobilizable oil tank.
f) The whole machine is controlled by computer. The hydraulic system adopts double proportional control. This machine has fault automatic alarm, reliable operation, high automation and data memory of 40 sets of moulds.
g) Three operation modes-“Manual”, “Semi Auto”, “Full Auto”, are allowed to select.
h) Safety door adopts electric and mechanical safety devices (no mould closing happens when safety door opens) which make operation safe and reliable.
i) This machine has two blowing functions of straight cutting and oblique cutting.
Technical Parameters:
Basic Parameter
Basic specifications
- Applicable materials: PE, PP, PVC, PA…
- Max product volume: 10 L
- Number of heads: 1, 2, 3, 4
- Machine dimension (LxWxH): 4x2.3x2.5 M
- Machine weight: 8.2 TON
Mould clamping system
- Mould clamping force: 150 KN
- Platen opening strokes: 220-620 MM
- Plate stroke: 540 MM
- Max mould sizes (WxH): 520x460 MM
Extrusion system
- Screw diameter: 80 MM
- Screw slenderness ratio (L/D): 24
- Plasticizing ability (HDPE): 90 KG/H
- Screw heating stage/zone: 4 Zone
- Screw heating power: 15.85 KW
- Screw fan power: 0.28 KW
- Extrusion motor power: 30 KW
Head
- Head heating stage/zone: 3 Zone
- Head heating power: 10 KW
Energy consumption
- Total machine power: 80 KW
- Oil motor power: 18.7 KW
- Air pressure: 0.6-0.8 MPA
- Compression air volume: 1.5 M3/min
- Cooling water volume: 40 L/min
Applications:
Plastics Industry
Pipes, rods, and profiles: Production of PVC pipes, PE pipes, ABS rods, window and door profiles, etc.
Films and sheets: Used to make stretch film, packaging film, PET sheets, etc.
Cable sheathing: Extrusion of plastic sheaths for electrical wires and cables.
Woven bag fibers: For polypropylene fiber extrusion used in woven bags.
Rubber Industry
Tire treads, seals, and hoses: Continuous extrusion of rubber components.
Rubber insulation for cables: Provides enhanced thermal and electrical insulation.
Food Industry
Extruded snack production: Used in making puffed snacks like corn curls, rings, etc.
Noodles and pasta: Extrusion of rice noodles, spaghetti, and other starch-based products.
Metal Industry
Extrusion of aluminum, copper, and other metals: For manufacturing profiles, heat sinks, structural parts, etc.
Construction & Building Materials
Panels, flooring, roofing tiles, window frames: Production of plastic or composite building materials.
Chemical & Material Development
Functional material extrusion: For conductive plastics, flame-retardant materials, fiber-reinforced composites.
Laboratory-scale extruders: Used for research and development of new polymers.
Medical & Biotech Industry
Medical tubing: Production of IV tubes, catheters, and other medical-grade polymer tubes.
Controlled-release drug materials: Extrusion of polymers used in drug delivery systems.
Customization:
Product Customization Services for the Plastic Extrusion Molding Machine:
Brand Name: MEPER
Model Number: 80D
Place of Origin: China
Certification: CE/ISO9001:2008
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: standard packaging
Delivery Time: 25-35 work days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Max product volume: 10L
Applicable materials: PE, PP
Mould clamping force: 150KN
Plate stroke: 540mm
Machine weight: 8.2ton
