Product Description:

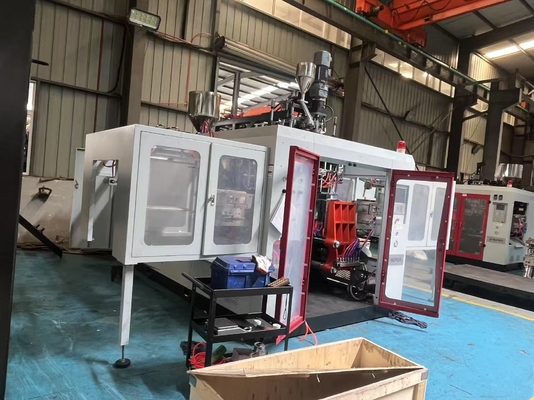

The MP plastic blow molding machine is designed for processing various plastic hollow products made with high-molecular materials. This machine is capable of producing hollow products ranging from 5 milliliters to 100 liters in size. The products that can be manufactured using this equipment include bottles, pots, jars, barrels, toys, tool boxes, bed boards, desk boards, chairs, and auto parts, among others.
One of the key advantages of the MP plastic blow molding machine is its versatility in working with a variety of materials. It can effectively blow mold materials such as PE, PP, PVC, PA, PC, PS, and EVA with precision and consistency, ensuring that the end products meet the required quality standards.
Features:
a) The extruding device utilizes a variable frequency motor to meet the demands of screw rotation adjustments during the blowing process. It can utilize a screw with a high slenderness ratio to process various materials effectively, offering strong plasticizing capabilities, high production output, and low energy consumption. The barrel is equipped with a resistance heater controlled by a computer, ensuring quick, stable, and uniform heating.
b) By incorporating different heads in a combined extrusion system between two extrusion machines, products with view strip lines or double layers can be blown efficiently.
c) The mould clamping device features vertical compression, three pilot posts, a large beam arm, linear guiders, cylinder spindles, and double working positions for fast and stable movements of the mould.
d) An improved design of the hydraulic oil loop results in power saving, rapid operation, and stability.
e) Convenient installation and maintenance of hydraulic elements are facilitated, with an easily removable and mobilizable oil tank provided.
f) The entire machine is computer-controlled, with a hydraulic system employing double proportional control. It includes fault automatic alarm systems, ensuring reliable operation, high automation levels, and the ability to store data for 40 sets of moulds.
g) Three operation modes - "Manual", "Semi Auto", and "Full Auto" - are available for selection.
h) The safety door incorporates both electric and mechanical safety devices to prevent mould closing when the door is open, enhancing operational safety and reliability.
i) This machine offers two blowing functions: straight cutting and oblique cutting.
Technical Parameters:
System Item
Unit
Basic Parameter
Basic specifications
Applicable materials PE, PP, PVC, PA…
Max product volume 10 L
Number of heads 1,2,3,4 SET
Machine dimension (LxWxH) 4x2.3x2.5 M
Machine weight 8.2 TON
Mould clamping system
Mould clamping force 150 KN
Platen opening strokes 220-620 MM
Plate stroke 540 MM
Max mould sizes(WxH) 520x460 MM
Extrusion system
Screw diameter 80 MM
Screw slenderness ratio 24 L/D
Plasticizing ability (HDPE) 90 KG/H
Screw heating stage/zone 4 Zone
Screw heating power 15.85 KW
Screw fan power 0.28 KW
Extrusion motor power 30 KW
Head
Head heating stage/zone 3 Zone
Head heating power 10 KW
Energy consumption
Total machine power 80 KW
Oil motor power 18.7 KW
Air pressure 0.6-0.8 MPA
Compression air volume 1.5 M3/min
Cooling water volume 40 L/min
Applications:
Application Fields of Extrusion Molding Machines
1. Plastics Industry
Pipes, rods, and profiles: Production of PVC pipes, PE pipes, ABS rods, window and door profiles, etc.
Films and sheets: Used to make stretch film, packaging film, PET sheets, etc.
Cable sheathing: Extrusion of plastic sheaths for electrical wires and cables.
Woven bag fibers: For polypropylene fiber extrusion used in woven bags.
2. Rubber Industry
Tire treads, seals, and hoses: Continuous extrusion of rubber components.
Rubber insulation for cables: Provides enhanced thermal and electrical insulation.
3. Food Industry
Extruded snack production: Used in making puffed snacks like corn curls, rings, etc.
Noodles and pasta: Extrusion of rice noodles, spaghetti, and other starch-based products.
4. Metal Industry
Extrusion of aluminum, copper, and other metals: For manufacturing profiles, heat sinks, structural parts, etc.
5. Construction & Building Materials
Panels, flooring, roofing tiles, window frames: Production of plastic or composite building materials.
6. Chemical & Material Development
Functional material extrusion: For conductive plastics, flame-retardant materials, fiber-reinforced composites.
Laboratory-scale extruders: Used for research and development of new polymers.
7. Medical & Biotech Industry
Medical tubing: Production of IV tubes, catheters, and other medical-grade polymer tubes.
Controlled-release drug materials: Extrusion of polymers used in drug delivery systems.
