MZ1200MD PP Plastic Preform Injection Molding Machine For Chair With Pressure Sensor

MZ1200MD PP Plastic Preform Injection Molding Machine For Chair With Pressure Sensor
MZ1200MD PP Plastic Preform Injection Molding Machine For Chair With Pressure Sensor MZ1200MD PP Plastic Preform Injection Molding Machine For Chair With Pressure Sensor MZ1200MD PP Plastic Preform Injection Molding Machine For Chair With Pressure Sensor MZ1200MD PP Plastic Preform Injection Molding Machine For Chair With Pressure Sensor

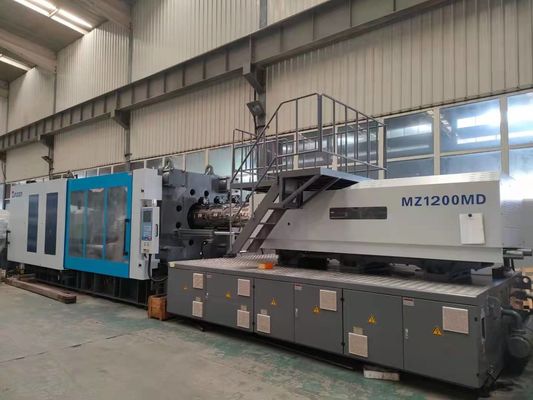

Large Image :  MZ1200MD PP Plastic Preform Injection Molding Machine For Chair With Pressure Sensor

Product Details:
Place of Origin: CHINA
Brand Name: MINZEN
Certification: ISO,CE
Model Number: MZ1200MD
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Price negotiation
Packaging Details: Standard export package
Delivery Time: 60 work days
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Detailed Product Description
Type:: Preform Injection Preform Injection: Thermoplastic
Plasticizing Way: Screw Type Material: PP.PE
Customized: Yes Products: Plastic Chair
High Light:

PP Plastic Preform Injection Molding Machine

,

injection molding machine with pressure sensor

,

Plastic Chair injection molding machine

Servo type Plastic Injection Molding Machine MZ1200MD For plastic chair​



NEWLY DESIGNED MACHINE STRUCTURE



MZ-MD series adopt five-support crankshaft structure to provide high stability and high precision. Two pillar guider design makes the injection fast, stable and precise. Redesigned high rigidity base and integrated pipeline design enhance machine stability. Also, MZ-MD series utilize embedded electric box design to save precious space for customers. All MZ-MD series have big tie bar space and clamping stroke to fit variety of product. Standardized T-slot is for installing and removing the molds much more conveniently. Double core-pulling is also standardized for different production requirements.



HIGH ENERGY SAVING



MZ-MD high energy-saving injection molding machines consume no extra energy due to output volume changes according to load alteration. In the phase of holding pressure, servo motor lowers rotate speed and consumes a little of energies. In the phase of cooling, motor doesn’t work and consumes no energy. According to different products, MZ-MD high energy-saving injection machines will save up to 80% energy and bring you prominent economic benefit.



BETTER MOLDING STABILITY



MZ-MD high energy-saving injection molding machines are equipped with rotary encoder and pressure sensor, and both of them have feedback of flow and pressure. Through changing the speed and torque, high quality synchronous servo motor makes corresponding flow and pressure adjustments to reach the effects of close-loop precision control.



QUICK RESPONSE



It only costs 0.05s for MZ-MD high energy-saving injection molding machines to achieve the maximum output. In comparison with conventional hydraulic injection molding machines, their response speed have been obviously quickened and cycle time effectively shortened to improve production efficiency.





MZ1200MD

SPECIFICATION MZ1200MD
ITEM A B C D
INJECTION UNIT
SCREW DIAMETER mm 110 120 130 140
SCREW L/D RATIO L/D 24.2 22.2 20.5 19
SHOT VOLUME(THEORETICAL) 5037 5994 7035 8159
INJECTION WEIGHT(PS) g 4634 5515 6472 7506
INJECTION PRESSURE Mpa 181 152 129 111
INJECTION RATE g/sec 750 892 1047 1214
SCREW SPEED rpm 110
CLAMPING UNIT
CLAMP TONNAGE KN 12000
TOGGLE STROKE mm 1250
MIN.MOLD HEIGHT mm 450
MAX.MOLD HEIGHT mm 1200
SPACE BETWEEN TIE BARS mm 1220X1220
EJECTOR TONNAGE KN 240
EJECTOR STROKE mm 350
EJECTOR NUMBER PC 21
OTHERS
MAX.PUMP PRESSURE Mpa 16
HEATER POWER KW 71.35
PUMP MOTOR POWER KW 33+33+20
OIL TANK CUBAGE L 2000



 MACHINE DIMENSION(LxWxH)

M 12.3X2.6X3.7
MACHINE WEIGHT T 60
