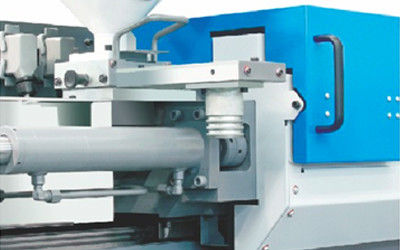

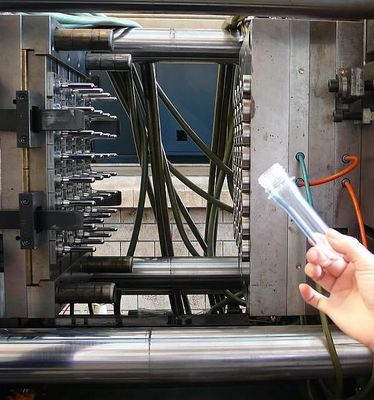

Minieral Water Preform Bottle PET Injection Moulding Machine In 20 Sec Cycle Time

Minieral Water Preform Bottle PET Injection Moulding Machine In 20 Sec Cycle Time
Minieral Water Preform Bottle PET Injection Moulding Machine In 20 Sec Cycle Time Minieral Water Preform Bottle PET Injection Moulding Machine In 20 Sec Cycle Time Minieral Water Preform Bottle PET Injection Moulding Machine In 20 Sec Cycle Time Minieral Water Preform Bottle PET Injection Moulding Machine In 20 Sec Cycle Time

Large Image :  Minieral Water Preform Bottle PET Injection Moulding Machine In 20 Sec Cycle Time

Product Details:
Place of Origin: China
Brand Name: MINZEN
Certification: CE/ISO9001:2008
Model Number: MZ-K2-320
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Price negotiation.
Packaging Details: Wooden pellet Wooden case(optional)
Delivery Time: 30 work days.
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month.
Detailed Product Description
Product: Minieral Water Preform Bottle Speed: High Speed
Materia: PET Cycle Time: 20 Sec.
Type: Servo System Design: Big Diameter Screw
High Light:

pet preform injection moulding machine

,

automatic injection moulding machine

PET minieral water preform bottle injection molding machine in 20 sec cycle time



According to the material property of PET and the molding requirements of it,our experienced engineering team design the machine special for the application.The design satisfies all our customers in PET molding production.

  1. Big diameter screw design and Bigger L/D ratio
  2. High plasticization capacity
  3. Entended machine framework,enlarged space between tie-bars,mold opening stroke,mould thickness and ejection stroke
  4. Specialized screw set for PET+FB or slice PET are on request as option
  5. Four or above stages precise temperature PID control for barrel
  6. Spring nozzle for the machine below 650ton,hydraulic nozzle for 650ton,meeting customer’s special requirements by effectively avoid overflow
  7. Dehumidifying dryer selected for PET resin’s special demands of removing moisture
  8. Suitable for both variable pump and servo system

SPECIFICATIONS



SPECIFICATIONS
DESCRIPTION UNIT K2-320
INJECTION   A B C
SHOT VOLUME CM3 1062 1231 1414
SHOT WEIGHT G 966 1120 1286
(PS) OZ 33.7 39.2 44.9
SCREW DIAMETER MM 65 70 75
INJECTION PRESSURE MPA 175 152 133
SCREW L:D RATIO   21:1 21:1 19.6:1
SCREW STROKE MM 320
SCREW SPEED (STEPLESS) R/MIN 0~150
CLAMPING UNIT
CLAMPING FORCE KN 3200
OPENING STROKE MM 615
PLATEN SIZE MM*MM 945*945
SPACE BETWEEN TIE BARS MM*MM 660*660
MOLD THICKNESS (MIN-MAX) MM 250~670
MAX.DAYLIGHT MM 1285
HYDRAULIC EJECTION STROKE MM 160
HYDRAULIC EJECTION FORCE KN 77
POWER UNIT
HYDRAULIC SYSTEM PRESSURE MPA 17.5/36.7
PUMP MOTOR(V/S) KW 30/36.7
HEATING CAPACITY KW 21.5
NUMBER OF TEMP CONTROL ZONES   5+(NOZZLE )
GENERAL
DRY-CYCLE TIME SEC 5
OIL TANK CAPACITY L 500
MACHINE DIMENSIONS MXMXM 6.8*1.6*2.2
MACHINE WEIGHT KG 13000



Minieral Water Preform Bottle PET Injection Moulding Machine In 20 Sec Cycle Time 0
