PET Bottle Plastic Injection Molding Machine With Twin Carriage Cylinder

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  PET Bottle Plastic Injection Molding Machine With Twin Carriage Cylinder

Product Details:
Place of Origin: China
Brand Name: MINZEN
Certification: CE/ISO9001:2008
Model Number: MZ-K2-220
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Price negotiation.
Packaging Details: Wooden pellet Wooden case(optional)
Delivery Time: 30 work days.
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month.
Detailed Product Description
Product: PET Bottle Proform,PET Cup Speed: High Speed PET
Materia: PET Machine Type: Variable Pump
Cylinder: Twin Carriage Cylinder PLC: Techmation
High Light:

plastic injection molding machine

,

automatic injection moulding machine

PET Bottle preform injection molding machine with high speed injection molding equipment



Detailed Product Description



INJECTION PART

High speed and high pressure adopt special injection structure which improve injection speed

The barrel and nozzle of injection setting can be disassembled randomly ,it is easy to maintain

Twin carriage cylinder ensures more even and stable injection .

High quality linear bearing couple ensure smooth and accurate injection

Specific screw and barrel designs are available for processing different material requirements



CONTROL PART

Adopt imported computer which special for injection machine ,its processed and controlled by PLC,This is to expedite response from control system as well as to improve operational accuracy of the machine



Industrial quality components and circuit hardware design provide a stable and reliable control system

Ultra bright LED’S are provide for input and output point inspection providing convenient indication of the machine’s operation and machine servicing .



HYDRAULIC PART

Rexroth variable pump system ,energy saving is more than 30%(V series configuration )

Hydraulic system adopts famous plastic injection molding hydraulic system designed by Germany company

The hydraulic valve are set adjacent to all the oil cylinders for rapid oil transfer

Hydraulic device can choose twice clamping system ,which can meet second-molding product request

Injection part adopts dual nitrogen and cartridge valve’s oil system design ,which improve injection’s high speed performance .

The pre-injection ratio valves control device ,with easy operation and accurate control .

The hydraulic system incorporates control technology from reliable international manufacturers,which accurately control every machine movenment Injection ,mould close and open.



SPECIFICATIONS



SPECIFICATIONS
DESCRIPTION UNIT K2-220
INJECTION   A B C
SHOT VOLUME CM3 381 70 569
SHOT WEIGHT G 347 429 520
(PS) OZ 12.1 15.0 18.1
SCREW DIAMETER MM 45 50 55
INJECTION PRESSURE MPA 217 176 145
SCREW L:D RATIO   22:1 20:1 18:1
SCREW STROKE MM 240
SCREW SPEED (STEPLESS) R/MIN 0~200
CLAMPING UNIT
CLAMPING FORCE KN 2200
OPENING STROKE MM 480
PLATEN SIZE MM*MM 745*745
SPACE BETWEEN TIE BARS MM*MM 510*510
MOLD THICKNESS (MIN-MAX) MM 200~560
MAX.DAYLIGHT MM 1040
HYDRAULIC EJECTION STROKE MM 150
HYDRAULIC EJECTION FORCE KN 67
POWER UNIT
HYDRAULIC SYSTEM PRESSURE MPA 17.5
PUMP MOTOR(V/S) KW 18.5/28.3
HEATING CAPACITY KW 13.1
NUMBER OF TEMP CONTROL ZONES   4+(NOZZLE )
GENERAL
DRY-CYCLE TIME SEC 4.5
OIL TANK CAPACITY L 310
MACHINE DIMENSIONS MXMXM 5.4*1.3*2.1
MACHINE WEIGHT KG 6800

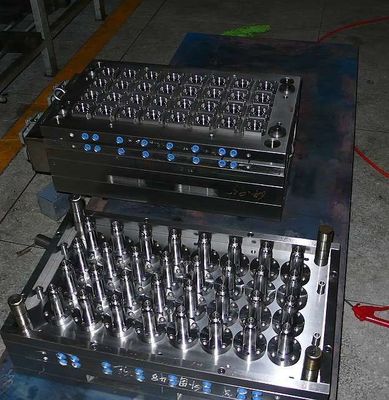

PET Bottle Plastic Injection Molding Machine With Twin Carriage Cylinder 0



HYDRRULICS

Variable displacement pump System
Servo System
Oil suck filiter
Oil temperature control and alarm
By-pass oil filter



ELECTRONICS

8.7' lcd solor screen
200sets of mold memory
Barrel temperature monitoring and thermocouple break alarm
System hardware i/o testing function
Interface for printer and floppy drlver
Electric motor safety protection
Emergency stop safeguard device



RCCESSORIES
Adlustable machine leveling pads
Easily damaged spare parts
Professional tools
Manual



OPTIONRL DEVICE

Wide range of injection unit for specific appliaction
Spacific material screw and barrel
Accumulator fast injection
Core pull fittings
Air blast fittings
Glass water regulations
Extended nozzle
