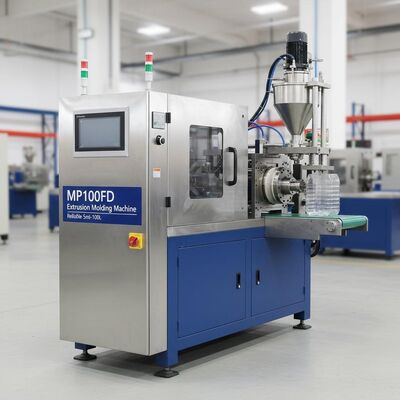

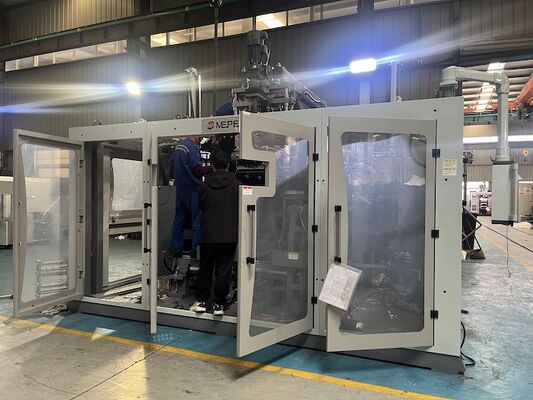

MP100FD Extrusion Blow Molding Machine with 3 Heads and Auto Deflashing for 5ml-100L Plastic Products

MP100FD Extrusion Blow Molding Machine with 3 Heads and Auto Deflashing for 5ml-100L Plastic Products
MP100FD Extrusion Blow Molding Machine with 3 Heads and Auto Deflashing for 5ml-100L Plastic Products MP100FD Extrusion Blow Molding Machine with 3 Heads and Auto Deflashing for 5ml-100L Plastic Products

Large Image :  MP100FD Extrusion Blow Molding Machine with 3 Heads and Auto Deflashing for 5ml-100L Plastic Products

Product Details:
Brand Name: MEPER
Certification: CE/ISO9001:2008
Model Number: MP 100 FD
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiate
Packaging Details: Standard Export Package, Wooden Pallet(standard) Wooden Case(optional)
Delivery Time: 25-35 Work Days
Payment Terms: L/C,T/T
Supply Ability: 100 Sets Per Month
Contact Now
Detailed Product Description
Cooling Water Consumption: 1000 L/min Air Consumption: 1.2 M³/min
Auto Deflashing: Available Product Range: Plastic Open Top Drums & Barrels
Transport Package: Film Packing Number Of Heads: 3 Sets
Voltage Suitable: Customer Specified Cooling Water Pressure: 0.6–1 MPa
Highlight:

5ml-100L Extrusion Blow Molding Machine

,

3 Heads Blow Molding Machine

,

Auto Deflashing Plastic Extrusion Machine

MP100FD Extrusion Blow Molding Machine
Reliable production capability for plastic hollow products ranging from 5ml to 100L volumes.
Product Overview
The MP plastic blow molding machine is engineered for manufacturing diverse plastic hollow products using high molecular materials. This versatile equipment efficiently processes items from 5 milliliters to 100 liters, making it suitable for various industrial applications.
Key Features
  • Variable frequency motor for adaptable screw rotation speeds during blowing process
  • High slenderness ratio screw design for efficient material handling
  • Advanced plasticizing capabilities with high production rates and reduced energy consumption
  • Computer-controlled resistance heating for rapid, stable, and uniform barrel heating
  • Combined extrusion system supporting visible strip lines or double-layered structures
  • Toggle mechanism with linear guides and double-station mould clamping
  • Optimized hydraulic system with power-saving oil loop design
  • Advanced computer control with double proportional hydraulic control
  • Three operation modes: Manual, Semi-Auto, and Full Auto
  • Electric and mechanical safety door for operational security
  • Dual blowing functions: straight cutting and oblique cutting
Technical Specifications
Parameter Category Specifications
Compatible Materials PE, PP, PVC, PA, PC, PS, EVA
Maximum Product Volume Up to 10 liters
Number of Heads 3 heads
Machine Dimensions 3.5m (L) × 5.6m (W) × 2.65m (H)
Total Weight Approximately 15 tons
Mould Clamping Force Up to 200 KN
Platen Opening Stroke 240mm - 640mm
Maximum Mould Size 700mm (W) × 420mm (H)
Total Machine Power 210 kW
Cooling Water Consumption 1000 liters per minute
Applications
  • Bottles and containers for various storage needs
  • Chemical barrels for industrial use
  • Toolboxes and industrial components
  • Automotive parts and components
  • Toys and household items
  • Furniture components (chairs, boards, etc.)
Frequently Asked Questions
What is the brand and model number of the Extrusion Blow Molding Machine?
The machine is branded as MEPER and the model number is MP 100 FD.
Where is the MEPER MP 100 FD Extrusion Blow Molding Machine manufactured?
It is manufactured in China.
What certifications does the MEPER MP 100 FD machine have?
The machine holds CE and ISO9001:2008 certifications.
What is the minimum order quantity and price for the MEPER MP 100 FD?
The minimum order quantity is 1 set, and the price is negotiable.
What are the packaging details and delivery time for the machine?
The machine is packed in a standard export package with a wooden pallet as standard or an optional wooden case. The delivery time is 25-35 work days.
What are the payment terms and supply capacity for the MEPER MP 100 FD?
Payment terms include L/C and T/T. The supply ability is 100 sets per month.
