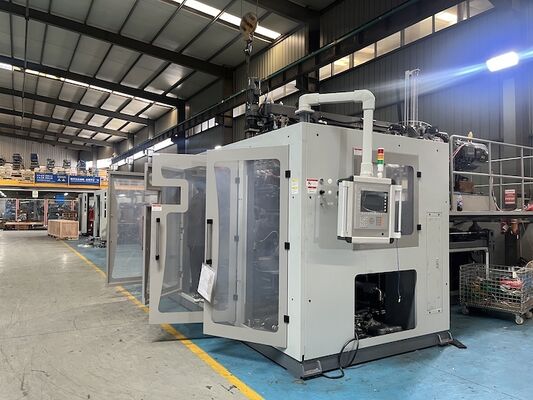

Advanced PLC Control Extrusion Blow Molding Machine with 3 Heads and Auto Deflashing for Plastic Products

Advanced PLC Control Extrusion Blow Molding Machine with 3 Heads and Auto Deflashing for Plastic Products
Advanced PLC Control Extrusion Blow Molding Machine with 3 Heads and Auto Deflashing for Plastic Products

Large Image :  Advanced PLC Control Extrusion Blow Molding Machine with 3 Heads and Auto Deflashing for Plastic Products

Product Details:
Brand Name: MEPER
Certification: CE/ISO9001:2008
Model Number: MP 100 FD
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiate
Packaging Details: Standard Export Package, Wooden Pallet(standard) Wooden Case(optional)
Delivery Time: 25-35 Work Days
Payment Terms: L/C,T/T
Supply Ability: 100 Sets Per Month
Contact Now
Detailed Product Description
Language Settings: Chinese And English Operation Panel Number Of Heads: 3 Sets
Cooling Water Pressure: 0.6–1 MPa Cooling Water Consumption: 1000 L/min
Auto Deflashing: Available Product Range: Plastic Open Top Drums & Barrels
Voltage Suitable: Customer Specified Air Consumption: 1.2 M³/min
Highlight:

PLC Control Extrusion Blow Molding Machine

,

3 Heads Blow Molding Machine

,

Auto Deflashing Plastic Blow Molding Machine

Advanced MP100FD Extrusion Molding Machine with PLC Control
Product Overview
The MP plastic blow molding machine is engineered for manufacturing diverse plastic hollow products from high molecular materials. With capacity ranging from 5 milliliters to 100 liters, this versatile machine produces bottles, pots, jars, barrels, toys, tool boxes, furniture components, and automotive parts.
Compatible with multiple materials including PE, PP, PVC, PA, PC, PS, and EVA, the MP series ensures excellent manufacturing processes and high-quality output for various industrial applications.
Key Features
  • Variable frequency motor for precise screw speed control during blowing process
  • High slenderness ratio screw for versatile material processing
  • Superior plasticizing capability with high production efficiency and low energy consumption
  • Computer-controlled resistance heater for rapid, stable, and uniform heating
  • Combined extrusion system for producing visible strip lines or double-layer structures
  • Toggle mechanism with linear guide for stable, high-speed mold platen movement
  • Redesigned hydraulic oil loop for improved efficiency and power savings
  • Removable mobile oil tank for convenient installation and maintenance
  • Computer-controlled operation with dual proportional hydraulic control
  • Automatic fault alarm system and data storage for up to 40 mold sets
  • Three operation modes: Manual, Semi-Auto, and Full Auto
  • Electric and mechanical safety devices for reliable operation
  • Straight cutting and oblique cutting blowing functions
Technical Specifications
Parameter Category Specifications
Compatible Materials PE, PP
Maximum Product Volume 10 liters
Number of Heads 3
Machine Dimensions 3.5m (L) × 5.6m (W) × 2.65m (H)
Machine Weight 15 tons
Clamping Force 200 KN
Platen Stroke Range 240-640 mm
Maximum Mold Size 700 × 420 mm (W × H)
Screw Diameters 100 mm, 75 mm, 25 mm
Screw L/D Ratios 26, 24, 22
HDPE Plasticizing Capacity 3-218 kg/h
Total Power Consumption 210 kW
Operational Air Pressure 0.6-1 MPa
Compressed Air Consumption 1.2 m³/min
Cooling Water Usage 1000 L/min
Applications
  • Bottles and containers of various shapes and sizes
  • Chemical barrels for industrial storage
  • Toolboxes and industrial components
  • Automotive parts and components
  • Toys and household items
  • Furniture parts including chairs and boards
Frequently Asked Questions
What is the brand and model number of the Extrusion Blow Molding Machine?
The machine is branded MEPER and the model number is MP 100 FD.
Where is the Extrusion Blow Molding Machine manufactured?
It is manufactured in China.
What certifications does the MP 100 FD have?
The machine is certified with CE and ISO9001:2008.
What is the minimum order quantity and price for this machine?
The minimum order quantity is 1 set, and the price is negotiable.
What are the packaging and delivery details for the Extrusion Blow Molding Machine?
The machine is packaged in a standard export package, with a wooden pallet as standard and an optional wooden case. The delivery time is 25-35 work days.
What payment terms are accepted for purchasing the MP 100 FD?
Payment terms accepted include L/C (Letter of Credit) and T/T (Telegraphic Transfer).
What is the supply capacity of the MEPER MP 100 FD machine?
The supply ability is 100 sets per month.
