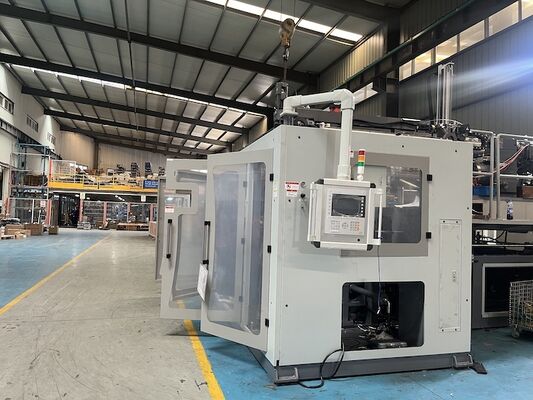

MP100FD Extrusion Molding Machine
The MP plastic blow molding machine is engineered for manufacturing diverse plastic hollow products using high molecular materials. This advanced equipment handles product sizes ranging from 5 milliliters to 100 liters, making it suitable for various industrial applications.
Product Overview
This versatile machine produces numerous hollow items including bottles, pots, jars, barrels, toys, toolboxes, furniture components, and automotive parts. Its broad application scope serves multiple industries with reliable performance.
The MP machine supports blow molding of various materials including PE, PP, PVC, PA, PC, PS, and EVA. It ensures flawless processing performance and delivers high-quality final products across all supported materials.
Key Features
- Variable frequency motor for precise screw rotation adjustments during blowing process
- High slenderness ratio screw design for processing various materials with strong plasticizing capabilities
- Computer-controlled resistance heater for rapid, stable, and uniform barrel heating
- Combined extrusion system with interchangeable heads for producing products with clear strip lines or double-layer structures
- Toggle type mould clamping mechanism with linear guider and double station for increased speed and stability
- Upgraded hydraulic oil circuit design for significant power savings and stable performance
- Removable and mobilizable oil tank for convenient installation and maintenance
- Computerized control system with double proportional hydraulic control and automatic fault alarms
- Three operation modes: Manual, Semi-Automatic, and Fully Automatic
- Electrically and mechanically integrated safety doors for enhanced operator protection
- Dual blowing functions: straight cutting and oblique cutting for versatile product shaping
Technical Specifications
Basic Specifications
| Parameter |
Unit |
Value |
| Applicable Materials |
- |
PE, PP |
| Maximum Product Volume |
Liters |
10 |
| Number of Heads |
Set |
3 |
| Machine Dimensions (L*W*H) |
meters |
3.5 * 5.6 * 2.65 |
| Machine Weight |
Ton |
15 |
Mould Clamping System
| Parameter |
Unit |
Value |
| Mould Clamping Force |
kN |
200 |
| Platen Opening Stroke |
mm |
240 - 640 |
| Plate Stroke |
mm |
750 |
| Maximum Mould Size (W*H) |
mm |
700 * 420 |
Extrusion System
| Parameter |
Unit |
100 mm |
75 mm (1) |
75 mm (2) |
25 mm (1) |
25 mm (2) |
| Screw Diameter |
mm |
100 |
75 |
75 |
25 |
25 |
| Screw Slenderness Ratio (L/D) |
- |
26 |
24 |
24 |
22 |
22 |
| Plasticizing Ability (HDPE) |
kg/h |
218 |
75 |
75 |
3 |
3 |
| Heating Stages / Zones |
Zones |
4 |
3 |
3 |
2 |
2 |
| Screw Heating Power |
kW |
17.4 |
12.6 |
12.6 |
1.4 |
1.4 |
| Screw Fan Power |
kW |
0.56 |
0.28 |
0.28 |
- |
- |
| Extrusion Motor Power |
kW |
55 |
22 |
22 |
1.5 |
1.5 |
Head System
| Parameter |
Unit |
Value |
| Heating Stages / Zones |
Zones |
14 |
| Heating Power |
kW |
30 |
Energy Consumption
| Parameter |
Unit |
Specification |
| Total Machine Power |
kW |
210 |
| Oil Motor Power |
kW |
31 |
| Air Pressure |
MPa |
0.6 - 1 |
| Compressed Air Volume |
m³/min |
1.2 |
| Cooling Water Volume |
L/min |
1000 |
Applications
This extrusion blow molding machine is ideally suited for manufacturing diverse hollow plastic items across multiple industries:
- Bottles and containers for packaging liquids and materials
- Chemical barrels requiring durable and reliable construction
- Sturdy toolboxes and various industrial parts
- Automotive components and parts
- Toys and household items
- Furniture parts including chairs and boards
Frequently Asked Questions
What is the brand and model of this Extrusion Blow Molding Machine?
The machine is branded MEPER, and the model number is MP 100 FD.
Where is the Extrusion Blow Molding Machine manufactured?
This machine is manufactured in China.
What certifications does the MEPER MP 100 FD have?
The machine is certified with CE and ISO9001:2008 standards.
What is the minimum order quantity for the MEPER MP 100 FD?
The minimum order quantity is 1 set.
What are the payment terms and delivery time for this machine?
Payment can be made via L/C or T/T, and the delivery time is typically 25-35 work days.
How is the Extrusion Blow Molding Machine packaged for shipment?
The machine is packed using a standard export package, with a wooden pallet as standard and a wooden case optionally available.
What is the monthly supply ability for the MEPER MP 100 FD machine?
The supply ability is 100 sets per month.
Is the price for the MEPER MP 100 FD fixed?
The price is negotiable depending on order quantity and specific requirements.
