Precision MP100FD Extrusion Blow Molding Machine with 3 Heads Auto Deflashing and 15 Tons Capacity for Hollow Plastics

Precision MP100FD Extrusion Blow Molding Machine with 3 Heads Auto Deflashing and 15 Tons Capacity for Hollow Plastics
Precision MP100FD Extrusion Blow Molding Machine with 3 Heads Auto Deflashing and 15 Tons Capacity for Hollow Plastics

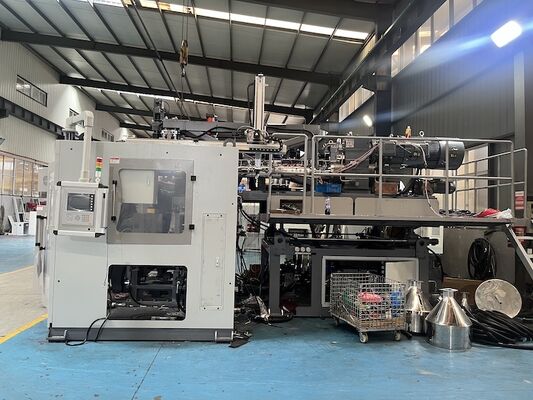

Large Image :  Precision MP100FD Extrusion Blow Molding Machine with 3 Heads Auto Deflashing and 15 Tons Capacity for Hollow Plastics

Product Details:
Brand Name: MEPER
Certification: CE/ISO9001:2008
Model Number: MP 100 FD
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiate
Packaging Details: Standard Export Package, Wooden Pallet(standard) Wooden Case(optional)
Delivery Time: 25-35 Work Days
Payment Terms: L/C,T/T
Supply Ability: 100 Sets Per Month
Contact Now
Detailed Product Description
Voltage Suitable: Customer Specified Number Of Heads: 3 Sets
Auto Deflashing: Available Air Consumption: 1.2 M³/min
Product Range: Plastic Open Top Drums & Barrels Machine Weight: 15 Tons
Cooling Water Consumption: 1000 L/min Language Settings: Chinese And English Operation Panel
Highlight:

3 Heads Extrusion Blow Molding Machine

,

Auto Deflashing Blow Molding Machine

,

15 Tons Plastic Extrusion Machine

Precision MP100FD Extrusion Molding Machine for Hollow Plastics
The MP plastic blow molding machine is engineered for manufacturing diverse hollow plastic products from high molecular materials. This versatile equipment produces items ranging from 5 milliliters to 100 liters, making it suitable for various industrial applications.
Key Applications
This machine supports production of bottles, pots, jars, barrels, toys, tool boxes, furniture components (bed boards, desk boards, chairs), and automotive parts. Its compatibility with multiple plastic materials including PE, PP, PVC, PA, PC, PS, and EVA ensures excellent manufacturing precision and efficiency across diverse product requirements.
Advanced Features
  • Variable Frequency Motor: Meets screw rotational speed requirements with efficient energy consumption
  • High Slenderness Ratio Screw: Processes various materials with strong plasticizing capabilities and high production output
  • Computer-Controlled Heating: Resistance heater provides rapid, stable, and uniform barrel heating
  • Combined Extrusion System: Produces visual strip lines or double-layered structures using different heads
  • Toggle Mechanism with Linear Guide: Double station design enables fast, stable mould platen movement
  • Improved Hydraulic System: Energy-saving oil loop maintains rapid, stable performance
  • Removable Oil Tank: Simplifies installation and maintenance of hydraulic components
  • Computer Control with Dual Proportional Control: Automatic fault alarm system and data storage for 40 different moulds
  • Three Operation Modes: Manual, Semi-Auto, and Full Auto for flexible production
  • Safety Features: Electric and mechanical safety devices prevent mould closure when doors are open
  • Cutting Options: Straight cutting and oblique cutting capabilities for diverse product designs
  • Oblique Blowing Function: Enhanced versatility in product forming
Technical Specifications
System Basic Parameters
Item Unit Basic Parameter
Applicable materials PE, PP
Maximum product volume L 10
Number of heads SET 3
Machine dimensions (L*W*H) m 3.5 * 5.6 * 2.65
Machine weight TON 15
Mould Clamping System
Item Unit Basic Parameter
Mould clamping force KN 200
Platen opening strokes mm 240 - 640
Plate stroke mm 750
Maximum mould size (W * H) mm 700 * 420
Extrusion System
Parameter Unit Configuration 1 Configuration 2 Configuration 3 Configuration 4 Configuration 5
Screw diameter mm 100 75 75 25 25
Screw slenderness ratio (L/D) 26 24 24 22 22
Plasticizing ability (HDPE) kg/h 218 75 75 3 3
Screw heating stages/zones zones 4 3 3 2 2
Screw heating power kW 17.4 12.6 12.6 1.4 1.4
Screw fan power kW 0.56 0.28 0.28
Extrusion motor power kW 55 22 22 1.5 1.5
Head Specifications
Parameter Unit Value
Head heating stages/zones zones 14
Head heating power kW 30
Energy Consumption
Item Unit Specification
Total machine power kW 210
Oil motor power kW 31
Air pressure MPa 0.6 - 1
Compressed air volume m³/min 1.2
Cooling water volume L/min 1000
Frequently Asked Questions
What is the brand and model number of the Extrusion Blow Molding Machine?
The brand name is MEPER and the model number is MP 100 FD.
Where is the Extrusion Blow Molding Machine manufactured?
It is manufactured in China.
What certifications does the MP 100 FD machine have?
The machine is certified with CE and ISO9001:2008.
What is the minimum order quantity and supply ability for this machine?
The minimum order quantity is 1 set, and the supply ability is 100 sets per month.
What are the payment terms and delivery time for the Extrusion Blow Molding Machine?
Payment terms include L/C and T/T. The delivery time is between 25 to 35 work days.
How is the machine packaged for shipment?
The machine is packaged in a standard export package with a wooden pallet as standard. A wooden case packaging option is also available.
Is the price fixed or negotiable?
The price is negotiable.
