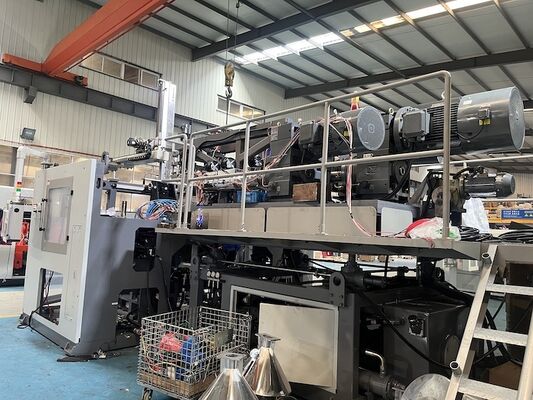

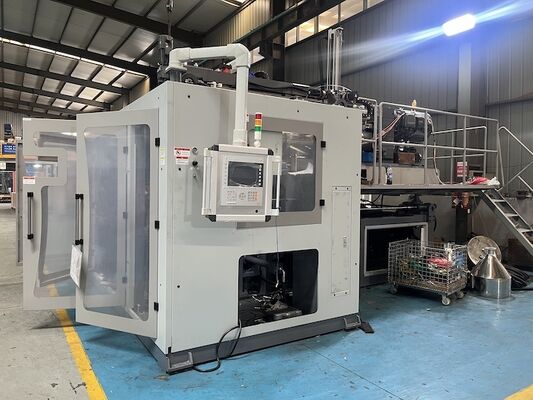

Product Overview
The MP plastic blow molding machine is engineered for manufacturing diverse plastic hollow products from high molecular materials. It efficiently produces items ranging from 5 milliliters to 100 liters in capacity.
This versatile machine creates various hollow objects including bottles, pots, jars, barrels, toys, tool boxes, furniture components, and automotive parts, making it ideal for multiple manufacturing applications.
Compatible with materials such as PE, PP, PVC, PA, PC, PS, and EVA, the machine ensures excellent processing quality and flawless results.
Key Features
- Variable frequency motor for adjustable screw rotation speed during blowing process
- High slenderness ratio screws with strong plasticizing capabilities
- Computer-controlled resistance heaters for rapid, stable, and uniform heating
- Combined extrusion system for creating products with visible strip lines or double-layered items
- Toggle-type mould clamping mechanism with linear guide for double-station operation
- Redesigned hydraulic oil loop for enhanced performance and energy savings
- Computerized control system with double proportional hydraulic control
- Automatic fault alarm and storage for up to 40 mould sets
- Three operation modes: Manual, Semi-Automatic, and Fully Automatic
- Electrically and mechanically integrated safety doors for secure operation
- Straight cutting and oblique cutting blowing functions for diverse product shapes
Technical Specifications
System Basic Parameters
| Item | Unit | Basic Parameter |
|---|
| Applicable Materials | - | PE, PP |
| Maximum Product Volume | Liters (L) | 10 |
| Number of Heads | Set | 3 |
| Machine Dimensions (L x W x H) | Meters (m) | 3.5 x 5.6 x 2.65 |
| Machine Weight | Tons (Ton) | 15 |
Mould Clamping System
| Item | Unit | Basic Parameter |
|---|
| Mould Clamping Force | kN | 200 |
| Platen Opening Stroke | mm | 240 - 640 |
| Plate Stroke | mm | 750 |
| Maximum Mould Size (W x H) | mm | 700 x 420 |
Extrusion System
| Parameter | Unit | Value 1 | Value 2 | Value 3 | Value 4 | Value 5 |
|---|
| Screw Diameter | mm | 100 | 75 | 75 | 25 | 25 |
| Screw Slenderness Ratio (L/D) | - | 26 | 24 | 24 | 22 | 22 |
| Plasticizing Ability (HDPE) | kg/h | 218 | 75 | 75 | 3 | 3 |
| Screw Heating Stage/Zone | Zone | 4 | 3 | 3 | 2 | 2 |
| Screw Heating Power | kW | 17.4 | 12.6 | 12.6 | 1.4 | 1.4 |
| Screw Fan Power | kW | 0.56 | 0.28 | 0.28 | - | - |
| Extrusion Motor Power | kW | 55 | 22 | 22 | 1.5 | 1.5 |
Head Parameters
| Parameter | Unit | Value |
|---|
| Head Heating Stage/Zone | Zone | 14 |
| Head Heating Power | kW | 30 |
Energy Consumption
| Parameter | Unit | Value |
|---|
| Total Machine Power | kW | 210 |
| Oil Motor Power | kW | 31 |
| Air Pressure | MPa | 0.6 - 1 |
| Compressed Air Volume | m³/min | 1.2 |
| Cooling Water Volume | L/min | 1000 |
Applications
This extrusion blow molding machine is ideal for manufacturing diverse hollow plastic products across multiple industries:
- Bottles and containers for packaging and storage
- Chemical barrels for industrial chemical storage and transportation
- Toolboxes and industrial components
- Automotive parts for vehicle assembly
- Toys and household goods
- Furniture parts including chair components and boards
Frequently Asked Questions
Q1: What is the brand and model number of this Extrusion Blow Molding Machine?
A1: The machine is branded as MEPER, and the model number is MP 100 FD.
Q2: Where is the MEPER MP 100 FD Extrusion Blow Molding Machine manufactured?
A2: This machine is manufactured in China.
Q3: What certifications does the MEPER MP 100 FD have?
A3: The machine is certified with CE and ISO9001:2008 standards.
Q4: What is the minimum order quantity and price for this machine?
A4: The minimum order quantity is 1 set, and the price is negotiable.
Q5: What are the packaging details and delivery time for the MEPER MP 100 FD?
A5: The machine is packaged in a standard export package, usually on a wooden pallet. A wooden case is also available as an optional packaging. The delivery time is approximately 25-35 working days.
Q6: What payment terms are accepted for purchasing the MEPER MP 100 FD?
A6: Payment can be made through L/C (Letter of Credit) or T/T (Telegraphic Transfer).
Q7: How many sets of the MEPER MP 100 FD Extrusion Blow Molding Machine can be supplied monthly?
A7: The supply ability is 100 sets per month.
