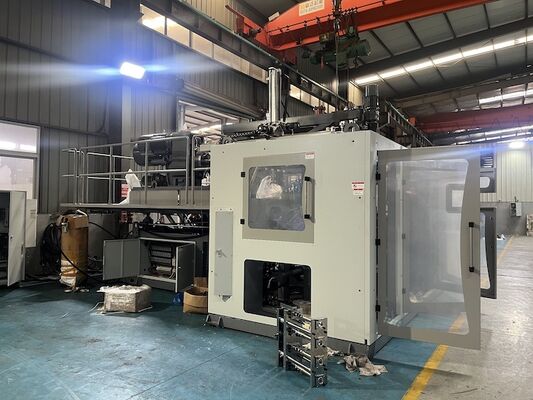

100L Capacity Extrusion Blow Molding Machine with Auto Deflashing and Double Station Design for Plastic Barrels and Tool Boxes

100L Capacity Extrusion Blow Molding Machine with Auto Deflashing and Double Station Design for Plastic Barrels and Tool Boxes
100L Capacity Extrusion Blow Molding Machine with Auto Deflashing and Double Station Design for Plastic Barrels and Tool Boxes

Large Image :  100L Capacity Extrusion Blow Molding Machine with Auto Deflashing and Double Station Design for Plastic Barrels and Tool Boxes

Product Details:
Brand Name: MEPER
Certification: CE/ISO9001:2008
Model Number: MP 100 FD
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiate
Packaging Details: Standard Export Package, Wooden Pallet(standard) Wooden Case(optional)
Delivery Time: 25-35 Work Days
Payment Terms: L/C,T/T
Supply Ability: 100 Sets Per Month
Contact Now
Detailed Product Description
Voltage Suitable: Customer Specified Cooling Water Pressure: 0.6–1 MPa
Auto Deflashing: Available Transport Package: Film Packing
Language Settings: Chinese And English Operation Panel Product Range: Plastic Open Top Drums & Barrels
Air Consumption: 1.2 M³/min Machine Weight: 15 Tons
Highlight:

100L Capacity Extrusion Blow Molding Machine

,

Auto Deflashing Plastic Blow Molding Machine

,

Double Station Design Blow Molding Equipment

100L Extrusion Molding Machine for Plastic Barrels and Tool Boxes
Product Overview
The MP plastic blow molding machine is engineered for manufacturing diverse hollow plastic products using high molecular materials. This advanced equipment handles product sizes ranging from 5 milliliters to 100 liters, making it suitable for various industrial applications.
Key Features
  • Variable frequency motor with adjustable screw rotation speeds
  • High slenderness ratio screw for processing multiple materials
  • Computer-controlled resistance heater for rapid, stable heating
  • Combined extrusion system for strip lines or double-layered structures
  • Toggle type mould clamping with linear guider and double station design
  • Improved hydraulic oil loop for power savings and stable performance
  • Computer-controlled operation with double proportional hydraulic control
  • Automatic fault alarm and data memory for 40 mould configurations
  • Three operation modes: Manual, Semi Auto, and Full Auto
  • Electric and mechanical safety devices on safety door
  • Straight cutting and oblique cutting blowing functions
Technical Specifications
Basic Specifications
ParameterUnitValue
Applicable Materials—PE, PP
Max Product VolumeL10
Number of HeadsSet3
Machine Dimensions (L×W×H)M3.5 × 5.6 × 2.65
Machine WeightTon15
Mould Clamping System
ParameterUnitValue
Mould Clamping ForcekN200
Platen Opening Strokemm240 - 640
Plate Strokemm750
Maximum Mould Size (W×H)mm700 × 420
Extrusion System
ParameterUnit100 mm75 mm25 mm
Screw Diametermm1007525
Screw Slenderness Ratio (L/D)—262422
Plasticizing Ability (HDPE)kg/h218753
Screw Heating Zoneszones432
Screw Heating PowerkW17.412.61.4
Screw Fan PowerkW0.560.28—
Extrusion Motor PowerkW55221.5
Head Heating System
ParameterUnitValue
Head Heating Zoneszones14
Head Heating PowerkW30
Energy Consumption
ParameterUnitValue
Total Machine PowerkW210
Oil Motor PowerkW31
Air PressureMPa0.6 - 1
Compression Air Volumem³/min1.2
Cooling Water VolumeL/min1000
Applications
  • Bottles and containers for packaging
  • Chemical barrels for storage and transportation
  • Toolboxes and industrial components
  • Automotive parts and components
  • Toys and household goods
  • Furniture components (chairs, boards)
Frequently Asked Questions
What is the brand and model number of this Extrusion Blow Molding Machine?
The machine is branded as MEPER and the model number is MP 100 FD.
Where is the MEPER MP 100 FD Extrusion Blow Molding Machine manufactured?
This machine is manufactured in China.
What certifications does the MEPER MP 100 FD have?
The machine is certified with CE and ISO9001:2008 standards.
What is the minimum order quantity and price terms for this machine?
The minimum order quantity is 1 set, and the price is negotiable.
What are the packaging details and delivery time for the MEPER MP 100 FD?
The machine is packaged in a standard export package with a wooden pallet as standard, and a wooden case is optional. The delivery time is between 25 to 35 work days.
What payment terms does MEPER accept for the MP 100 FD Extrusion Blow Molding Machine?
Payment terms accepted are L/C (Letter of Credit) and T/T (Telegraphic Transfer).
What is the supply ability of the MEPER MP 100 FD Extrusion Blow Molding Machine?
MEPER can supply up to 100 sets per month of this machine.
