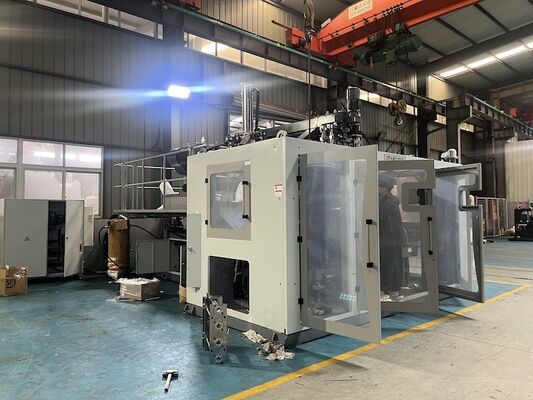

Product Overview
The MP plastic blow molding machine is engineered for manufacturing high molecular plastic hollow products with exceptional versatility and precision. Capable of producing items ranging from 5 milliliters to 100 liters, this machine serves diverse industries by creating bottles, pots, jars, barrels, toys, tool boxes, furniture components, and automotive parts. It supports multiple materials including PE, PP, PVC, PA, PC, PS, and EVA, ensuring excellent molding quality across various plastic types.
Key Features
- Variable frequency motor with adjustable screw rotation speed for precise blowing control
- High slenderness ratio screw design for strong plasticizing capability and material versatility
- Computer-controlled resistance heater for rapid, stable, and uniform barrel heating
- Combined extrusion system supporting multi-layer structures and visible strip lines
- Toggle type mold clamping with linear guide system and double-station design
- Improved hydraulic oil circuit for energy efficiency and stable performance
- Removable portable oil tank for simplified maintenance and reduced downtime
- Computer-controlled operation with double proportional hydraulic control
- Automatic fault alarm system and data storage for up to 40 mold sets
- Three operational modes: Manual, Semi-Auto, and Full Auto
- Dual safety devices (electric and mechanical) on safety door
- Straight cutting and oblique cutting blowing functions
Technical Specifications
Basic Specifications
| Parameter |
Unit |
Value |
| Applicable Materials |
N/A |
PE, PP |
| Max Product Volume |
L |
10 |
| Number of Heads |
Set |
3 |
| Machine Dimension (L×W×H) |
m |
3.5 × 5.6 × 2.65 |
| Machine Weight |
Ton |
15 |
Mould Clamping System
| Parameter |
Unit |
Value |
| Mould Clamping Force |
KN |
200 |
| Platen Opening Strokes |
mm |
240-640 |
| Plate Stroke |
mm |
750 |
| Max Mould Size (W×H) |
mm |
700 × 420 |
Extrusion System
| Parameter |
Unit |
100mm |
75mm (1) |
75mm (2) |
25mm (1) |
25mm (2) |
| Screw Diameter |
mm |
100 |
75 |
75 |
25 |
25 |
| Screw Slenderness Ratio (L/D) |
– |
26 |
24 |
24 |
22 |
22 |
| Plasticizing Ability (HDPE) |
kg/h |
218 |
75 |
75 |
3 |
3 |
| Screw Heating Stage/Zone |
Zone |
4 |
3 |
3 |
2 |
2 |
| Screw Heating Power |
kW |
17.4 |
12.6 |
12.6 |
1.4 |
1.4 |
| Screw Fan Power |
kW |
0.56 |
0.28 |
0.28 |
– |
– |
| Extrusion Motor Power |
kW |
55 |
22 |
22 |
1.5 |
1.5 |
Head Specifications
| Parameter |
Unit |
Value |
| Head Heating Stage/Zone |
Zone |
14 |
| Head Heating Power |
kW |
30 |
Energy Consumption
| Parameter |
Unit |
Value |
| Total Machine Power |
kW |
210 |
| Oil Motor Power |
kW |
31 |
| Air Pressure |
MPa |
0.6 - 1 |
| Compressed Air Volume |
m³/min |
1.2 |
| Cooling Water Volume |
L/min |
1000 |
Applications
This versatile blow molding machine is ideal for manufacturing diverse hollow plastic products across multiple industries. Applications include:
- Bottles and containers for packaging
- Chemical barrels for industrial storage
- Toolboxes and industrial components
- Automotive parts and components
- Toys and household goods
- Furniture parts including chair frames and boards
Frequently Asked Questions
What is the brand and model number of the Extrusion Blow Molding Machine?
The machine is branded MEPER and the model number is MP 100 FD.
Where is the Extrusion Blow Molding Machine manufactured?
It is manufactured in China.
What certifications does the MP 100 FD machine have?
The machine is certified with CE and ISO9001:2008.
What is the minimum order quantity and price for the Extrusion Blow Molding Machine?
The minimum order quantity is 1 set, and the price is negotiable.
What are the packaging details and estimated delivery time for the machine?
The machine is packed in a standard export package with a wooden pallet as standard. A wooden case is optional. The delivery time is approximately 25-35 work days.
What payment terms are accepted for purchasing the MP 100 FD Extrusion Blow Molding Machine?
Payment terms accepted include L/C (Letter of Credit) and T/T (Telegraphic Transfer).
What is the supply ability of the MEPER MP 100 FD Extrusion Blow Molding Machine?
The supply ability is 100 sets per month.
