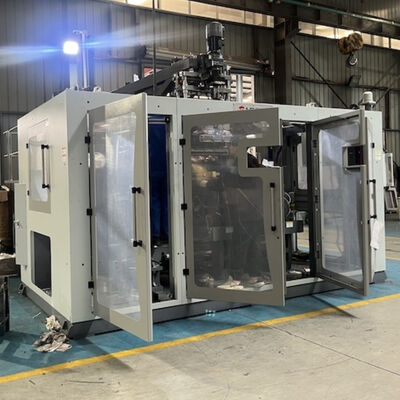

Extrusion Molding Machine with Variable Frequency Motor Control
The MP plastic blow molding machine is engineered for manufacturing diverse plastic hollow products from high molecular materials. It efficiently processes items ranging from 5 milliliters to 100 liters, accommodating various production requirements across multiple industries.
Versatile Production Capabilities
This machine produces numerous hollow product types including bottles, pots, jars, barrels, toys, toolboxes, bed boards, desk boards, chairs, and automotive components. Its broad application range makes it ideal for industries requiring durable, precisely molded plastic parts.
Material Compatibility
Supports processing multiple materials including PE, PP, PVC, PA, PC, PS, and EVA, ensuring excellent molding processes and delivering high-quality, reliable results for every manufactured product.
Key Features
- Variable frequency motor for adjustable screw rotation speed during blowing process
- High slenderness ratio screw design for wide material processing range
- Strong plasticizing capabilities with high production efficiency and low energy consumption
- Computer-controlled resistance heater for rapid, stable, and uniform heating
- Combined extrusion system for producing products with visible strip lines or double-layer structures
- Toggle mechanism with linear guider for double-station mold clamping
- Improved hydraulic oil circuit for power savings and stable performance
- Removable and mobile oil tank for convenient installation and maintenance
- Computer control system with double proportional hydraulic control
- Automatic fault alarms and memory storage for up to 40 mold sets
- Three operational modes: Manual, Semi Auto, and Full Auto
- Safety door with electrical and mechanical safety devices
- Straight cutting and oblique cutting blowing functions
Technical Specifications
Basic Specifications
| Parameter |
Value |
| Applicable Materials |
PE, PP |
| Max Product Volume |
10 L |
| Number of Heads |
3 SET |
| Machine Dimension (L x W x H) |
3.5 x 5.6 x 2.65 m |
| Machine Weight |
15 TON |
Mold Clamping System
| Parameter |
Value |
| Mold Clamping Force |
200 KN |
| Platen Opening Strokes |
240 - 640 mm |
| Plate Stroke |
750 mm |
| Max Mold Sizes (W x H) |
700 x 420 mm |
Extrusion System Specifications
| Parameter |
Unit |
100 mm |
75 mm (two types) |
25 mm (two types) |
| Screw Diameter |
mm |
100 |
75 / 75 |
25 / 25 |
| Screw Slenderness Ratio (L/D) |
— |
26 |
24 / 24 |
22 / 22 |
| Plasticizing Ability (HDPE) |
kg/h |
218 |
75 / 75 |
3 / 3 |
| Screw Heating Stage/Zone |
Zone |
4 |
3 / 3 |
2 / 2 |
| Screw Heating Power |
kW |
17.4 |
12.6 / 12.6 |
1.4 / 1.4 |
| Screw Fan Power |
kW |
0.56 |
0.28 / 0.28 |
— / — |
| Extrusion Motor Power |
kW |
55 |
22 / 22 |
1.5 / 1.5 |
Energy Consumption
| Parameter |
Unit |
Value |
| Total Machine Power |
kW |
210 |
| Oil Motor Power |
kW |
31 |
| Air Pressure |
MPa |
0.6 - 1 |
| Compression Air Volume |
M³/min |
1.2 |
| Cooling Water Volume |
L/min |
1000 |
Applications
This extrusion molding machine is ideal for manufacturing diverse hollow plastic items across multiple industries:
- Bottles and containers of various shapes and sizes
- Chemical barrels for safe storage and transport
- Durable toolboxes and industrial components
- Automotive parts for vehicle assembly
- Toys and household goods
- Furniture elements including chair components and boards
Frequently Asked Questions
What is the brand and model number of the Extrusion Blow Molding Machine?
The machine is branded MEPER, and the model number is MP 100 FD.
Where is the Extrusion Blow Molding Machine manufactured?
This machine is manufactured in China.
What certifications does the MP 100 FD machine have?
The machine is certified with CE and ISO9001:2008 standards.
What is the minimum order quantity and price negotiation terms?
The minimum order quantity is 1 set, and the price is negotiable based on order details.
What are the packaging details and delivery time for the machine?
The machine is packaged using a standard export package with a wooden pallet as standard and an optional wooden case. The delivery time is typically 25-35 work days.
What payment terms are accepted for purchasing the MP 100 FD Extrusion Blow Molding Machine?
Payment can be made via L/C (Letter of Credit) or T/T (Telegraphic Transfer).
What is the supply ability of the MEPER MP 100 FD Extrusion Blow Molding Machine?
The supply ability is 100 sets per month.
